Description
FullTouch® Expressive Keybed Technology
Dual Analog Filter

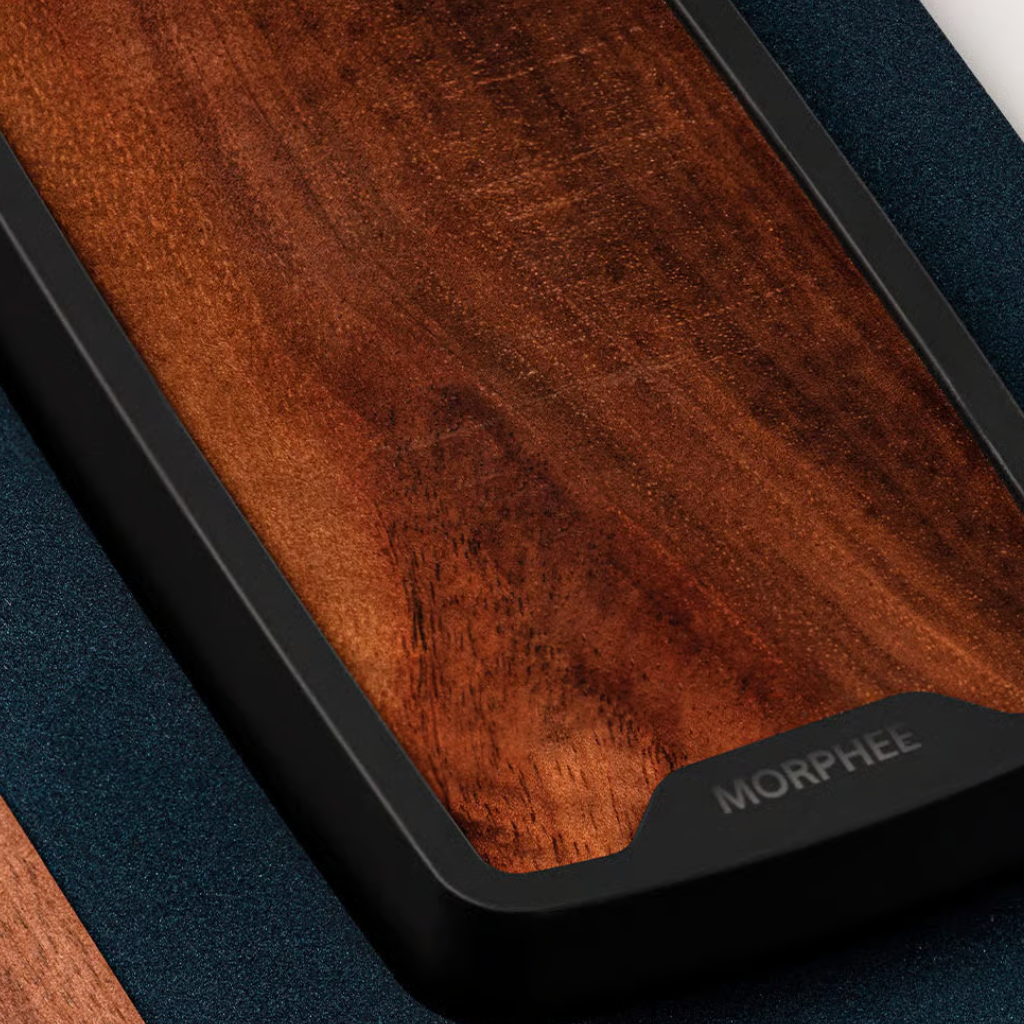

3D Morphée Controller & Ribbon

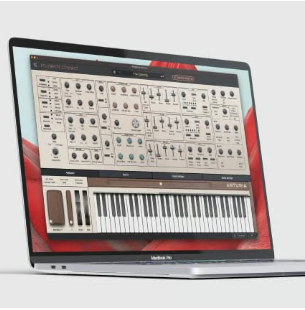

Seamless DAW integration
Features
Specifications
Synthesis Type:
Polyphonic Analog Morphing Synthesizer
Voices / Polyphony:
12 Analog Voices (Mono, Unison, Poly Modes)
Keyboard:
61-Key FullTouch® MPE Keybed with Polyphonic Aftertouch

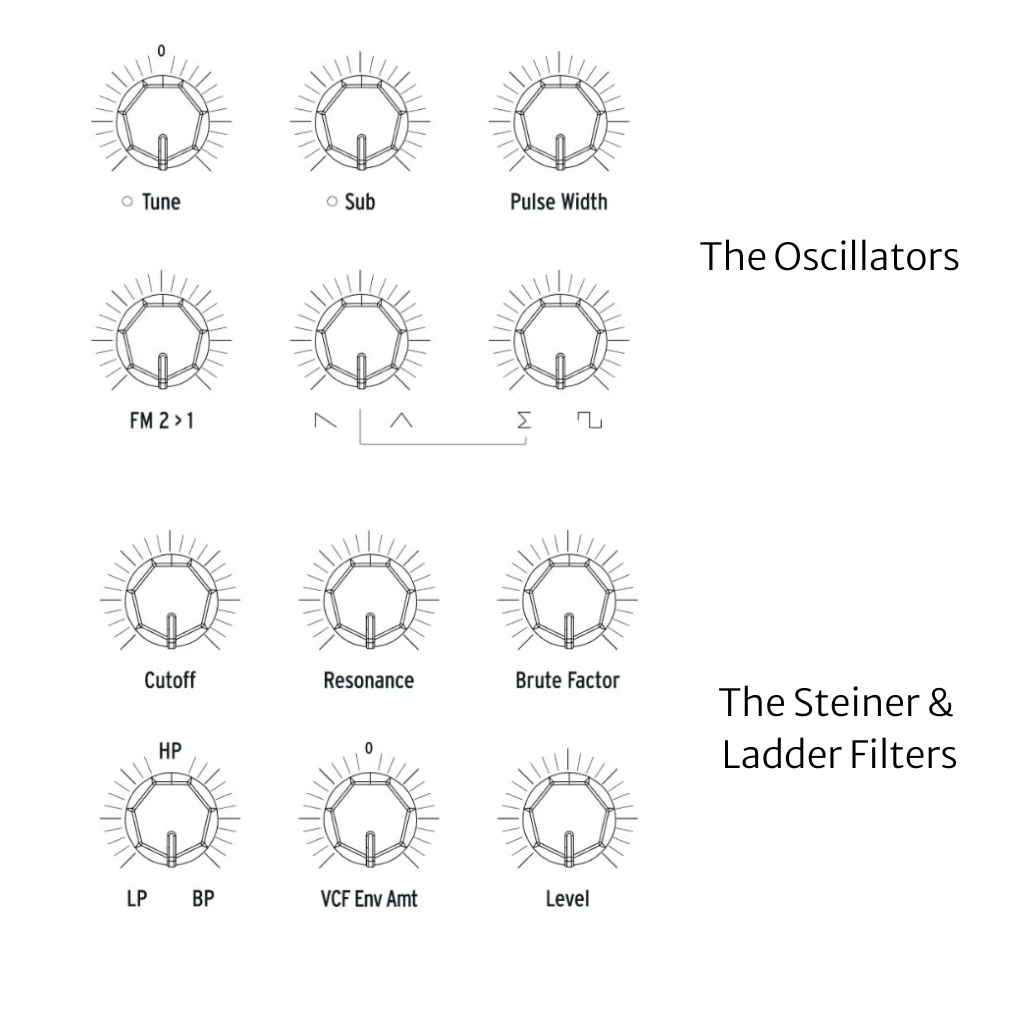

Oscillators:
2x Analog VCOs per Voice (Saw, Triangle + Metalizer, Square + PWM, Sub)
Filters:
1x Steiner-Parker (12dB/oct), 1x Ladder Filter (24dB/oct)
Envelopes:
2x ADSR, 1x DADSR (Loopable)
LFOs:
3x LFOs with Waveform Shaping and Sync Options
Modulation Matrix:
12 x 32 Matrix (Up to 64 Destination Routings)
Effects Engine:
3x Stereo Digital Effects Slots (Modulation, Delay, Reverb, Distortion)
Sequencer / Arpeggiator:
64-Step Polyphonic Sequencer, Arpeggiator, and Motion Recorder

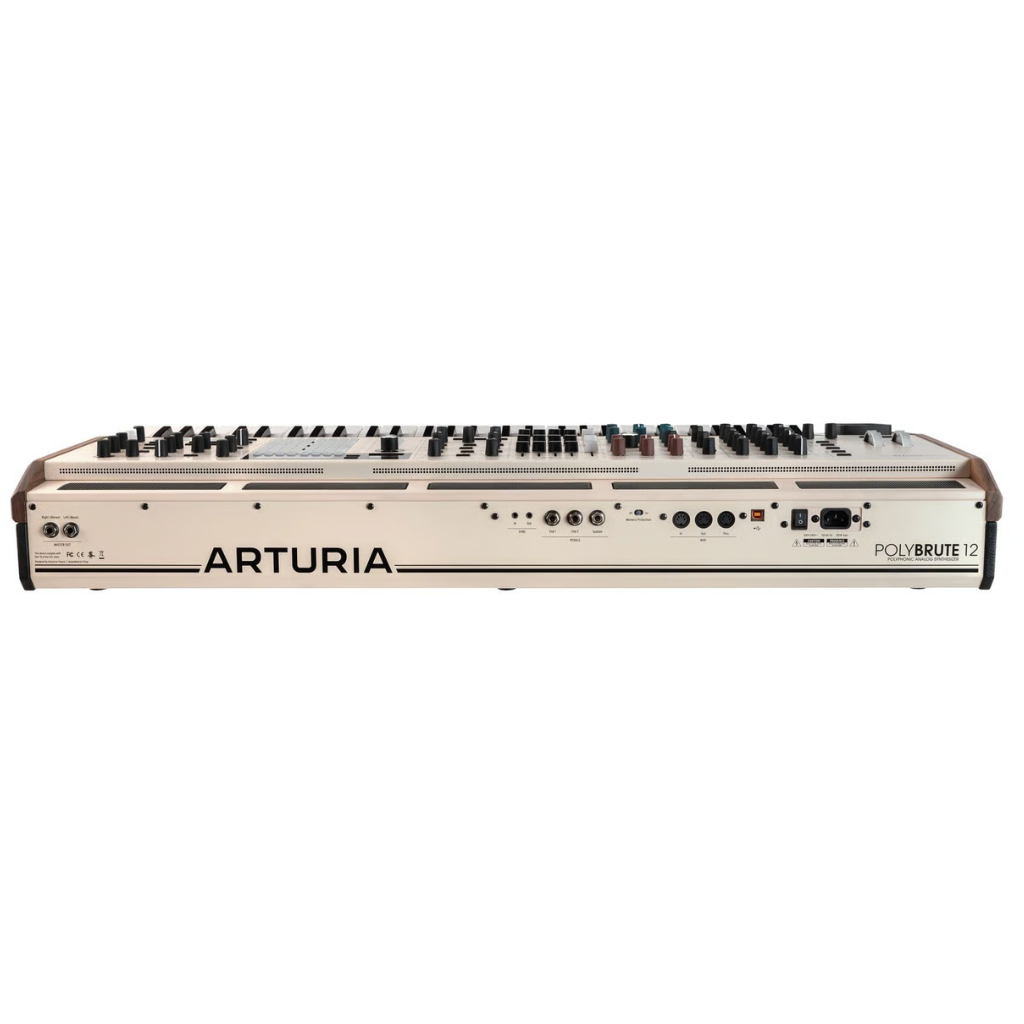

Audio Outputs:
2x 1/4" TRS Balanced Master Outputs, 1/4" Headphone Output
Control & Sync I/O:
5-Pin MIDI In/Out/Thru, USB-B MIDI, Clock I/O, Expression/Sustain Inputs
Dimensions (W x D x H):
972 x 380 x 157 mm (38.27" x 14.96" x 6.18")
Weight:
22.8 kg (50.27 lbs)
