Overview

Your Entry Into the World of Vinyl

Over 60 Years of Analog Excellence

Features
Specifications

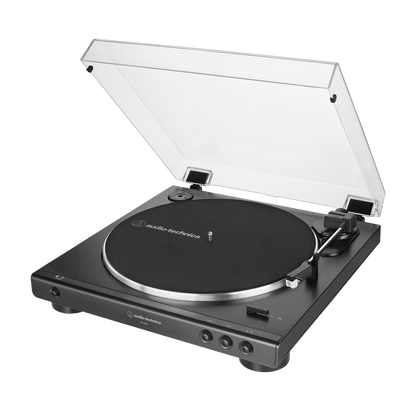

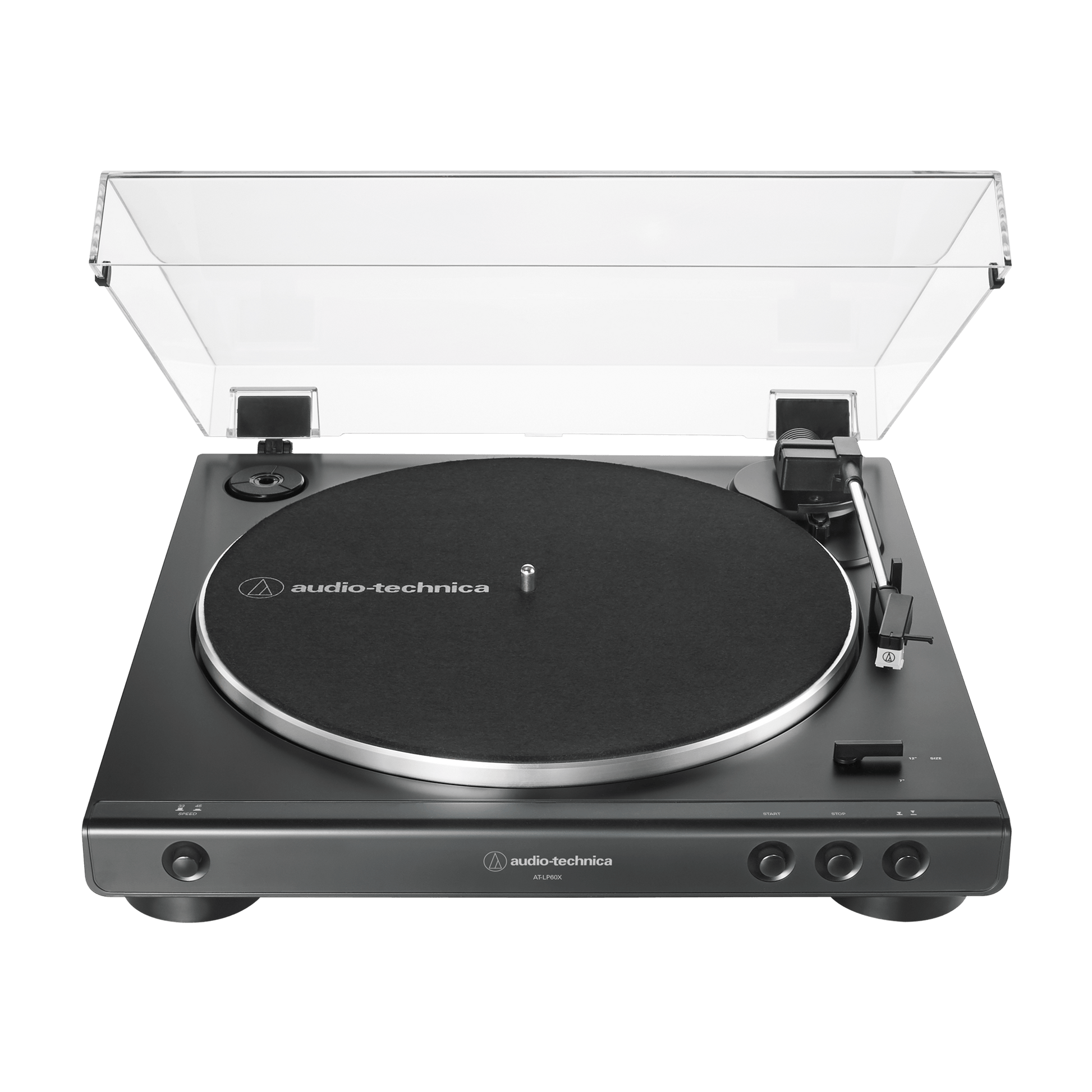

Type :
Belt drive turntable, fully automatic
Motor:
DC servo-controlled
Drive Method:
Belt-drive
Speeds :
33-1/3 RPM, 45 RPM
Turntable Platter:
Aluminum
Wow and Flutter:
Less than 0.25% (WTD) @ 3 kHz
Signal-to-Noise Ratio :
>50 dB (DIN-B)
Output Level :
Pre-amp “PHONO”: 2.5 mV nominal at 1 kHz, 5 cm/sec Pre-amp “LINE” 150 mV nominal at 1 kHz, 5 cm/sec
Phono Pre-Amp Gain :
36 dB nominal, RIAA equalized
Power Supply Requirements :
100 to 240 V, 50/60 Hz, 0.6 A Max.
Dimensions :
359.5 mm (14.15") W x 97.5 mm (3.84") H x 373.3 mm (14.70") D
Weight :
2.6 kg (5.73 lbs)

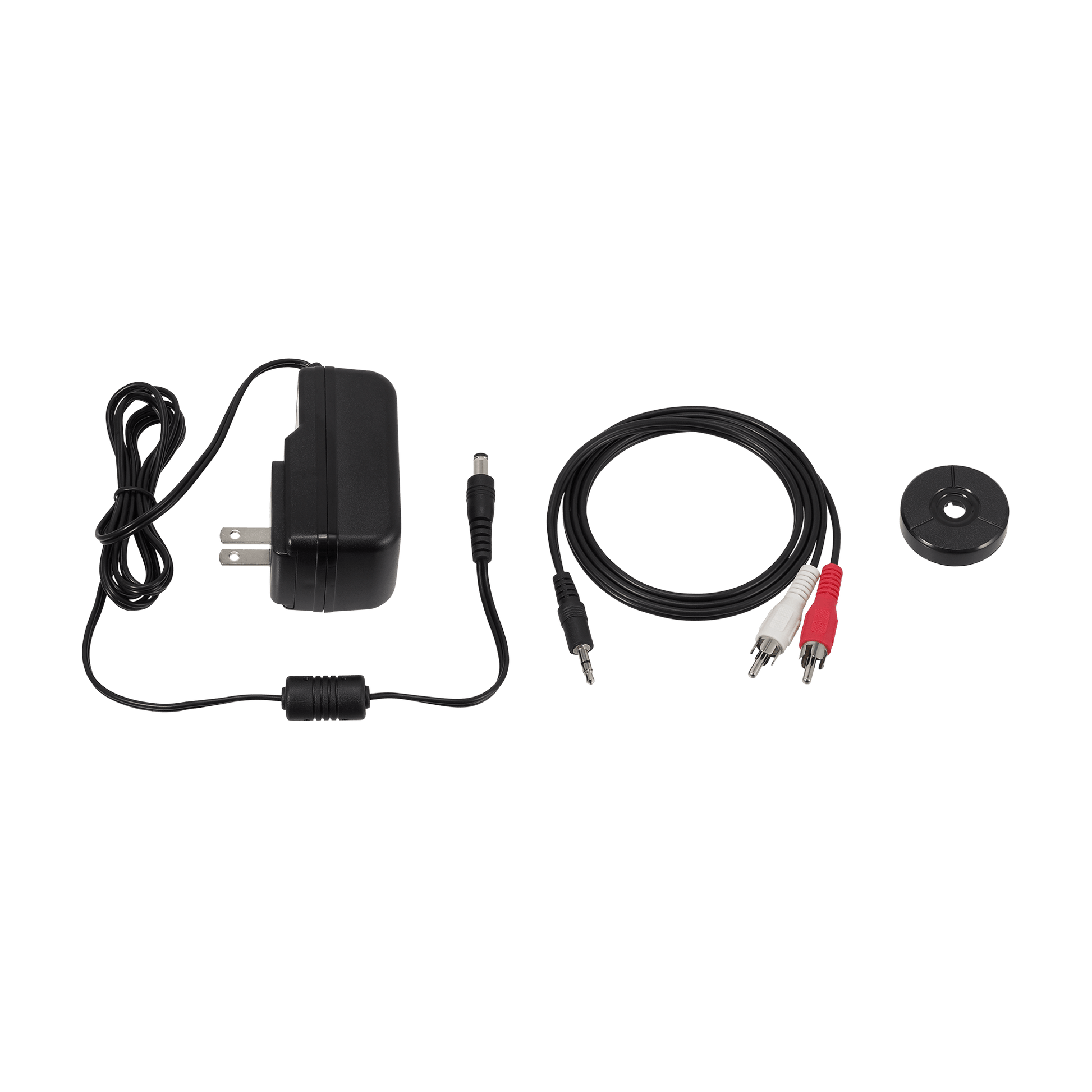

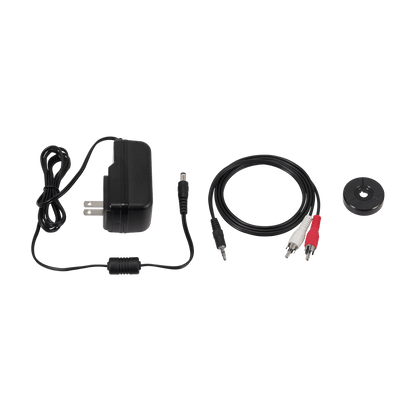

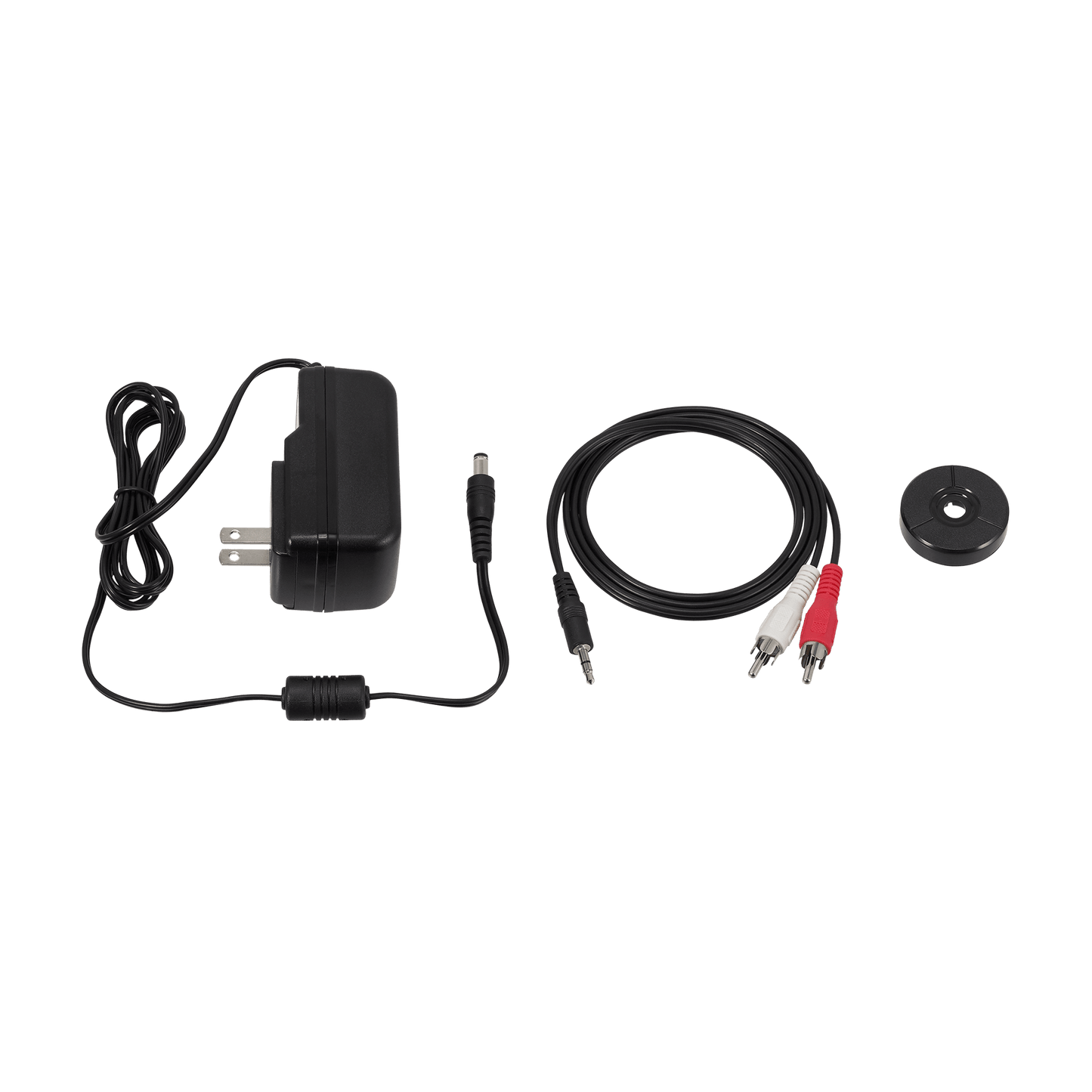

Accessories Included:
Dust cover, Felt mat, Platter (with drive belt), 45 RPM adapter, RCA audio cable (approx. 1.2 m (3.9')), AC adapter (approx. 1.5 m (4.9'))
AC Adapter:
12 V, 2 A
Replacement Stylus :
ATN3600LC
