Specifications

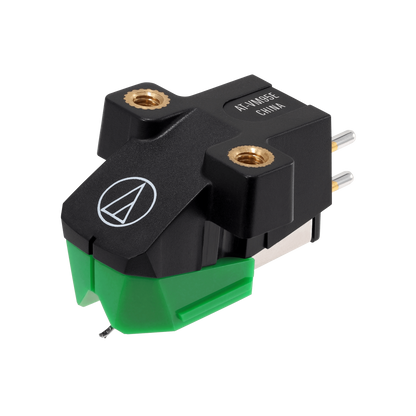

Type:

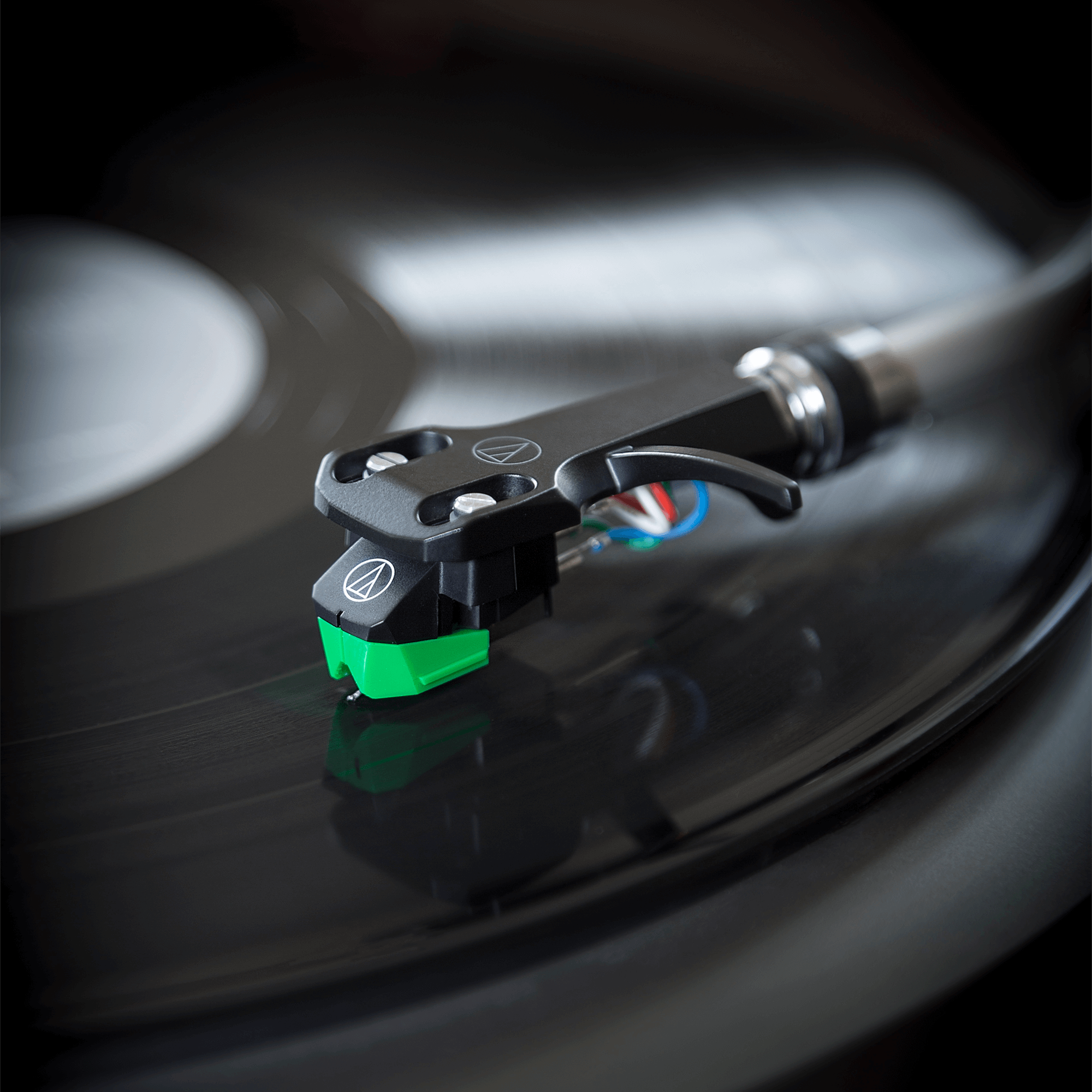

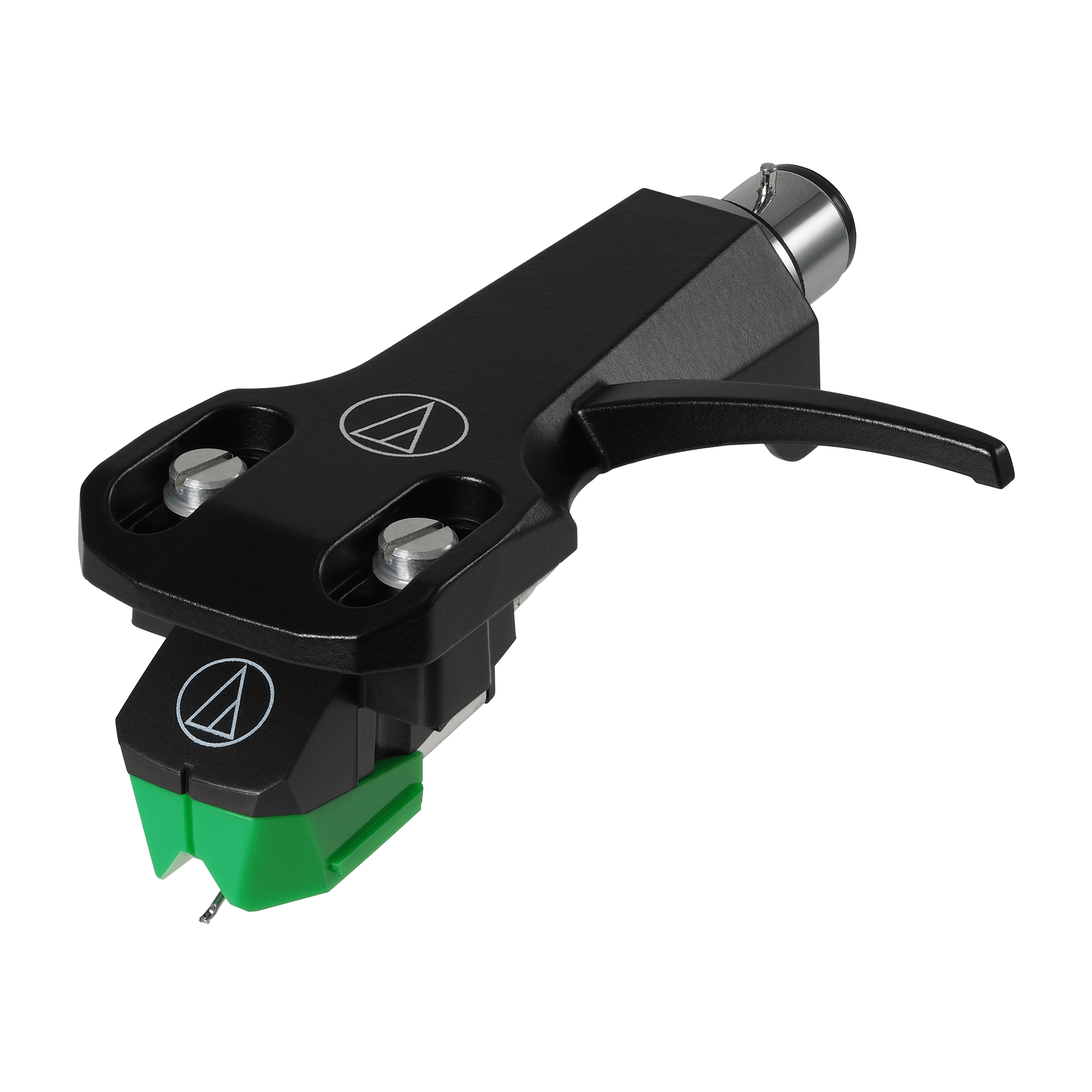

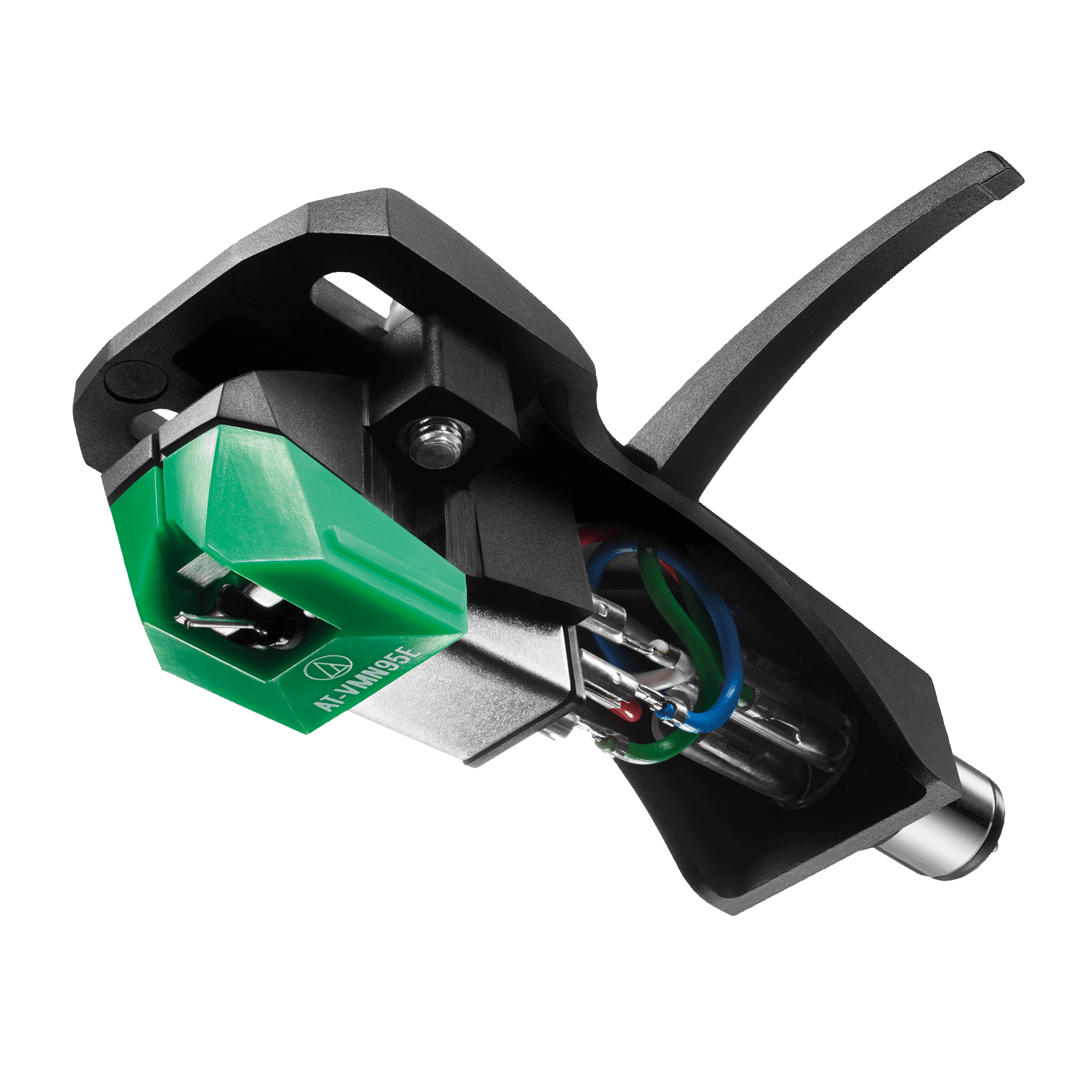

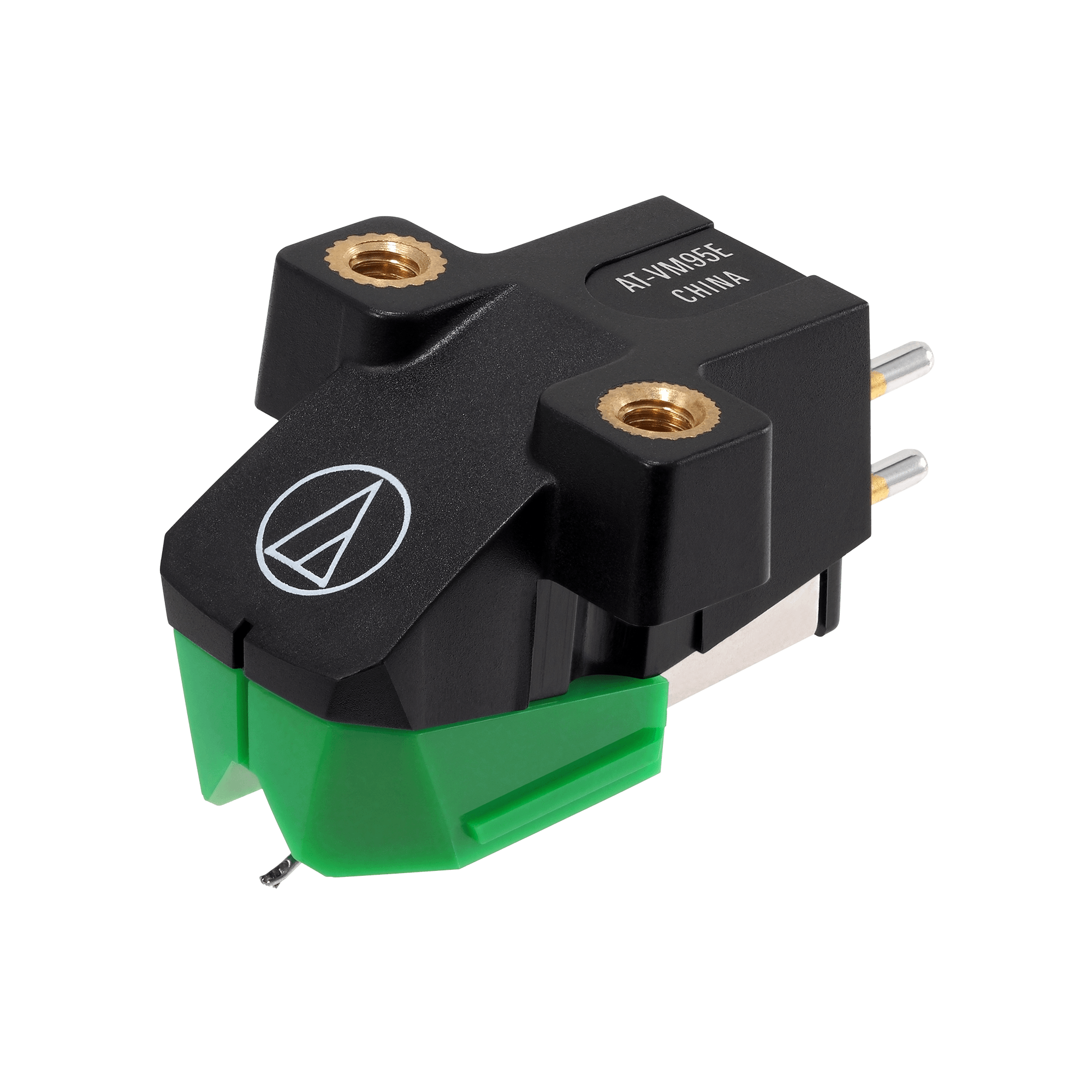

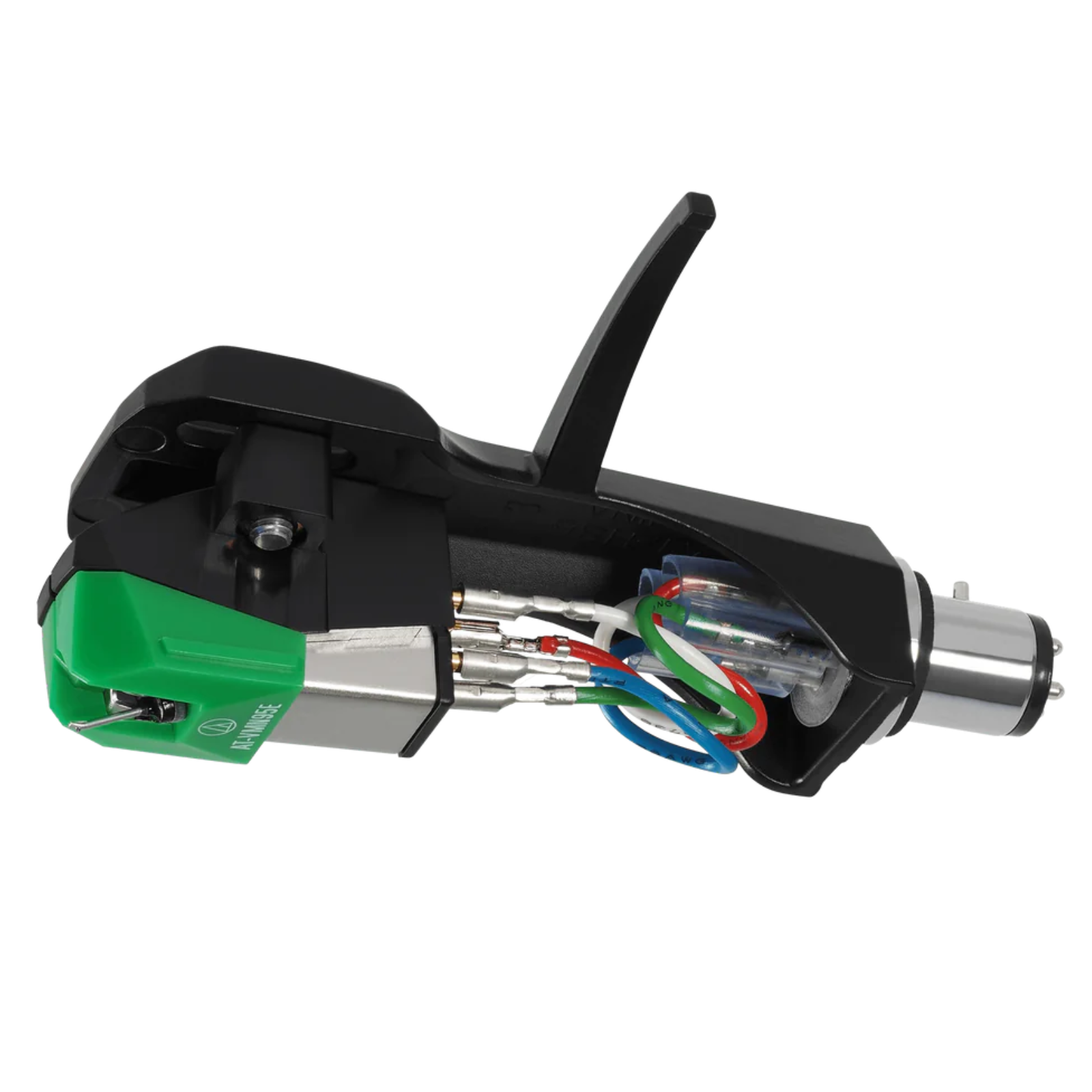

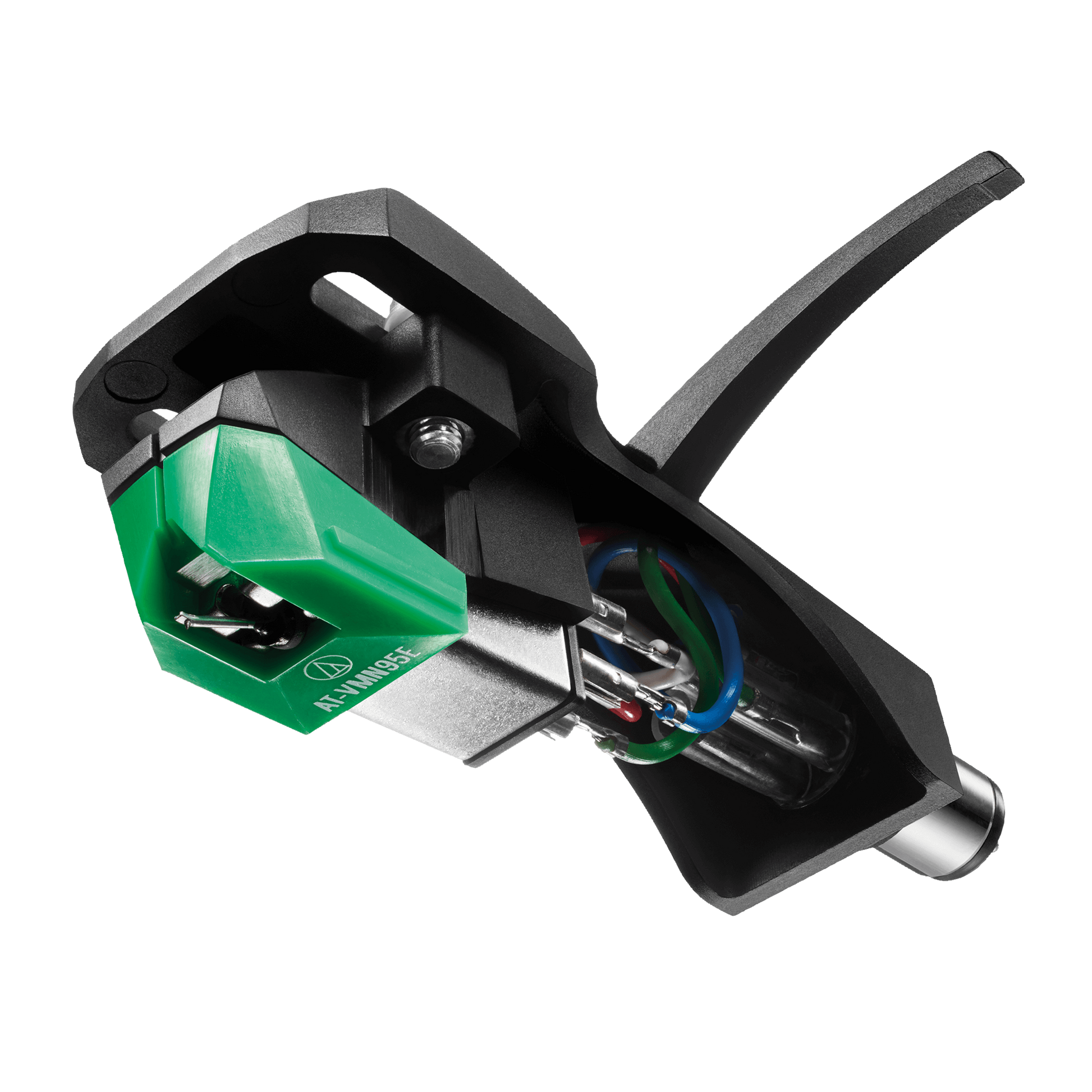

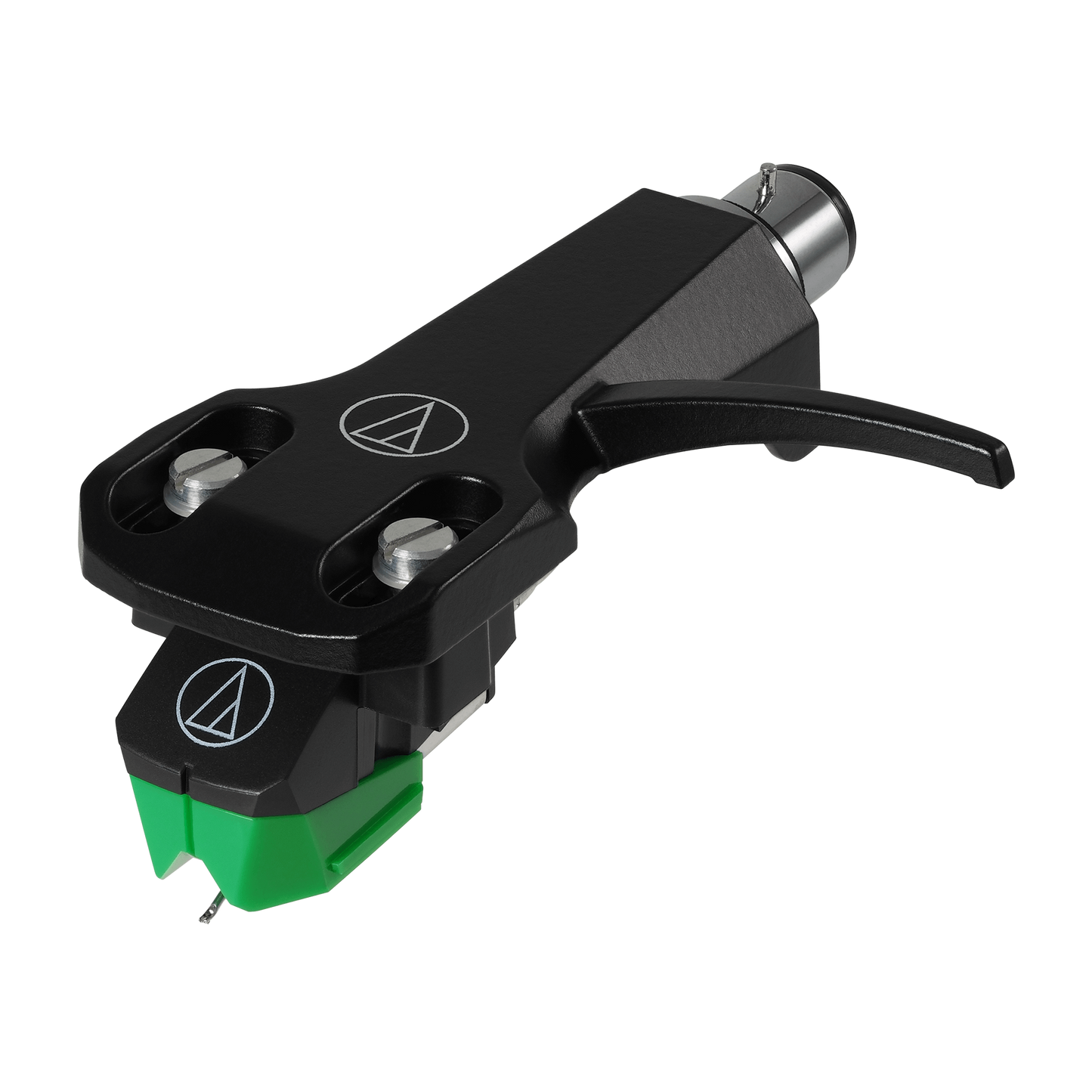

VM Stereo Dual Magnet Cartridge with Headshell Combo
Mounting:
1/2" Centers (Universal Half-Inch Mount)
Frequency Response:
20 Hz to 22,000 Hz
Channel Separation:
20 dB (at 1 kHz)
Output Channel Balance:
2.0 dB (at 1 kHz)
Output Voltage:
4.0 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle:
23°
Vertical Tracking Force Range:
1.8 to 2.2 grams (2.0g Recommended)
Stylus Construction:
Bonded Round Shank
Cantilever Material:
Aluminum Pipe
Coil Impedance / DC Resistance:
3.3 kΩ / 485 Ω
Recommended Load Impedance:
47,000 Ω
Recommended Load Capacitance:
100 to 200 pF

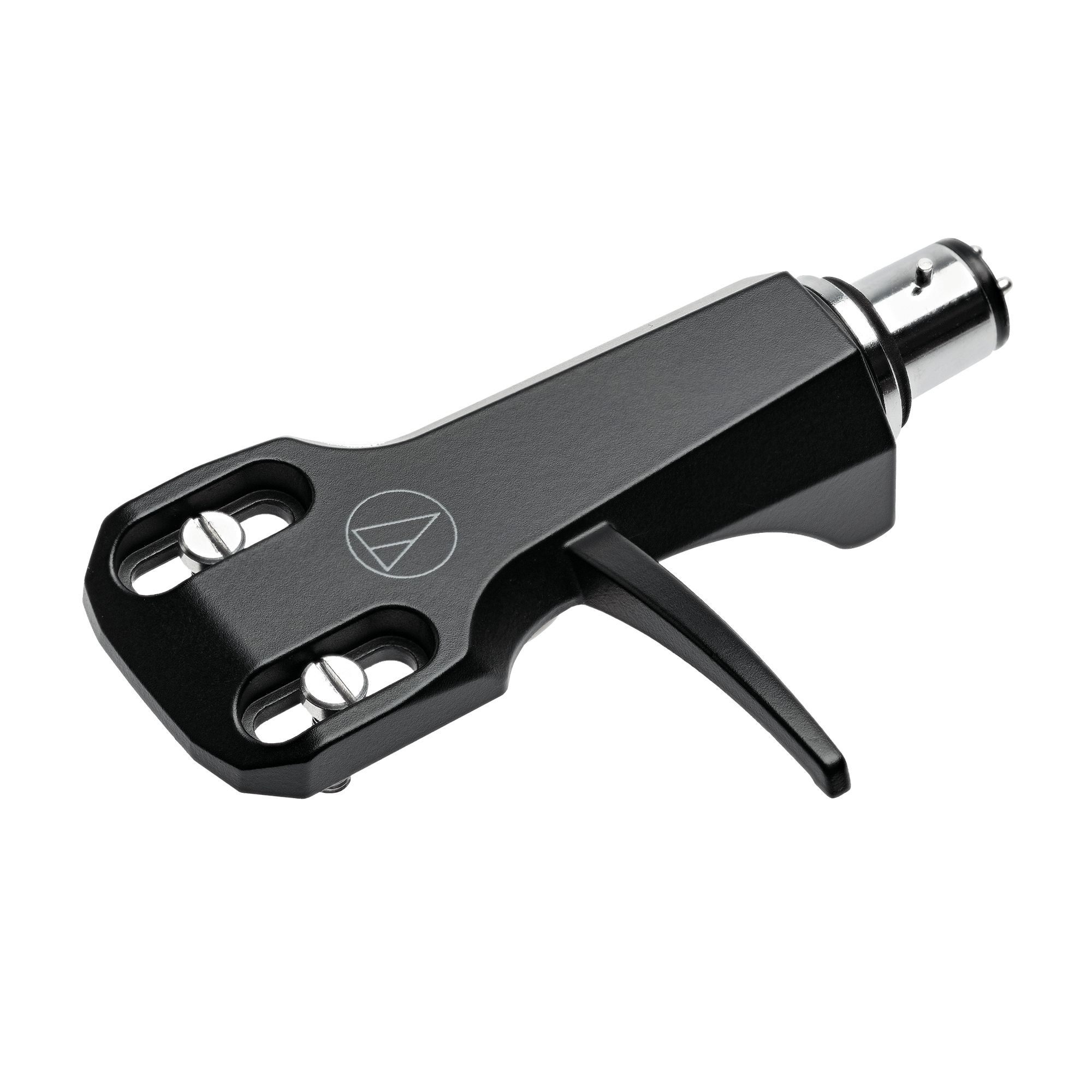

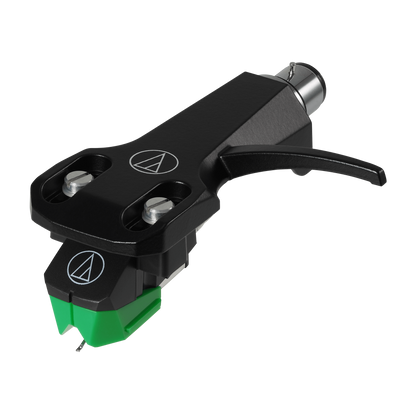

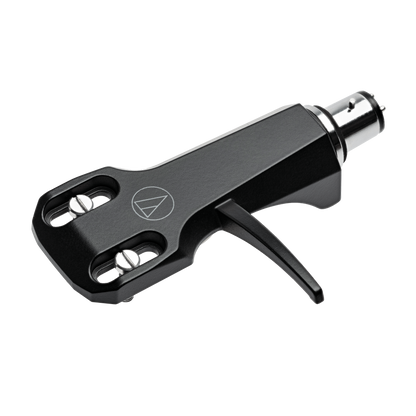

Headshell Model:
AT-HS6BK (Black Lightweight Aluminum)
Overhang / Connector:
4-pin aluminum connector with gold-plated lead wires
Replacement Stylus Model:
AT-VMN95E
Total Weight (Cartridge + Headshell):
15.5 g
