Product Highlights
Product Features
Specifications
Product Model:

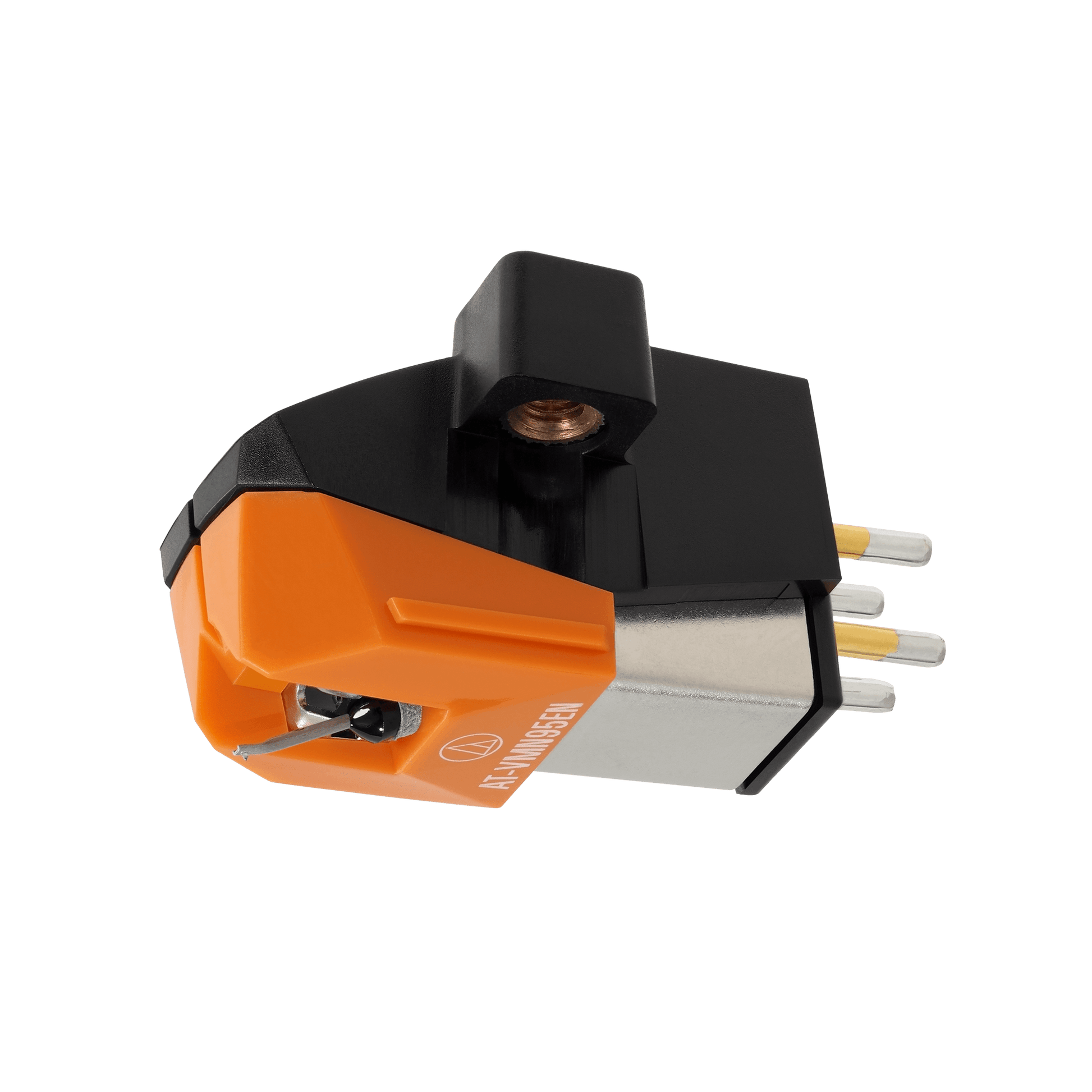

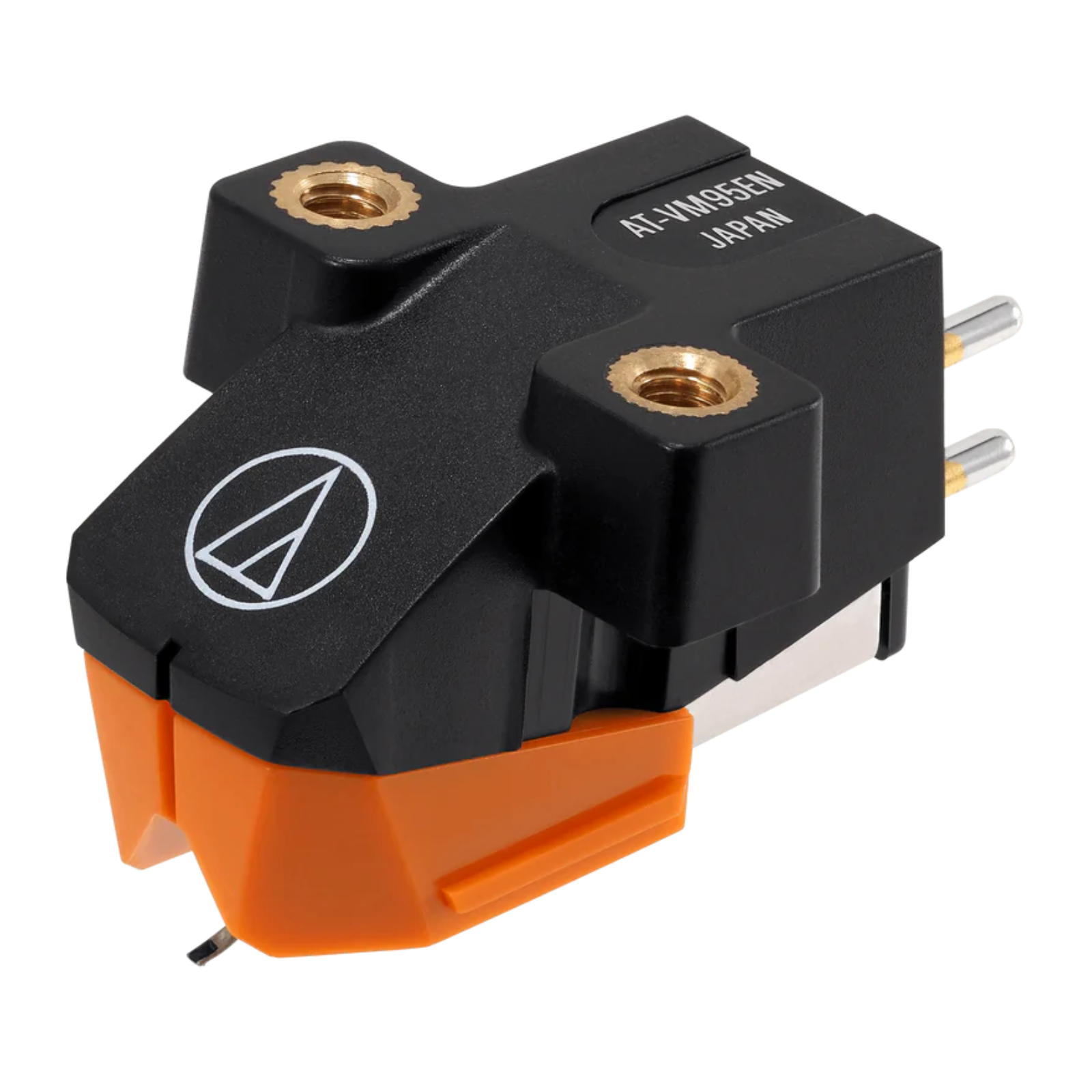

Audio-Technica AT-VM95EN
Cartridge Type:

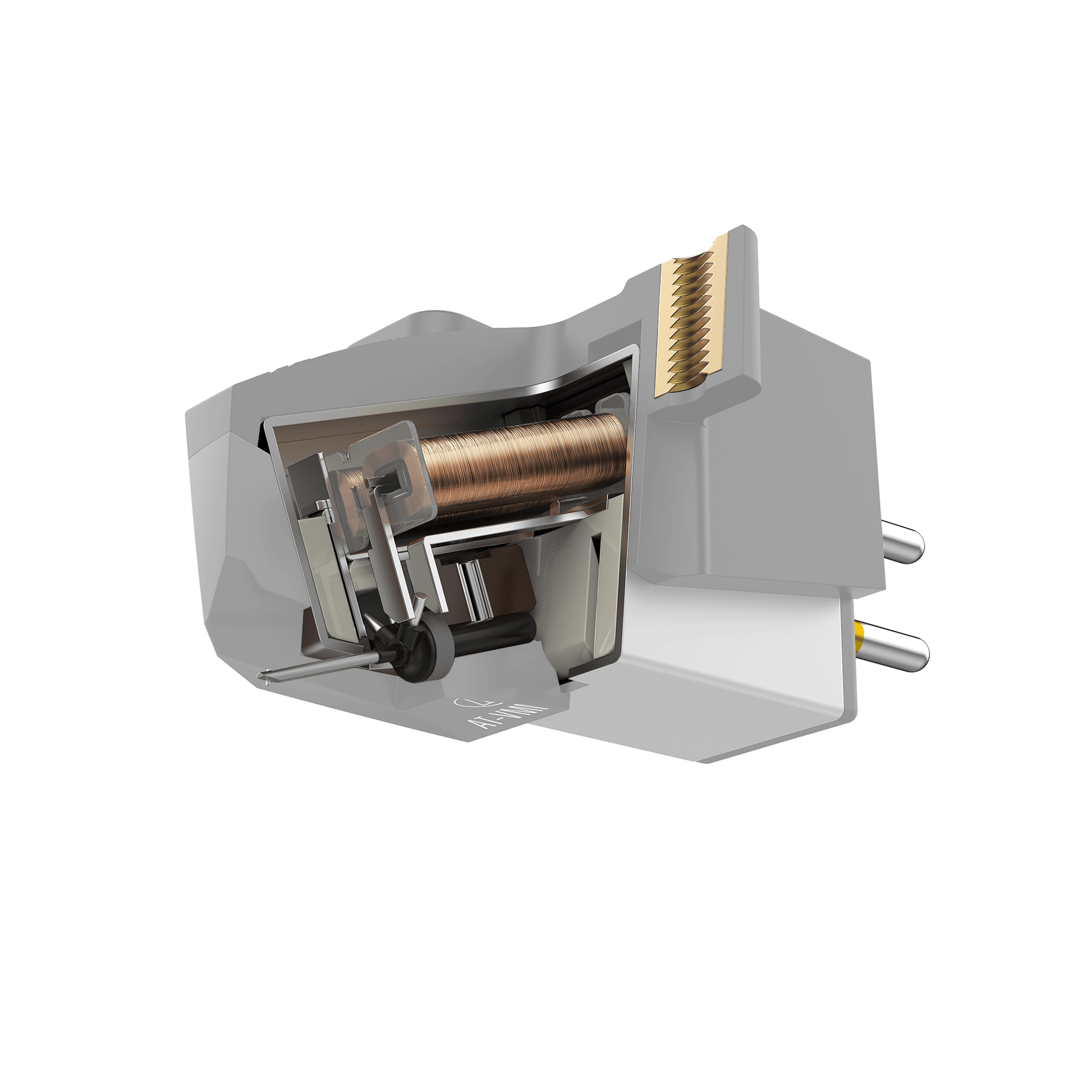

VM Stereo Dual Magnet Cartridge
Mounting Configuration:
1/2 inch Centers (Universal Half-Inch Mount with Threaded Inserts)
Frequency Response:
20 Hz to 23,000 Hz
Channel Separation:
22 dB (at 1 kHz)
Output Channel Balance:
2.0 dB (at 1 kHz)
Output Voltage:
3.5 mV (at 1 kHz, 5 cm/sec)
Vertical Tracking Angle:
23 degrees
Vertical Tracking Force Range:
1.8 to 2.2 grams (2.0g Recommended)
Stylus Construction:
Nude Round Shank
Stylus Shape & Dimensions:
Elliptical (0.3 x 0.7 mil)
Cantilever Material:
Rigid Aluminum Pipe
Coil Impedance / DC Resistance:
3.3 k ohms / 485 ohms
Recommended Load Impedance:
47,000 ohms
Recommended Load Capacitance:
100 to 200 pF
Coil Inductance:
550 mH (at 1 kHz)
Replacement Stylus Model:
AT-VMN95EN (Signature Amber/Yellow Finish)
Cartridge Weight:
6.1 grams
Included Accessories:

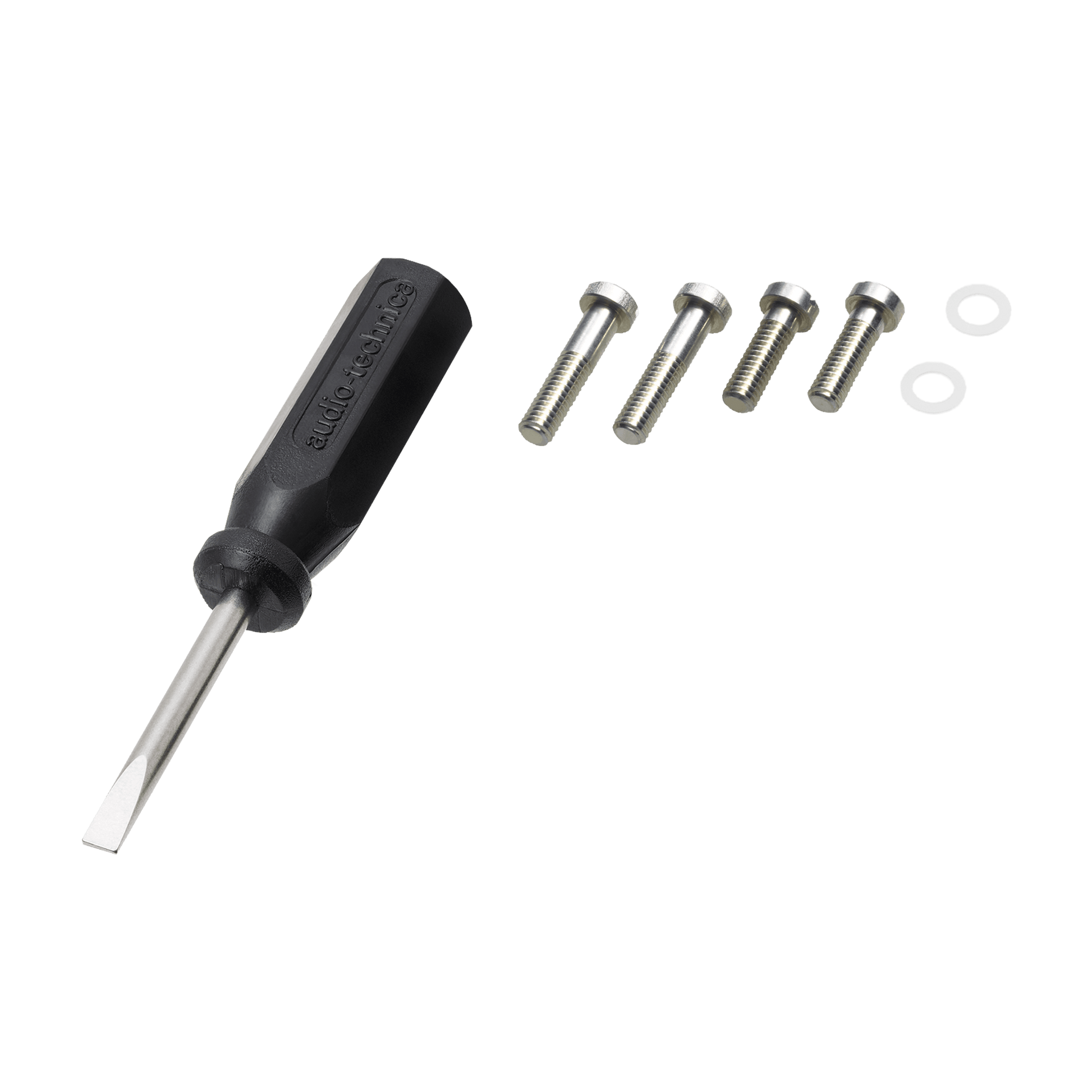

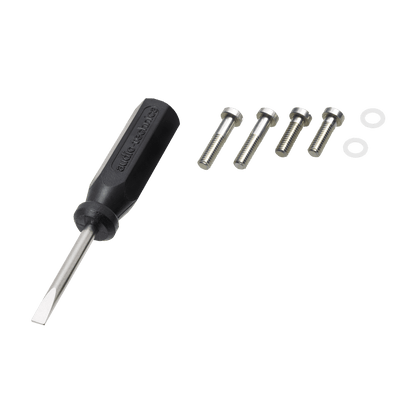

2x 11mm Installation Screws, 2x 8mm Installation Screws, 2x Washers, 1x Non-Magnetic Screwdriver
