Description
All-New Acoustic Designs
Lightweight, Efficient Class D Amplification
Features
Specifications
Frequency Range (-10dB):
67 Hz - 20 kHz (4π)
Frequency Range (-3 dB):
65 Hz - 15 kHz (4π)
Coverage Pattern:
105° x 60°
Transducer Impedence:
Rated: Woofer: 4 Ω Tweeter: 8 Ω
Max SPL:
126 dB
Power Rating:
2000W peak / 1000W RMS
Cooling:
Natural Convection No Fan
Crossover Frequency:
1930 Hz

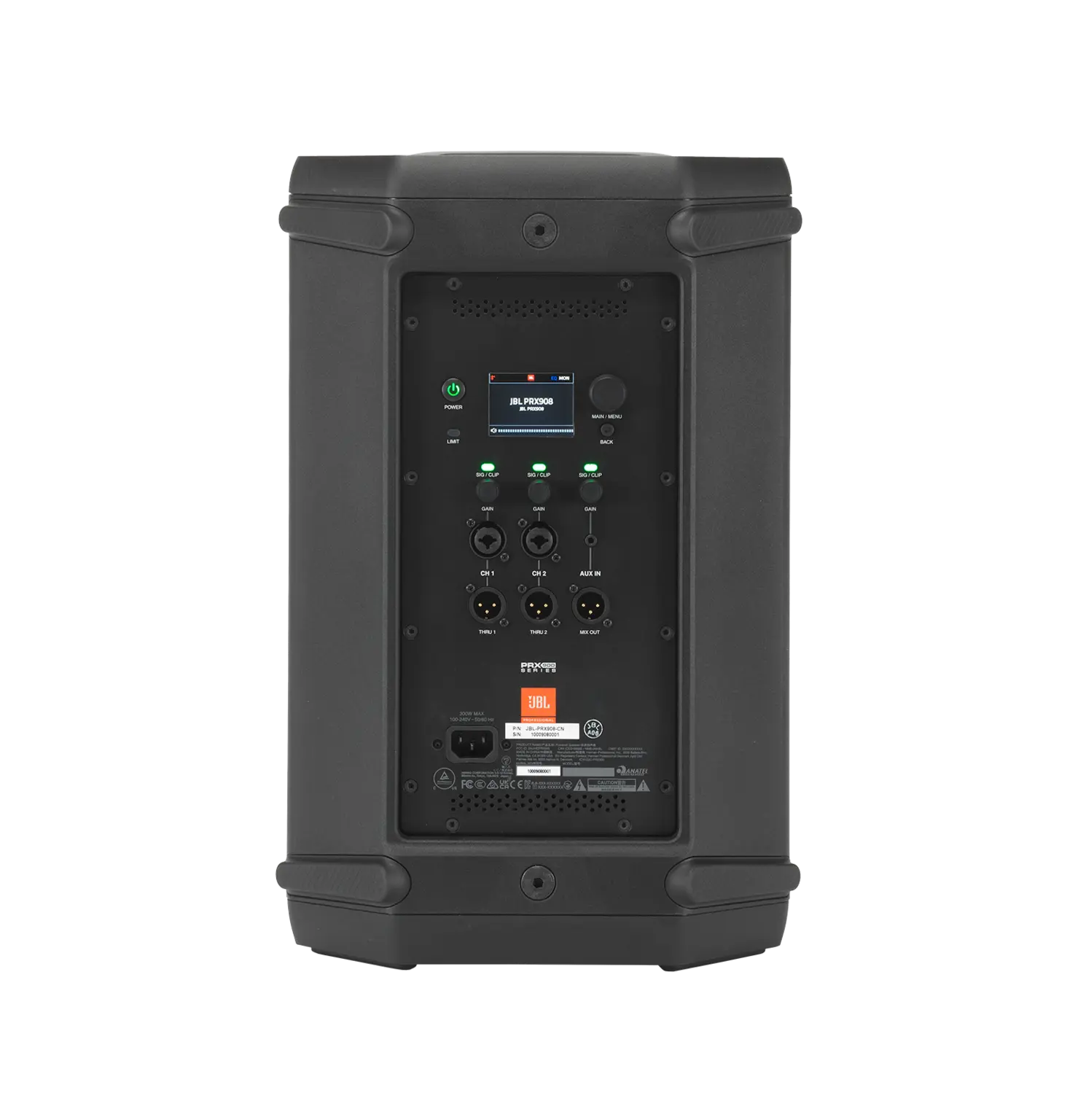

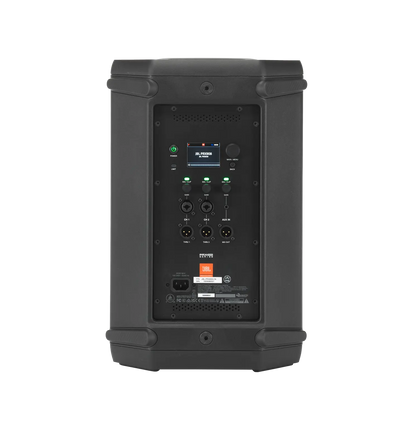

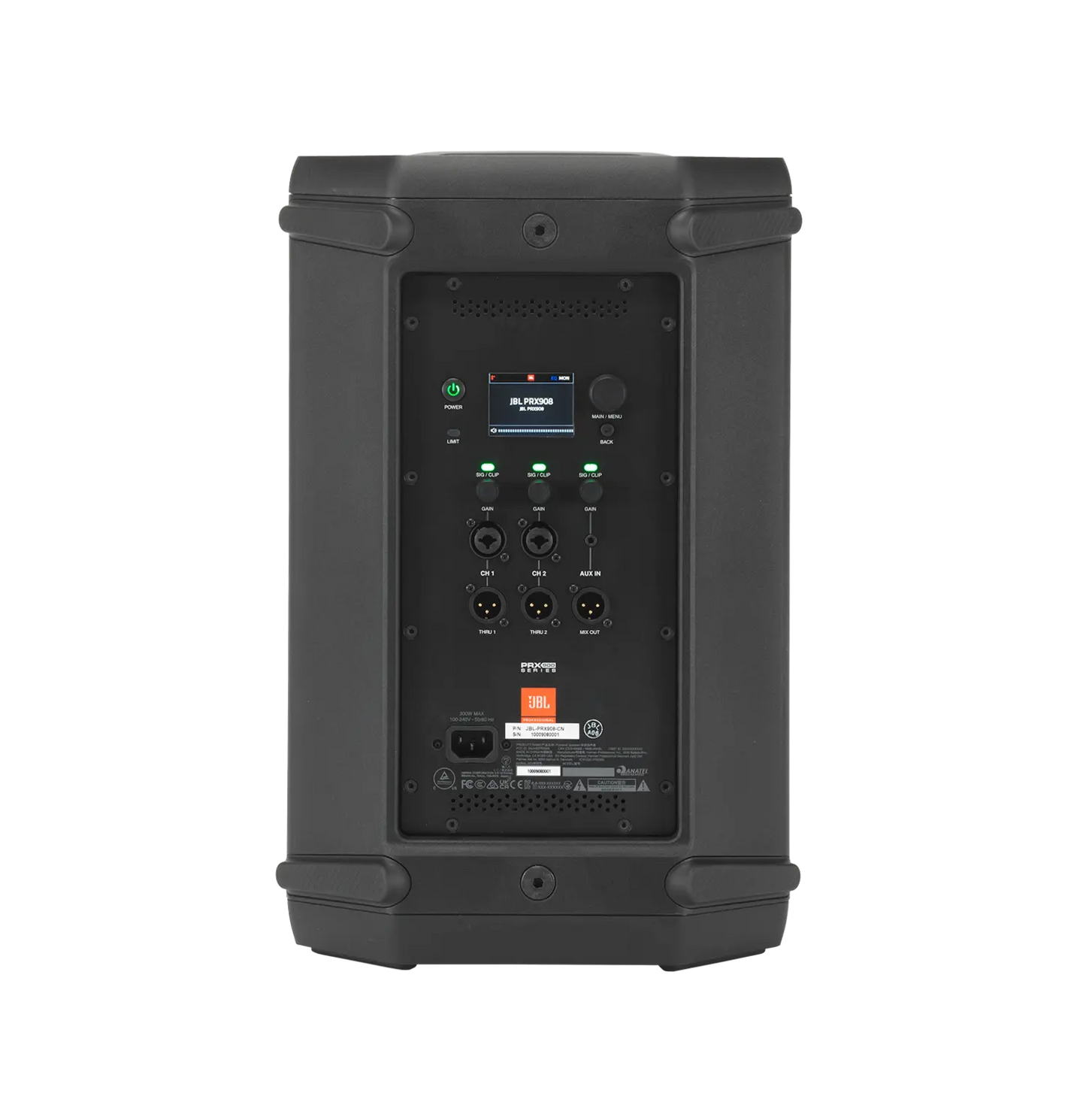

I/O:
x2 Combo Inputs and x1 3.5 mm Stereo Jack x2 XLR Through Out and x1 Mix Out

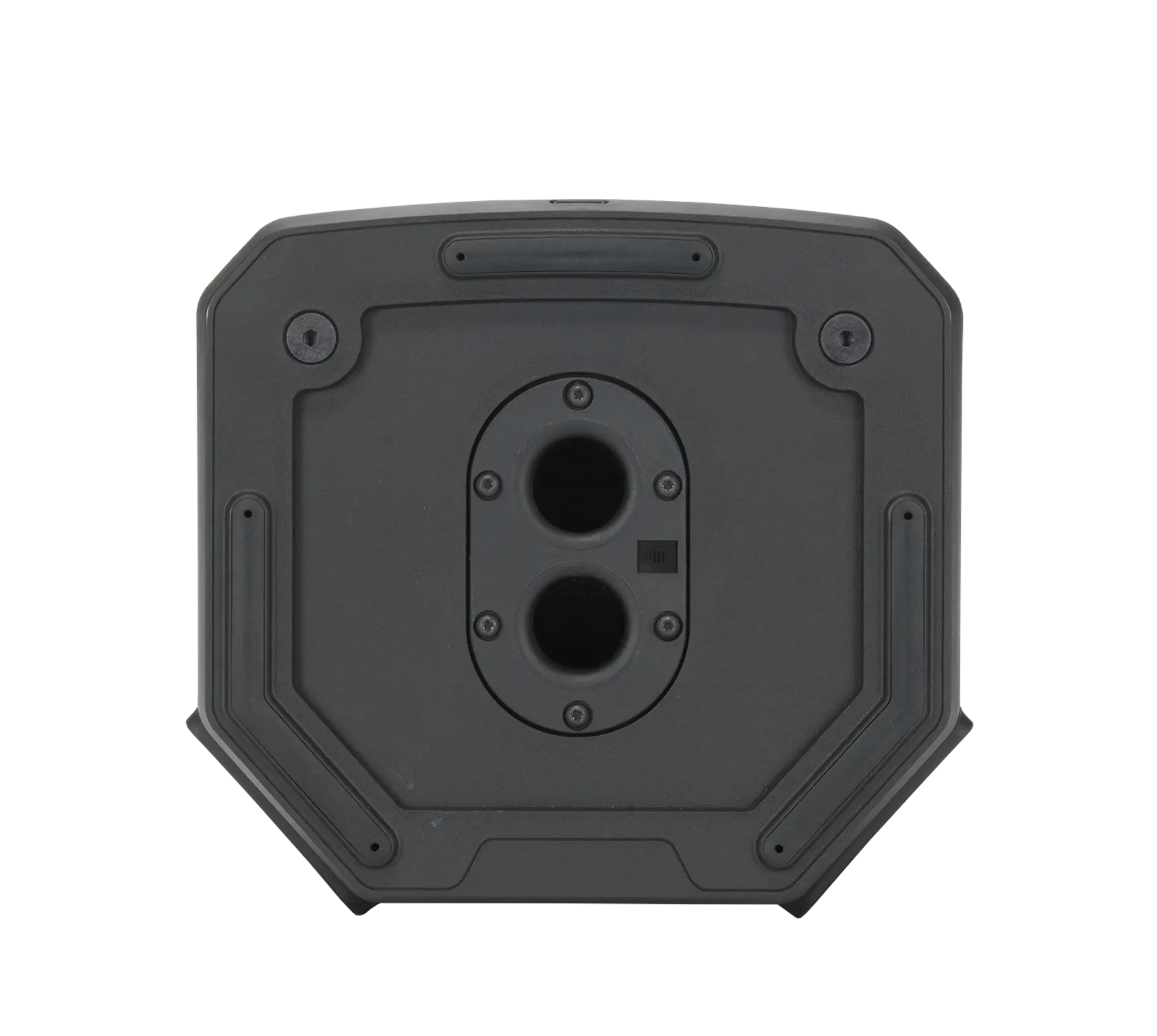

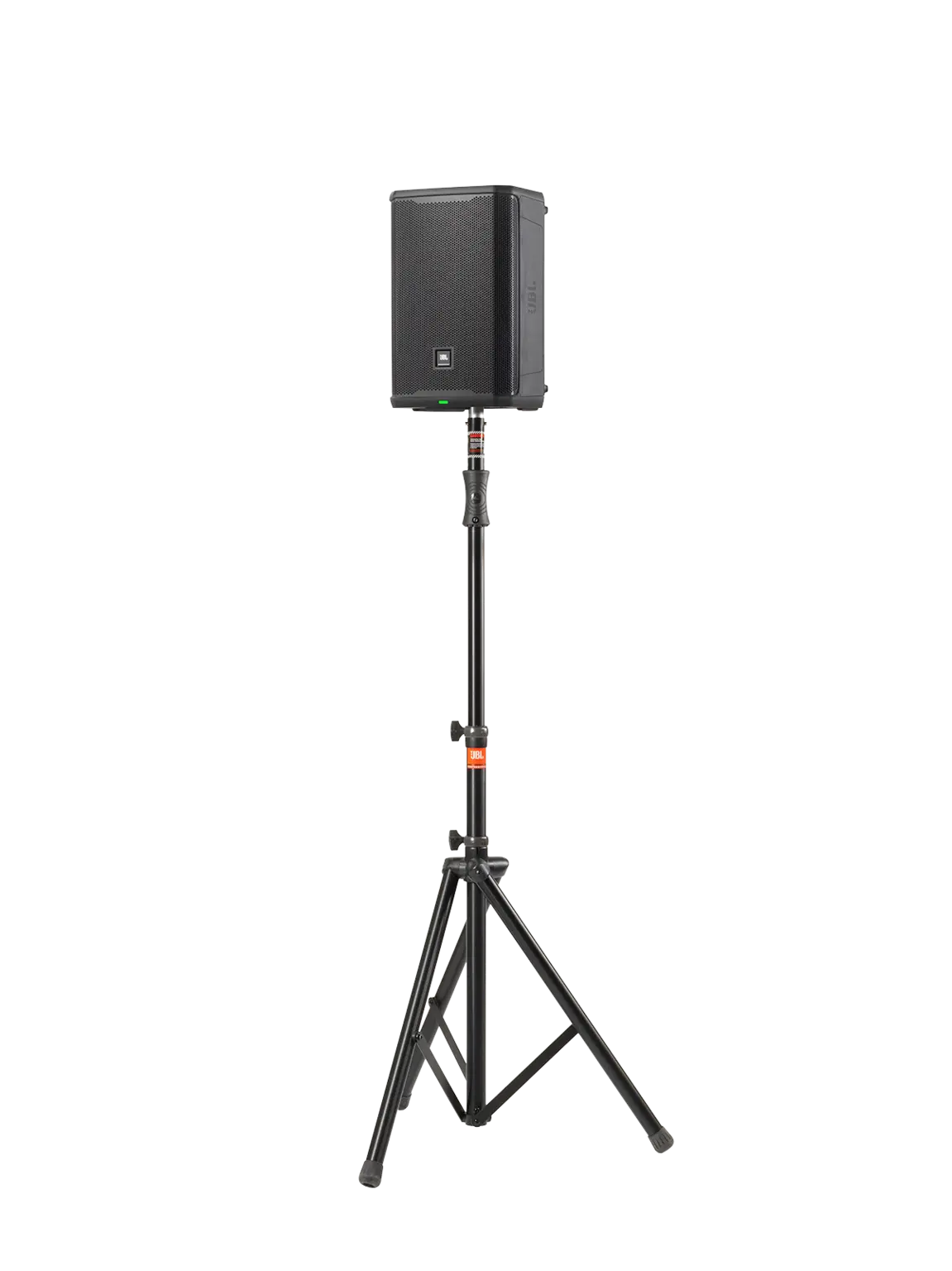

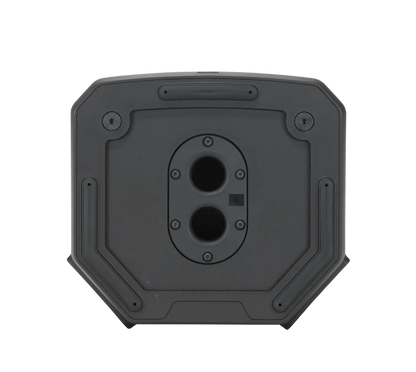

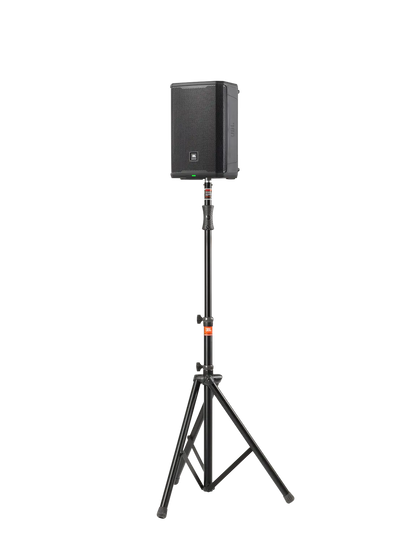

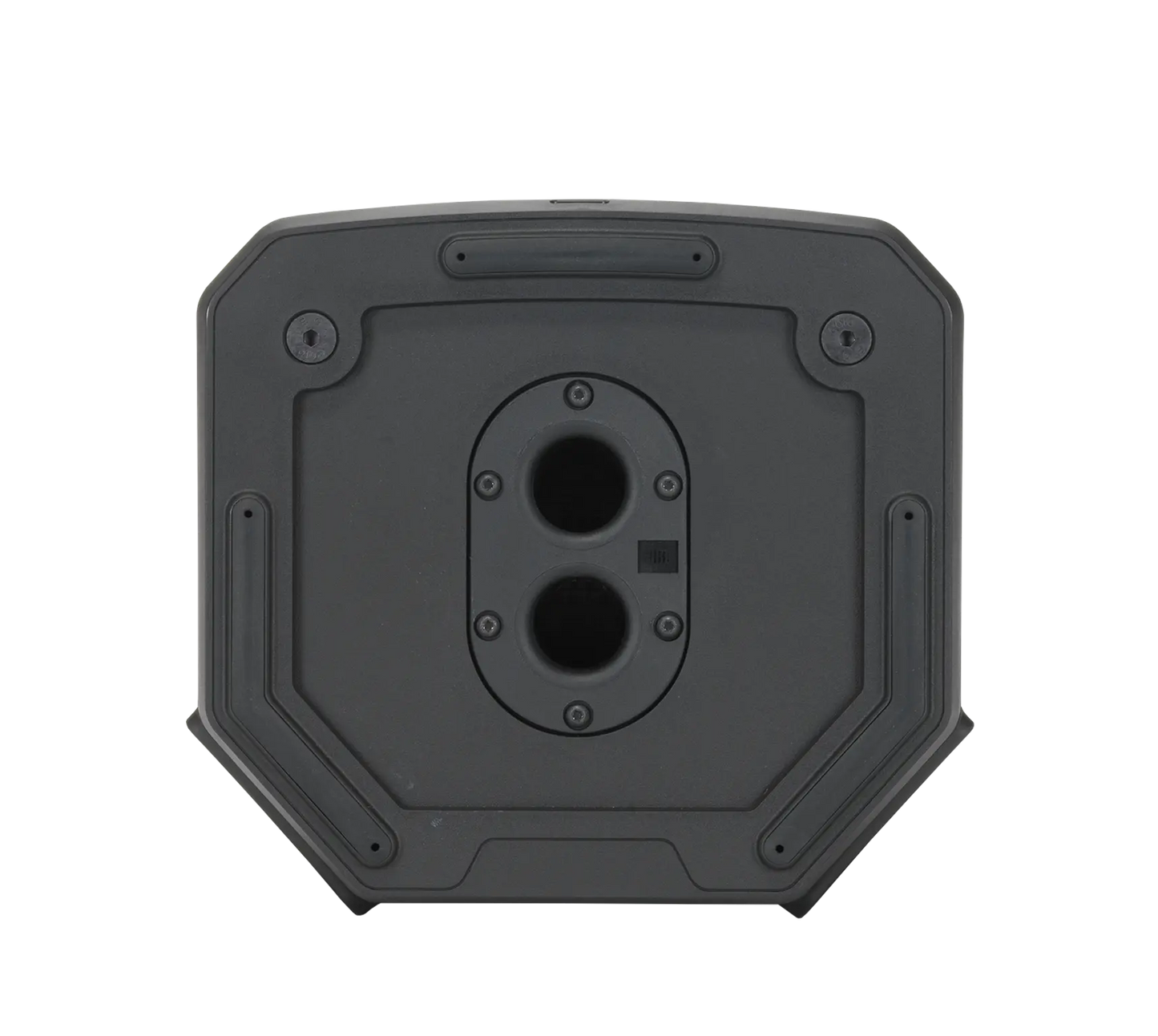

Suspension/Mounting:
6x M10 Suspension Point and Pole Mount
Product Dimensions (H x W x D):
479 x 312 x 285 mm (18.9 x 12.3 x 11.2 in)
Net Weight:
13.7 kg (30.2 lbs)
