Description
All-New Acoustic Designs
Lightweight, Efficient Class D Amplification
Features
Specifications
Frequency Range (-3 dB):
40 Hz - 87 Hz (2π)
Coverage Pattern:
Omni
Transducer Impedence:
Rated: 4 Ω
Max SPL:
131 dB @ 1m/2π
Power Rating:
2000W peak / 1000W RMS
Cooling:
Natural Convection No Fan
Crossover Frequency:
80 Hz, 100 Hz, 120 Hz Selectable
I/O:
x2 Combo Inputs x2 XLR Pass Through Outputs
Frequency Range (-10dB):
36 Hz - 98 Hz (2π)
Suspension/Mounting:

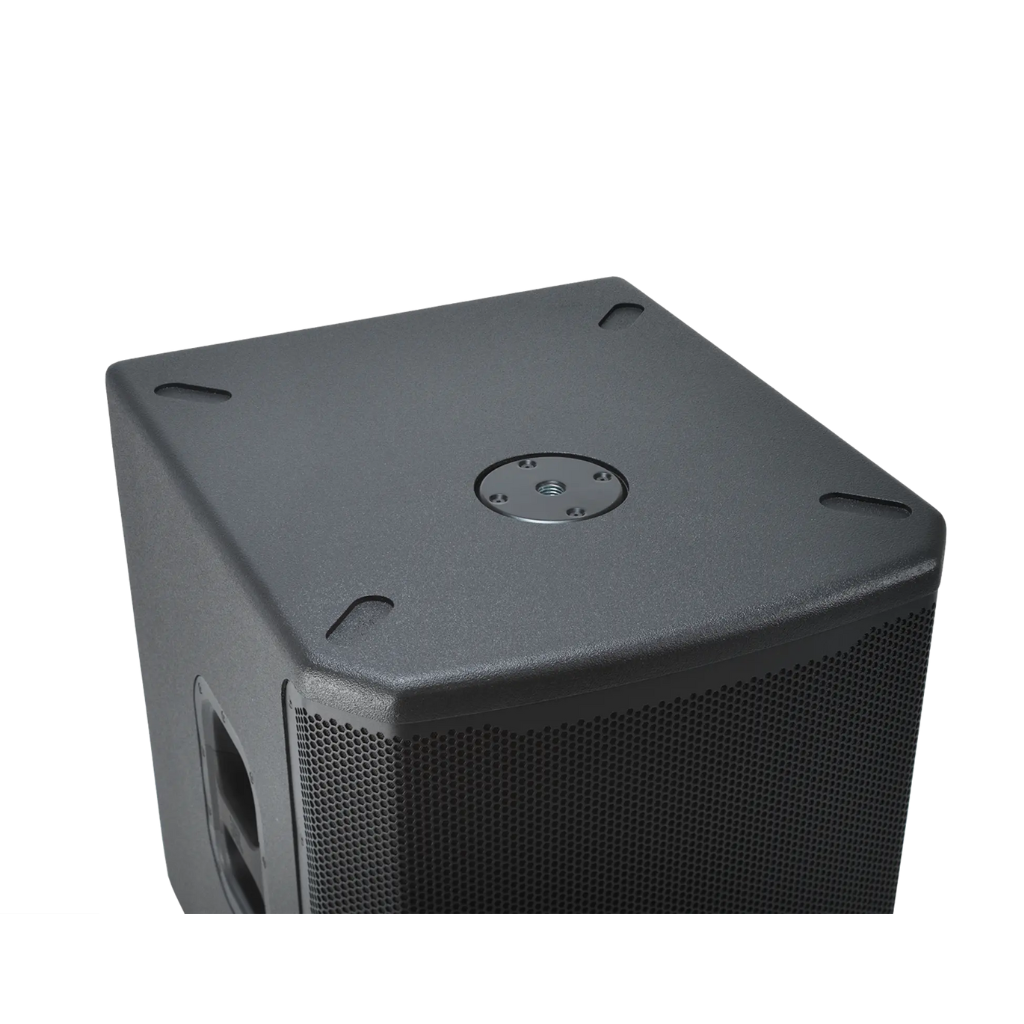

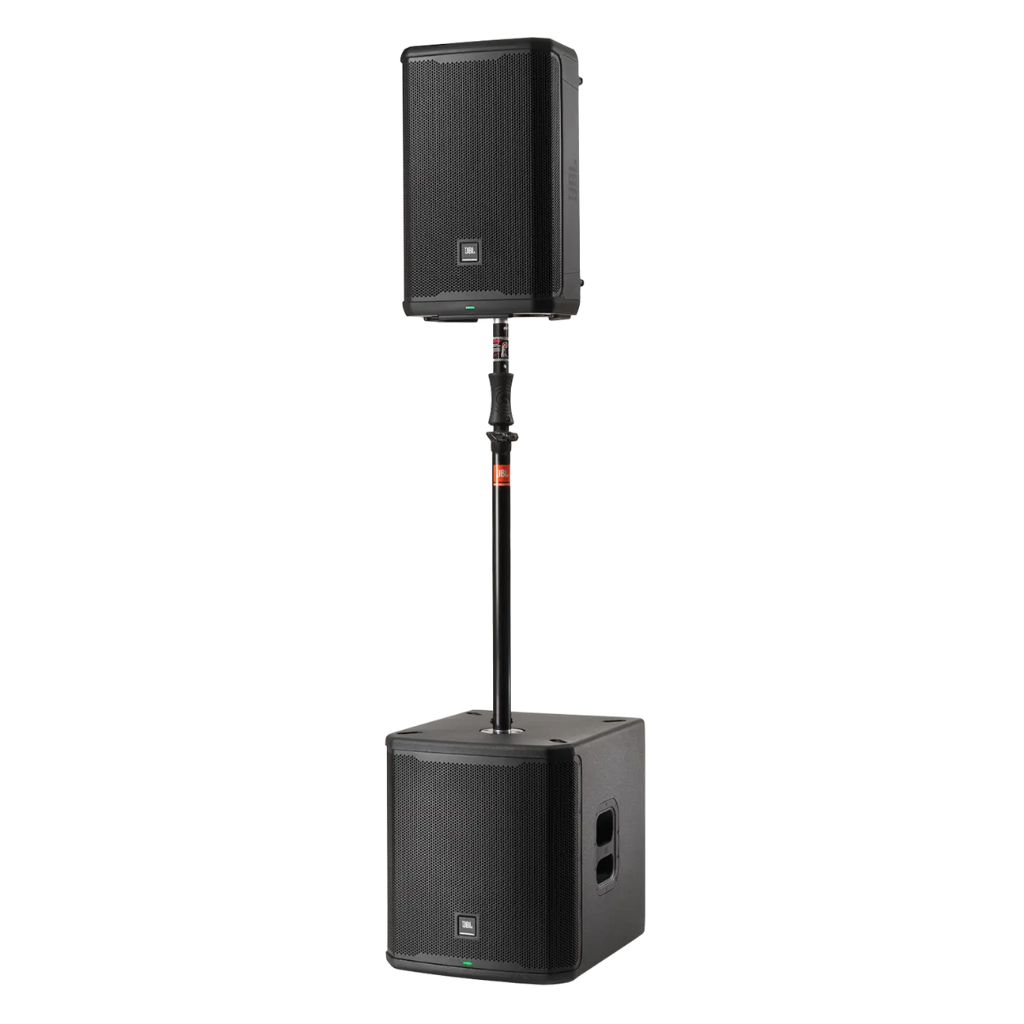

Pole Mount on Top Surface
Product Dimensions (H x W x D):
549 x 480 x 580 mm (21.6 x 18.9 x 22.8 in)
Net Weight:
28.6 kg (63 lbs)
