Product Highlights
Product Features
Specifications
Product Model:

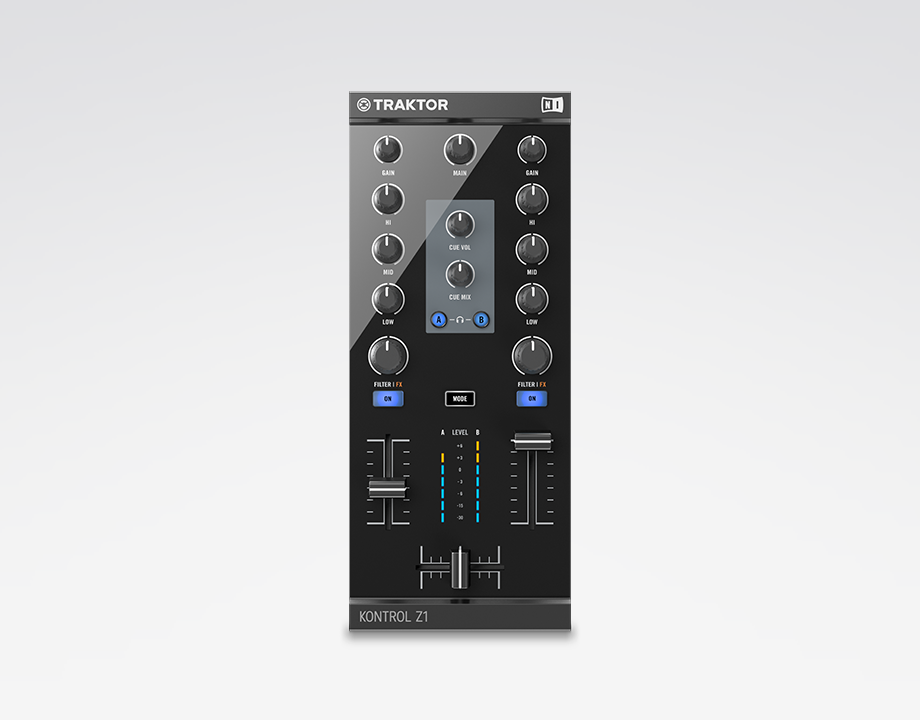

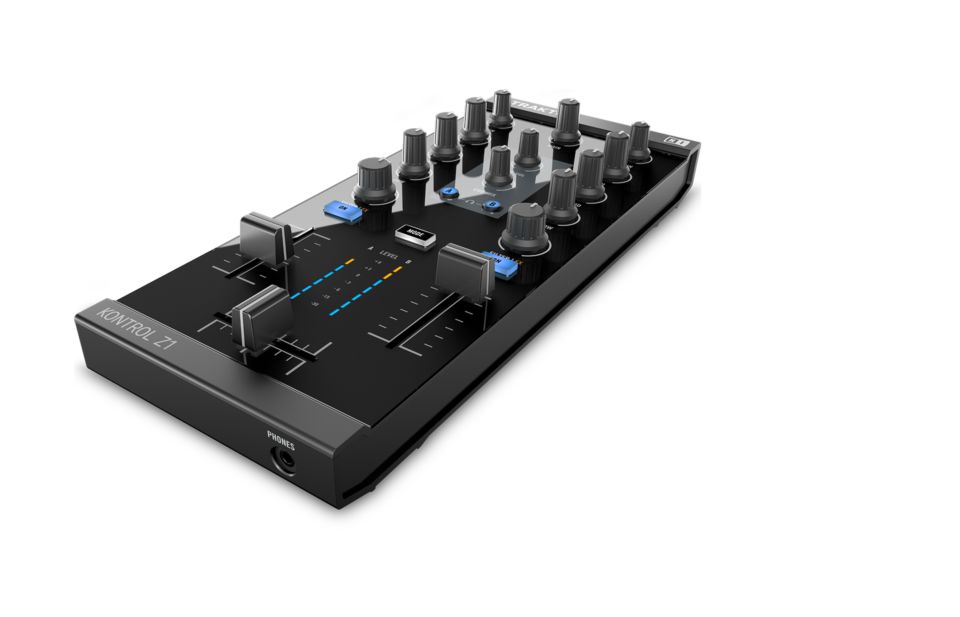

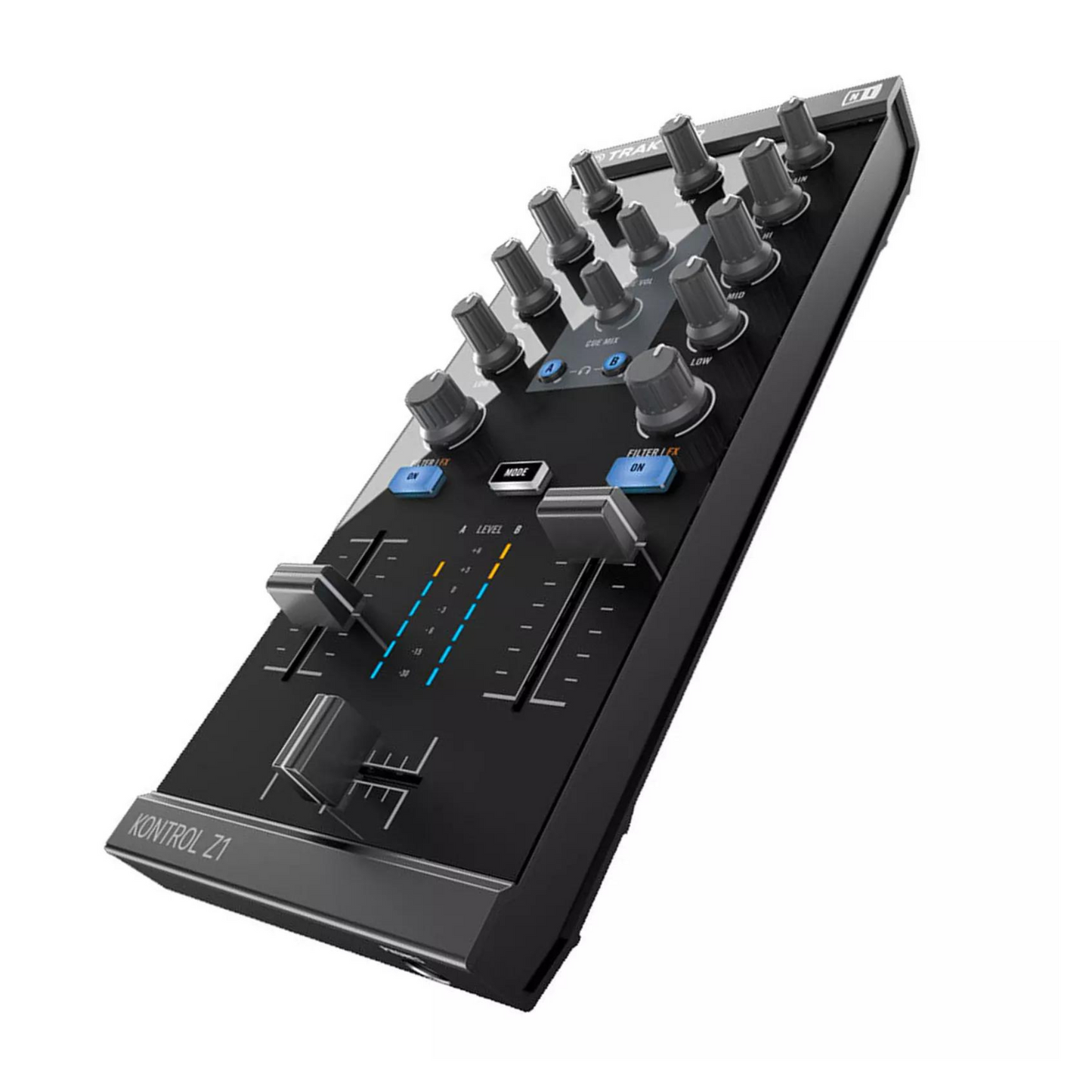

Native Instruments Traktor Kontrol Z1
Device Type:
Ultra-Portable 2-Channel DJ Controller & Audio Interface
Audio Resolution:
24-bit / 96 kHz High-Definition AD/DA Conversion
Hardware Mixer Channels:
2-Channel Discrete Layout with Separate Line Faders
EQ Strip Parameters:
Tactile 3-Band Analog-Style Hardware EQ (Low, Mid, High)
Filter Configuration:
Dual Independent One-Knob Sweepable Filter Controls

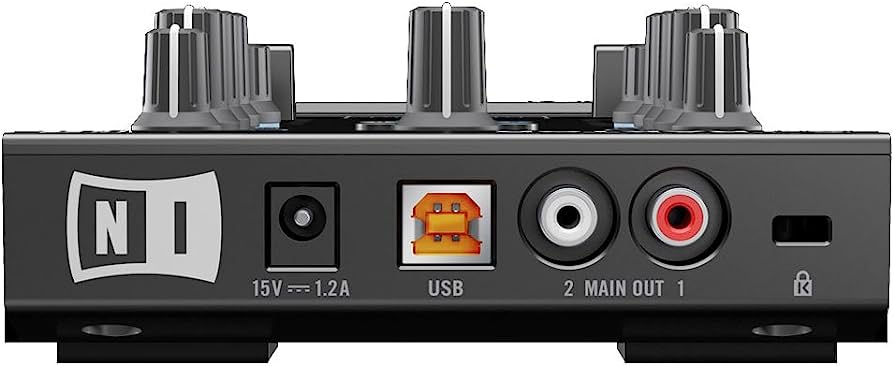

Master Audio Outputs:
1x Stereo RCA Pair (Unbalanced Line Out)

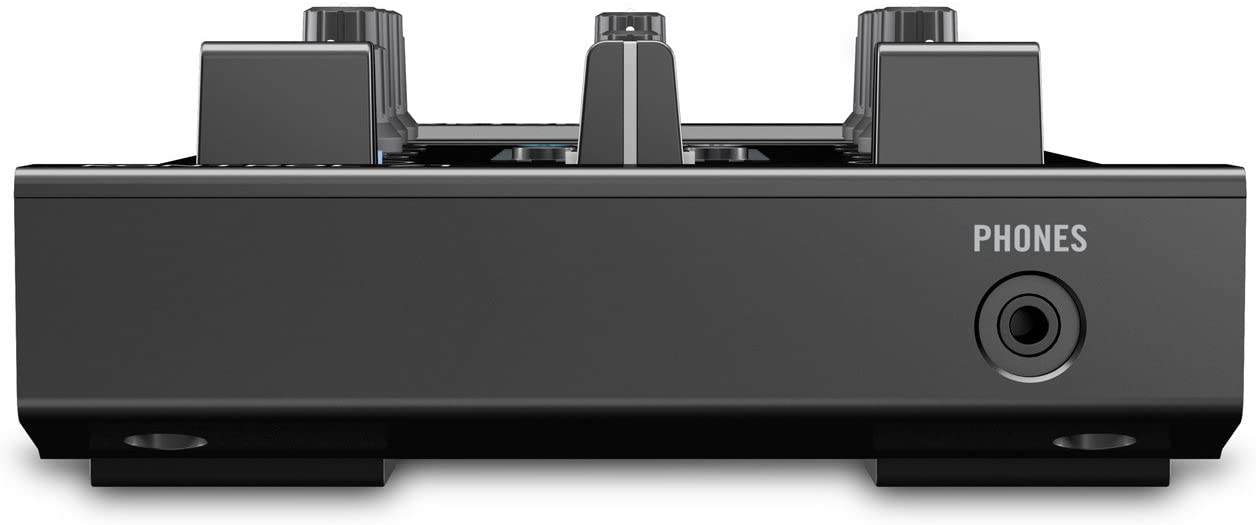

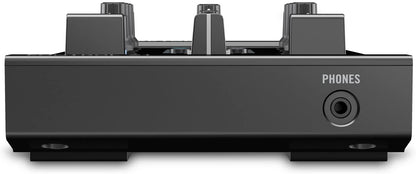

Headphone Monitoring:
1x 3.5 mm (1/8 inch) TRS Stereo Jack with Independent Volume Control
Computer Connectivity:
USB-B Port (USB 2.0 Bus Powered)
Mobile Integration:
Fully iOS Compatible (Charges iPad/iPhone via External Power Supply)
Mixing Faders:
2x Precision Volume Faders, 1x Linear Crossfader
Visual Monitoring:
LED Stereo Segment Level Meters, Backlit Channel Cue Buttons
Chassis Composition:
High-Impact Polycarbonate, Ultra-Slim Profile
Power Requirement:
USB Bus Power or External 15V DC Power Supply (Included)
Dimensions (W x L x H):
4.72 inches x 11.5 inches x 2.0 inches (120 mm x 293 mm x 51 mm)
Weight:
1.44 lbs (0.65 kg)
