Ortofon

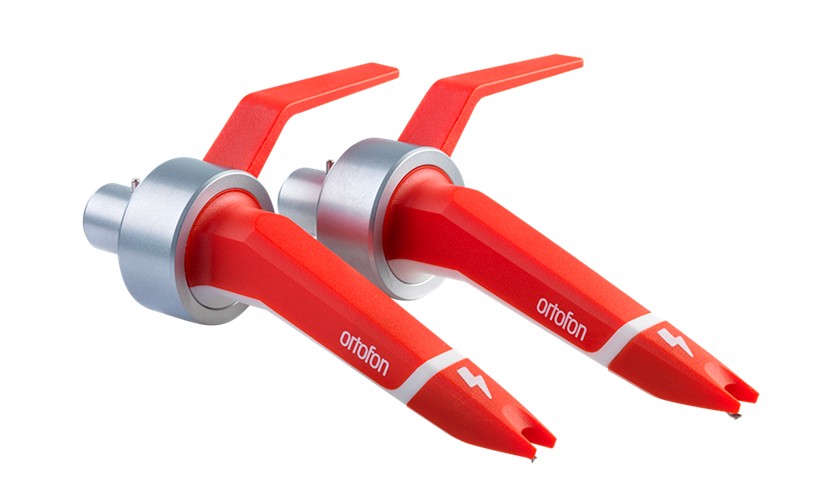

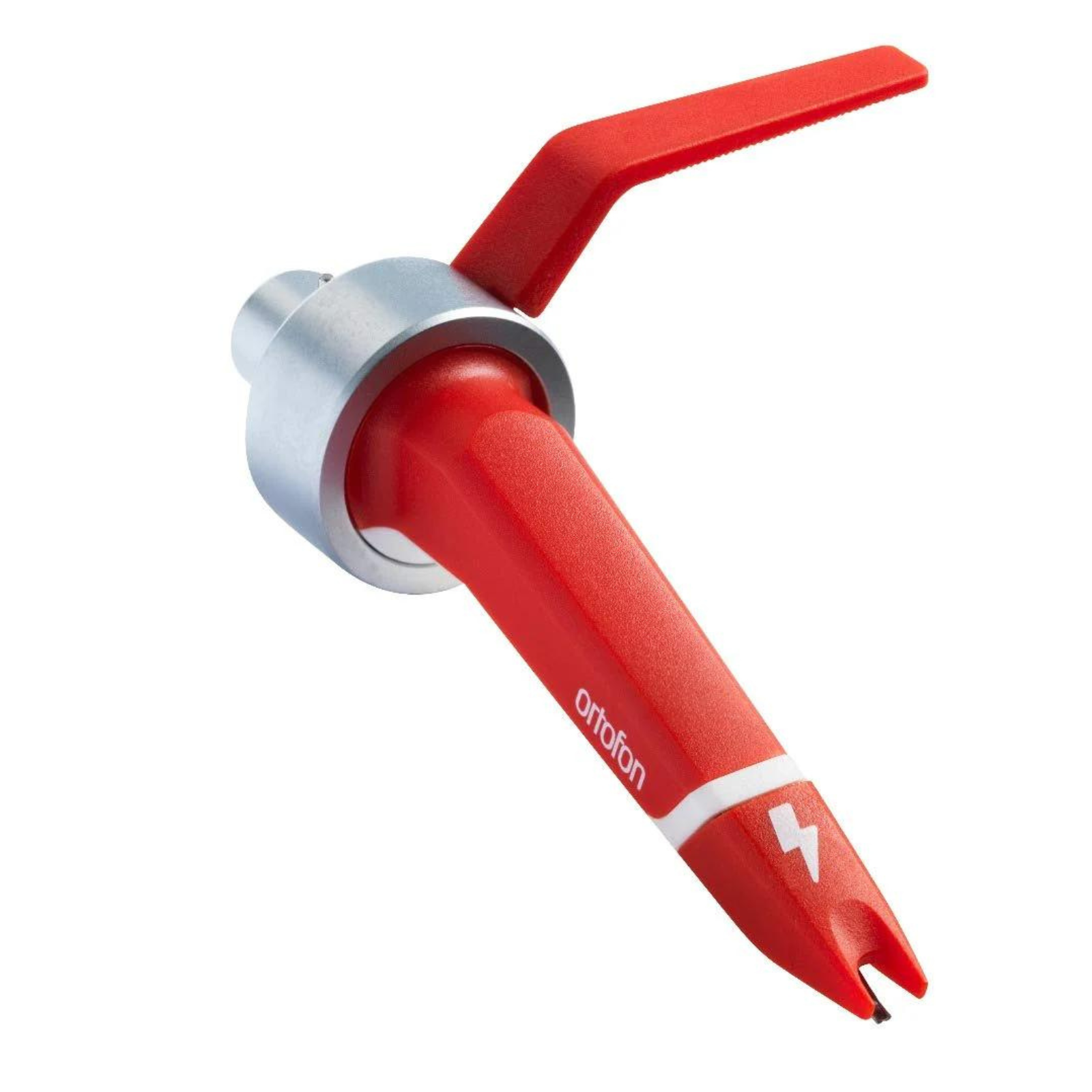

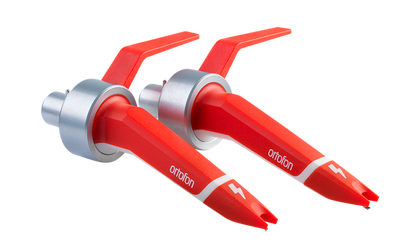

Ortofon Concorde MkII DIGITAL

1,029⁰⁰

894.78 (Excl. VAT)

Taxes included. Shipping calculated at checkout.

Product Variant Single Twin

Low stock: 1 left

Quantity

DHL Express: 1–3 working days
Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
Secure Payment

View full details

Description

The Concorde DIGITAL is designed to extend the life of timecode vinyl and minimize errors in decoding. At the same time the DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.

Output

The DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl. This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.

Frequency range

A decrease in the reproduction of frequencies where vinyl wear and crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

Specifications

Channel balance at 1 kHz:

1 dB

Output voltage at 1 kHz, 5cm/sec:

10 mV

Channel separation at 1 kHz:

22 dB

Stylus type:

Spherical diamond

Tracking force range:

3 - 5 g

Tracking force, recommended:

4 g

Internal impedance, DC resistance:

1200 Ohm

Recommended load resistance:

47 kOhm
