Ortofon

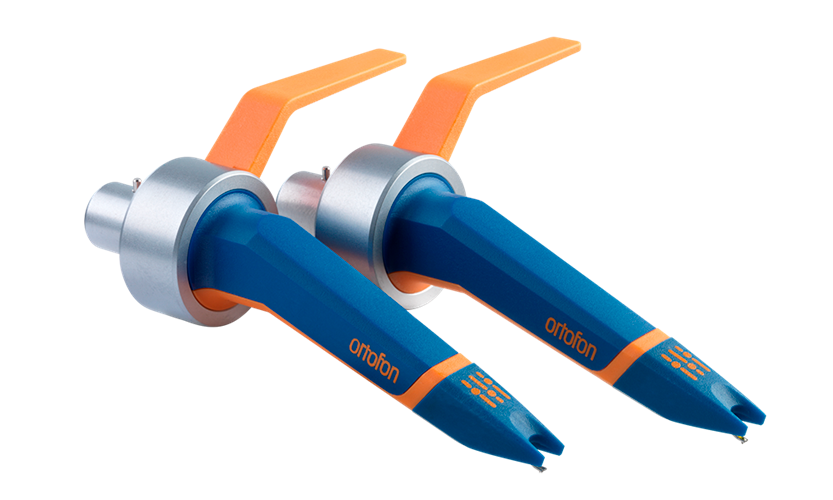

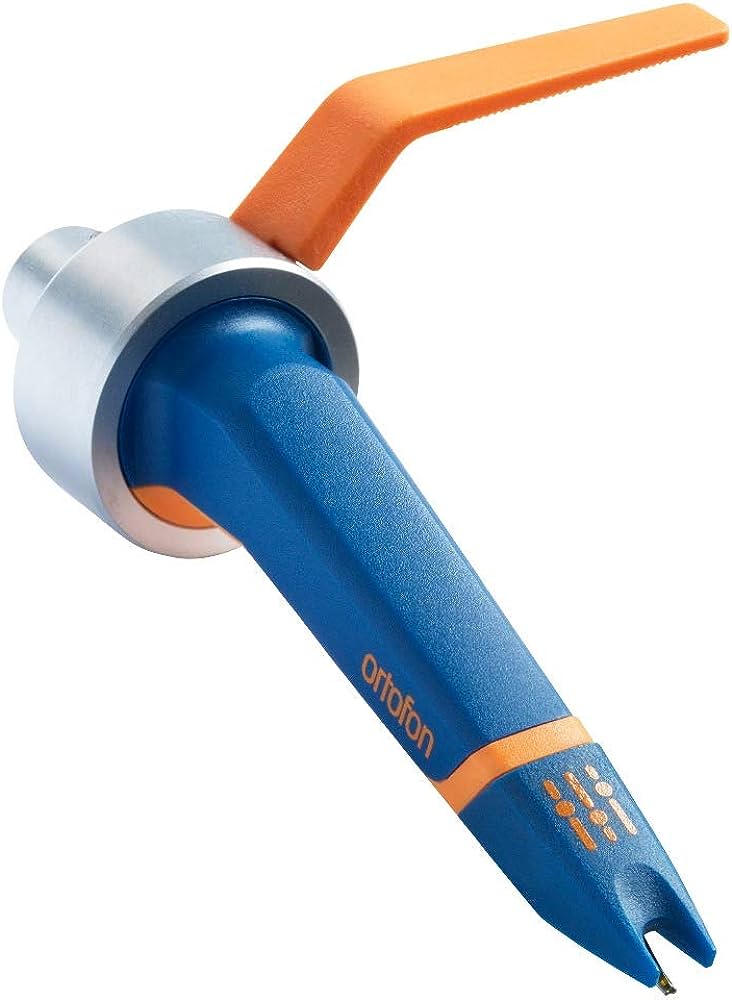

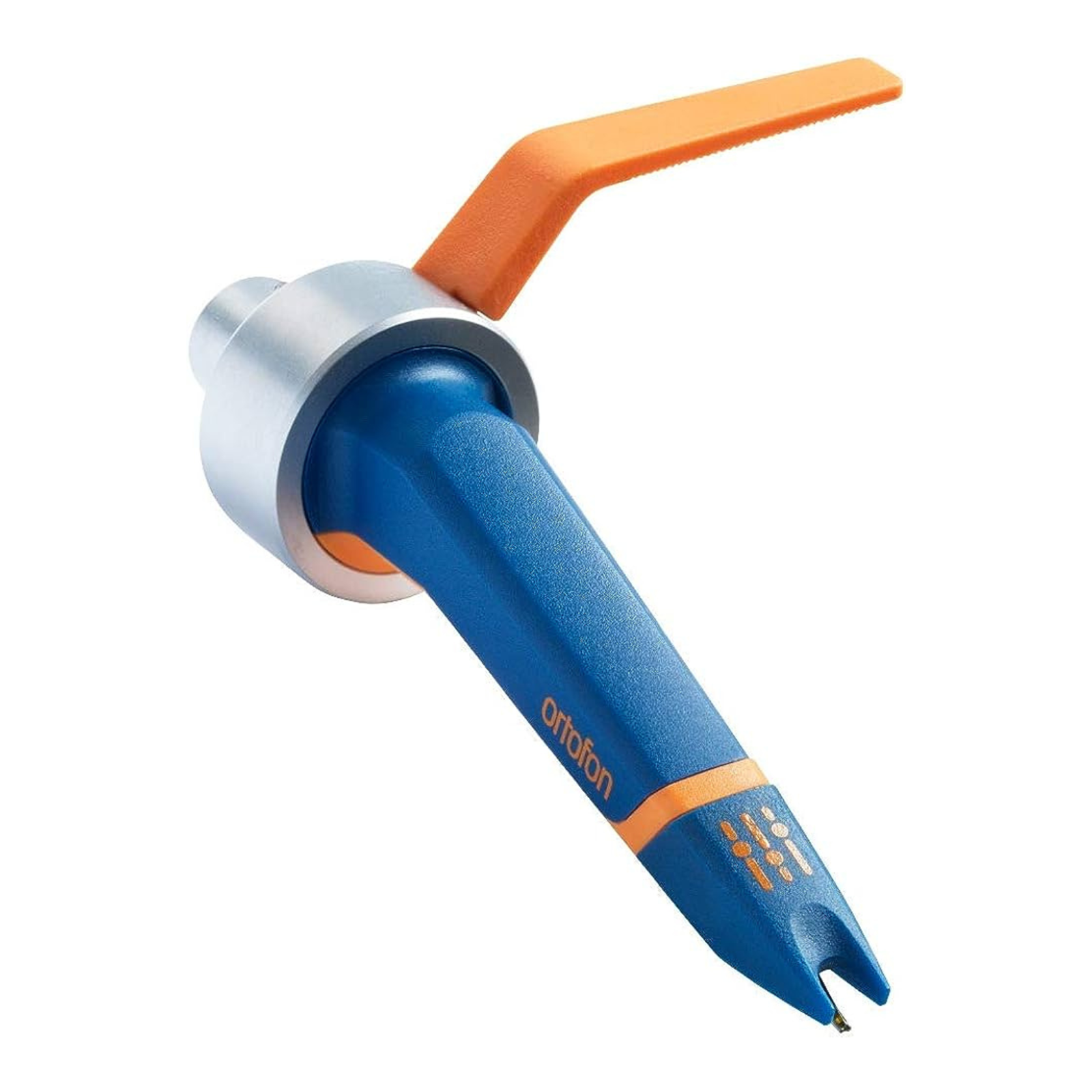

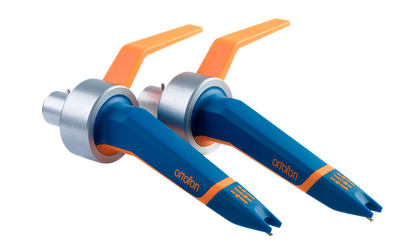

Ortofon Concorde MkII DJ

479

499

416.52 (Excl. VAT)

Taxes included. Shipping calculated at checkout.

Product Variant Single Twin

Quantity

DHL Express: 1–3 working days
Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
Secure Payment

View full details

Product Highlights

The Ortofon Concorde MkII DJ is a high-performance moving magnet turntable cartridge engineered to provide linear audio reproduction and superior tracking stability across a 20 Hz to 20,000 Hz frequency spectrum. Built for scratch performances, club installations, and back-cueing applications, this robust model removes the need for hardware alignment by utilizing a direct SME tonearm attachment interface. Driven by an efficient internal magnet array delivering a clean 6 mV output alongside a specialized spherical stylus tip, it ensures heavy tracking retention on demanding vinyl layouts while protecting core record collections from rapid groove wear.

Product Features

Specialized Spherical Diamond Stylus Tip: Utilizes a highly polished spherical diamond stylus assembly engineered to rest centered within the vinyl groove. This geometry reduces directional drag during heavy back-cueing, preserving record longevity while mitigating needle skip.
Reinforced Internal Cantilever Architecture: Constructed with an upgraded, high-stiffness cantilever design to handle sudden physical movements, heavy scratching actions, and rapid reverse cueing without permanent suspension sagging or driver decoupling.
High-Output 6 mV Signal Engine: Features an optimized electromagnetic generator system that outputs a strong 6 millivolt (mV) analog signal. This elevated line voltage drives phono preamplifiers cleanly, resulting in a wider signal-to-noise ratio and authoritative bass response over large venue PA engines.
Enhanced Tracking Ability and Groove Retention: Engineered to maintain high operational tracking stability up to 100 micrometers at a recommended tracking force of 4.0 grams. This ensures the needle remains firmly locked inside worn or warped vinyl tracks under high mechanical booth vibrations.
Replaceable Modular Stylus and Finger Lift: Built with a split-component physical design incorporating a tactile, broad finger lift that can be unbolted and replaced quickly if damaged. The forward stylus tip pulls straight off, allowing for rapid field replacements between performance slots without removing the entire cartridge assembly.

Specifications

Product Model:

Ortofon Concorde MkII DJ

Cartridge Type:

Moving Magnet (MM)

Stylus Profile:

Spherical Diamond

Output Voltage:

6 mV (at 1 kHz, 5 cm/sec)

Frequency Range:

20 Hz to 20,000 Hz (-3 dB Limits)

Tracking Ability:

100 micrometers at 315 Hz (Recommended Tracking Force)

Compliance, Dynamic:

14 micrometers/milliNewton - Lateral

Tracking Force Range:

3.0 grams to 5.0 grams (30 to 50 mN)

Recommended Tracking Force:

4.0 grams (40 mN)

Internal Impedance:

700 Ohms (DC Resistance)

Internal Inductance:

450 milliHenries (mH)

Recommended Load Resistance:

47 kOhms

Recommended Load Capacitance:

200 to 600 picoFarads (pF)

Cartridge Body Connection:

Direct Plug-In SME Tonearm Connector

Replacement Stylus Unit:

Ortofon Stylus DJ MkII (Interchangeable)

Weight:

18.5 grams (Single Unit Chassis)
