Ortofon

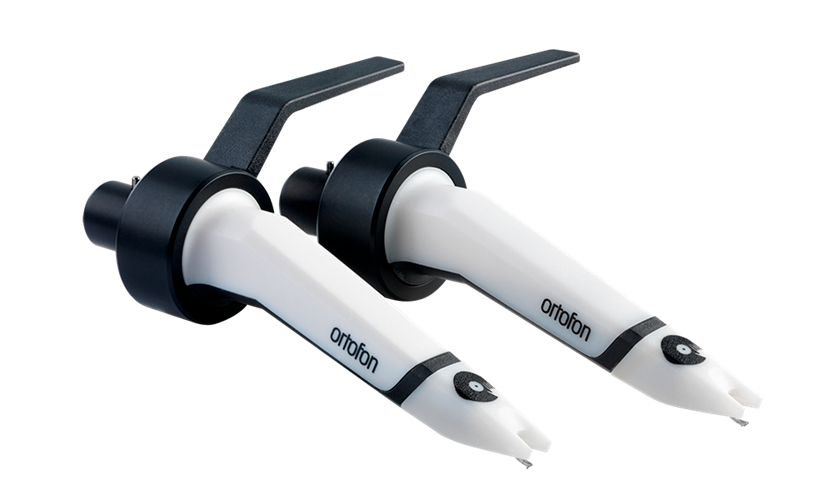

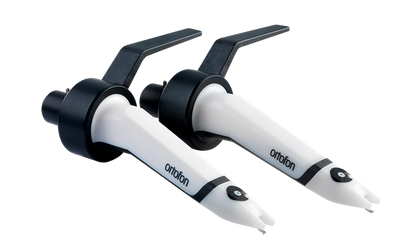

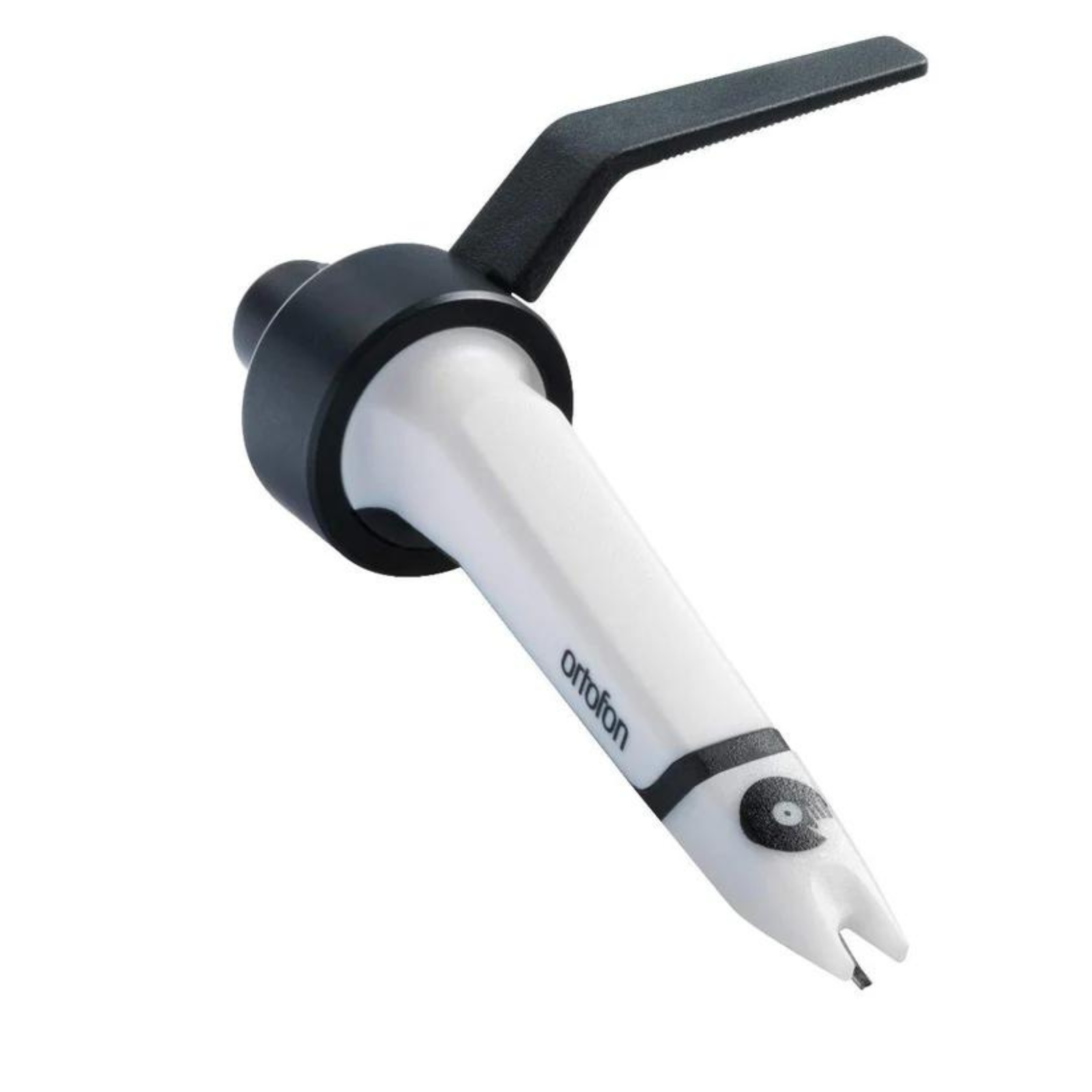

Ortofon Concorde MkII SCRATCH

499⁰⁰

433.91 (Excl. VAT)

Taxes included. Shipping calculated at checkout.

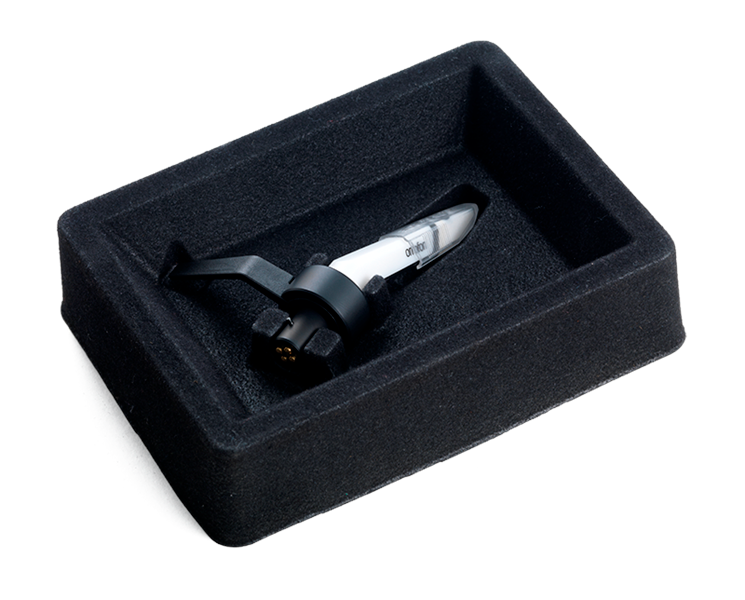

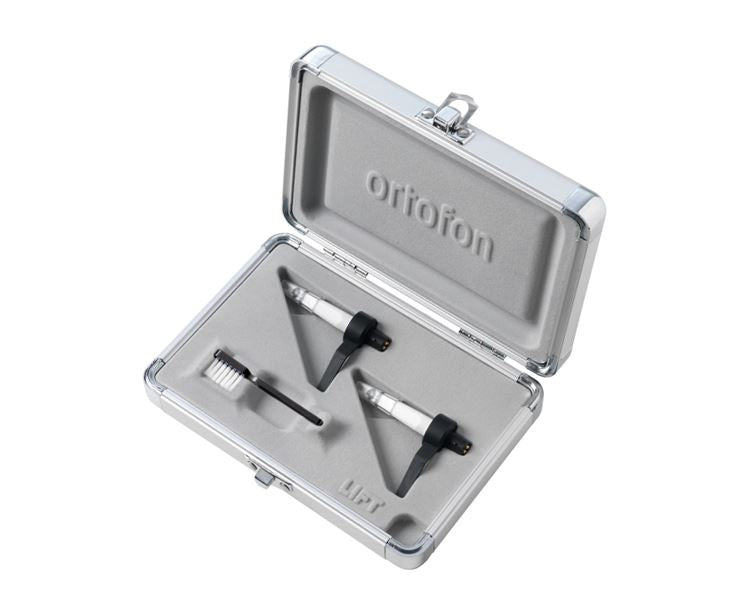

Product Variant Single Twin

Low stock: 1 left

Quantity

DHL Express: 1–3 working days
Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
Secure Payment

View full details

Description

The Concorde Scratch is intended especially for the disciplines of scratch and back-cueing. It allows turntablist and scratching DJs to achieve new levels of performance with unprecedented tracking ability and extra high output.

Specifications

Output Voltage:

10 mV

Frequency Response (‑3 dB):

20 Hz – 18 kHz

Channel Balance (1 kHz):

1 dB

Channel Separation @ 1 kHz:

22 dB

Channel Separation @ 15 kHz:

15 dB

Tracking Ability @ 315 Hz:

120 µm

Compliance (dynamic lateral):

14 µm/mN

Stylus Type & Radius:

Spherical diamond, R 18 µm

Tracking Force (range / recommended):

3.0–5.0 g / 4.0 g

Vertical Tracking Angle:

20°

Internal Resistance:

1,200 Ω

Internal Inductance:

850 mH

Recommended Load:

47 kΩ, 200–400 pF

Cartridge Weight:

18.5 g

Cantilever Material:

Aluminum
