Product Model:

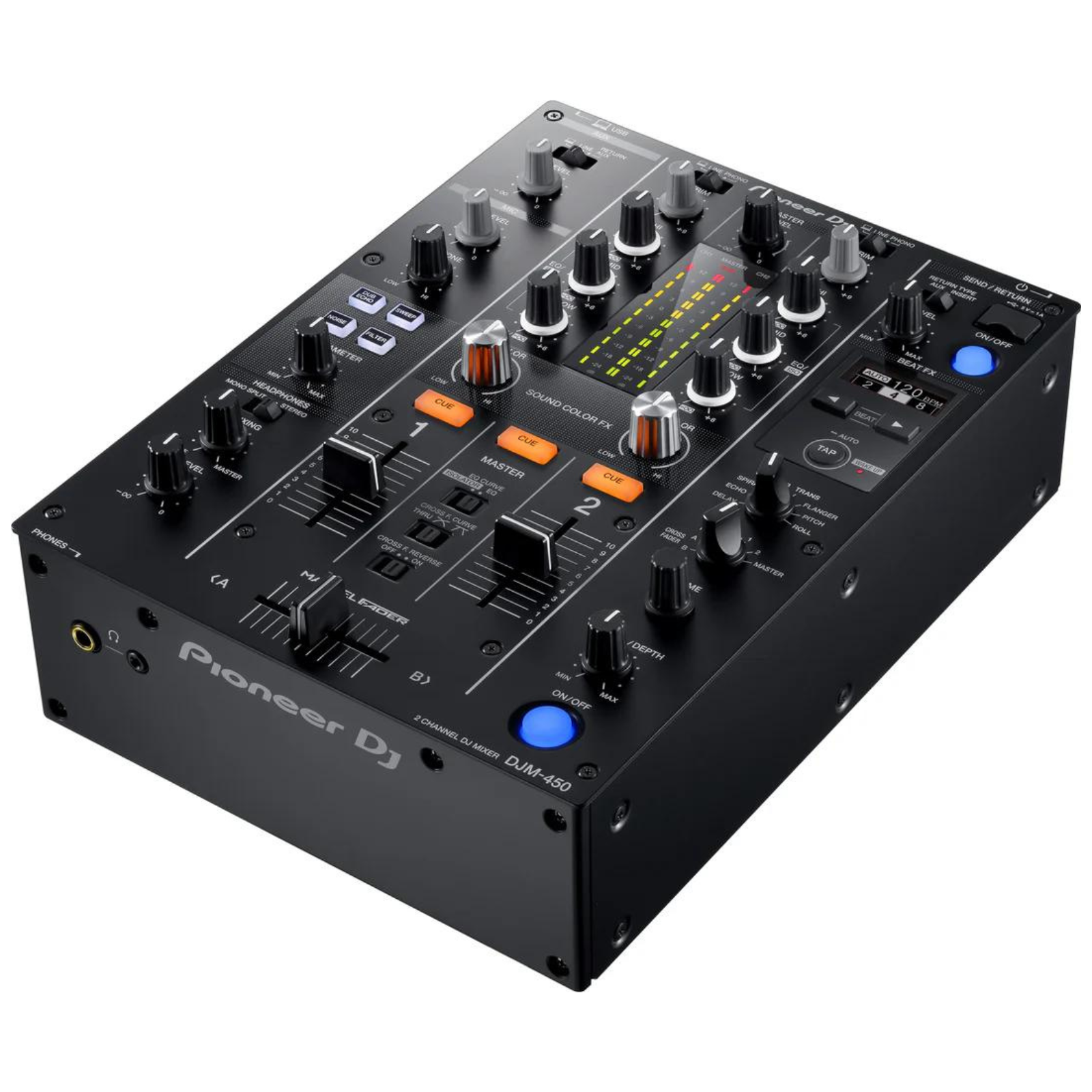

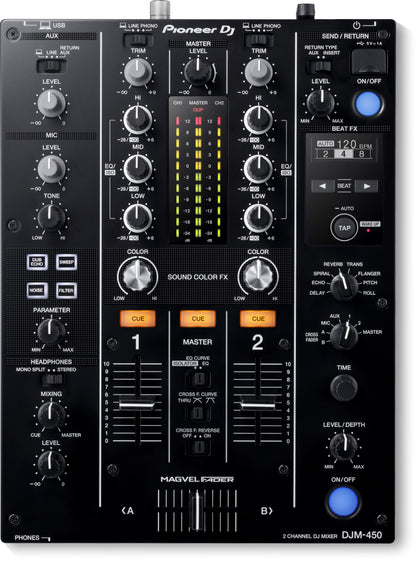

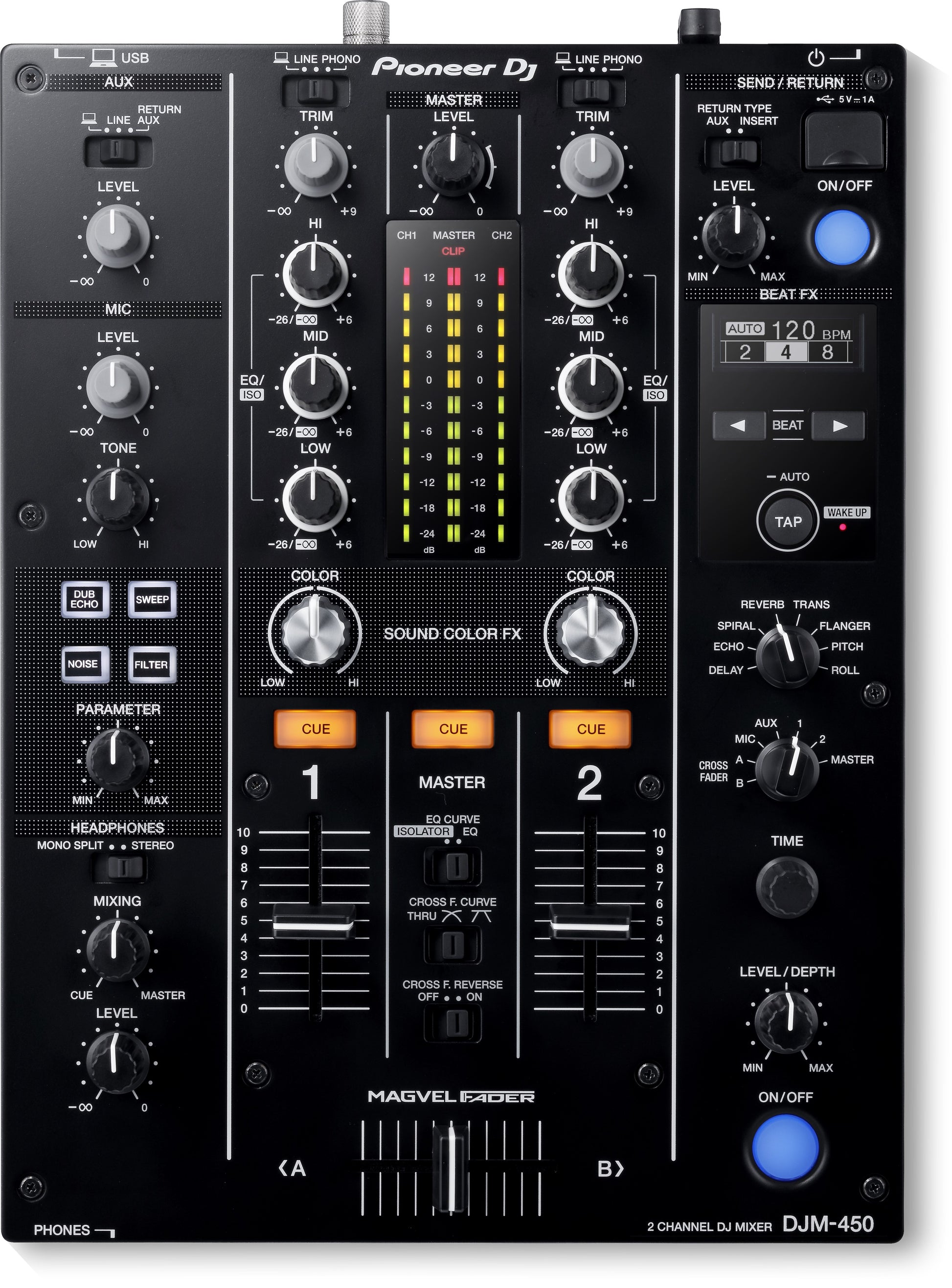

Pioneer DJ DJM-450
Mixer Channel Count:
2x Audio Performance Channels, 1x Microphone Channel, 1x AUX Channel
A/D D/A Conversion Core:
24-bit Deep Tracking Core / 48 kHz Sample Rate
Internal Digital Processing:
64-bit Floating-Point Mixing Architecture
Frequency Response Range:
20 Hz to 20,000 Hz (Line Inputs)
Signal-to-Noise Ratio:
94 dB (Line), 80 dB (Phono), 77 dB (Mic)
Total Harmonic Distortion:
Less than 0.005% (Line-Master 1 Output)
Channel EQ Control Range:
3-Band Isolator Type ($-\infty$ to +6 dB at Low / Mid / High)
Crossfader Technology:
Contactless Magvel Magnetic Crossfader with Curve Adjust
Sound Color FX Engines:
Dub Echo, Sweep, Noise, Filter
Beat FX Processing Suite:
Delay, Echo, Spiral, Reverb, Trans, Flanger, Pitch, Roll

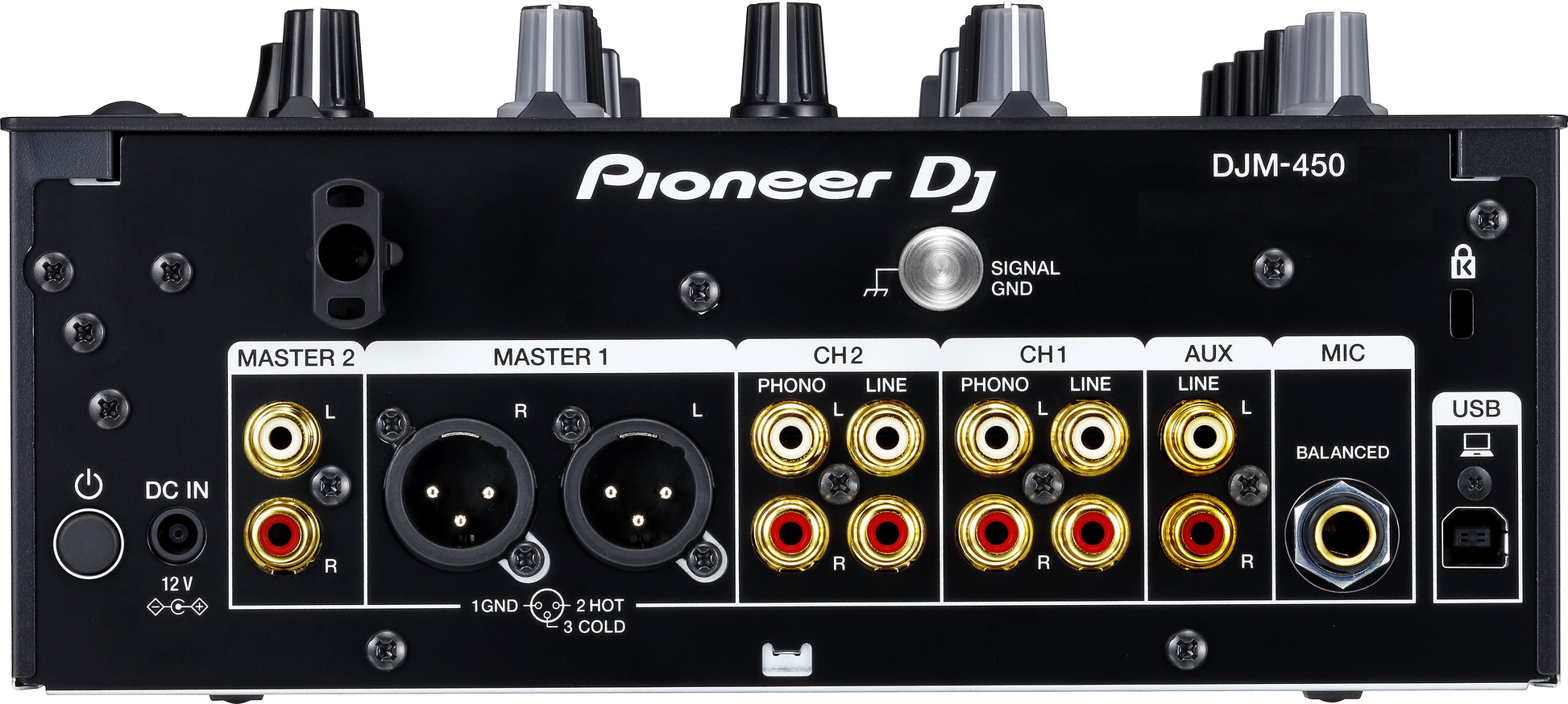

Analog Input Connections:
3x Pairs Line RCA, 2x Pairs Phono RCA, 1x 1/4-inch TS Microphone Jack
Analog Output Connections:
1x Balanced Pair XLR (Master 1), 1x Unbalanced Pair RCA (Master 2)
Headphone Monitor Links:
1x 1/4-inch TRS Stereo Jack, 1x 3.5 mm TRS Stereo Mini-Jack
USB Data Interfaces:
1x USB-B Port (Computer Link), 1x USB-A Port (Send/Return Loop)
Dimensions (W x D x H):
23.0 cm x 32.0 cm x 10.8 cm (9.06 x 12.6 x 4.25 inches)
Weight:
7.05 lbs (3.2 kg)
