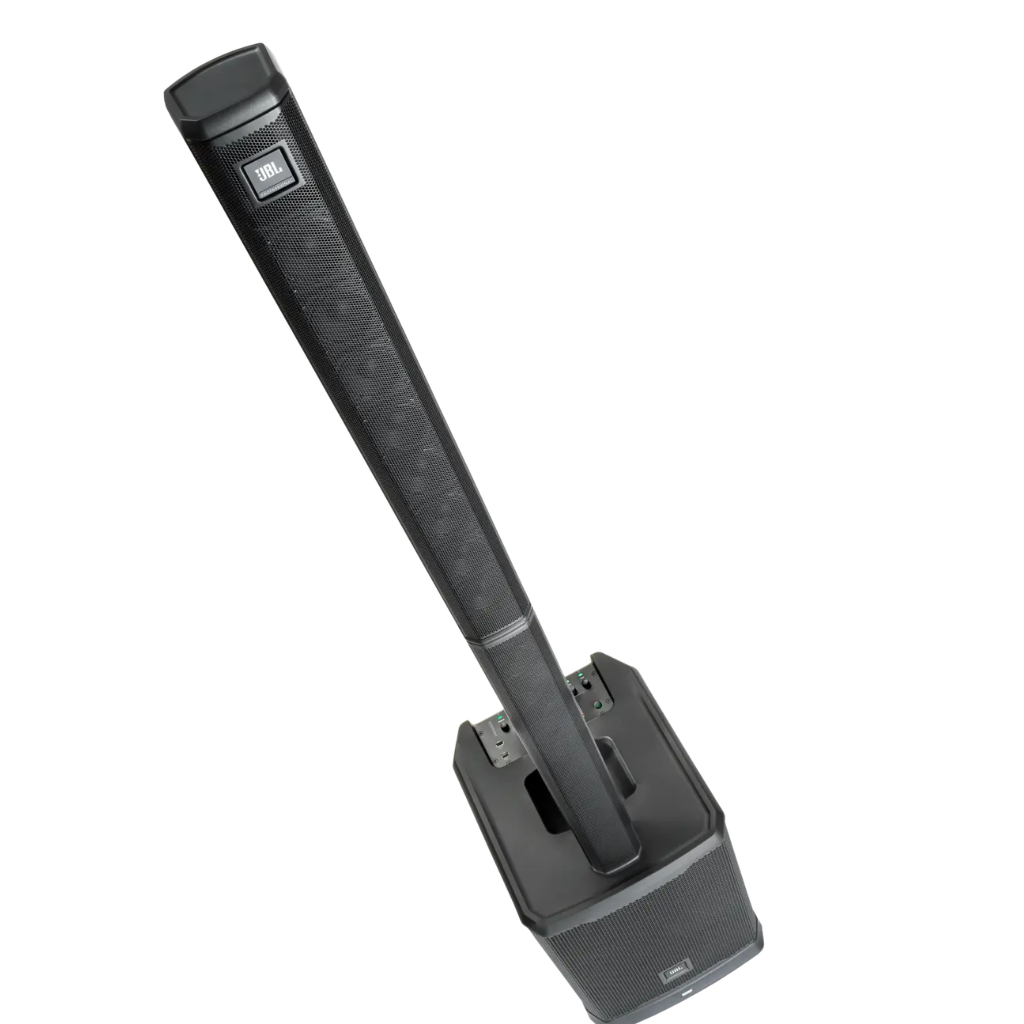

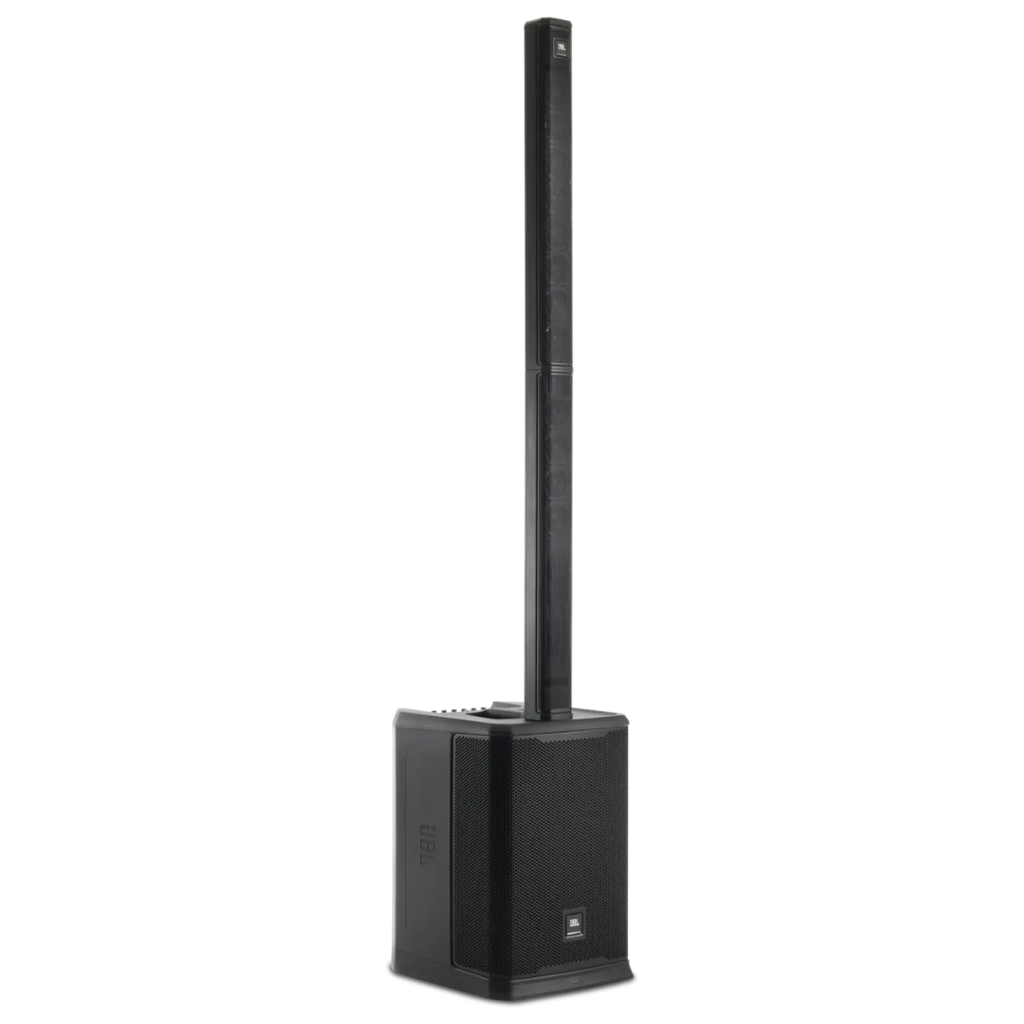

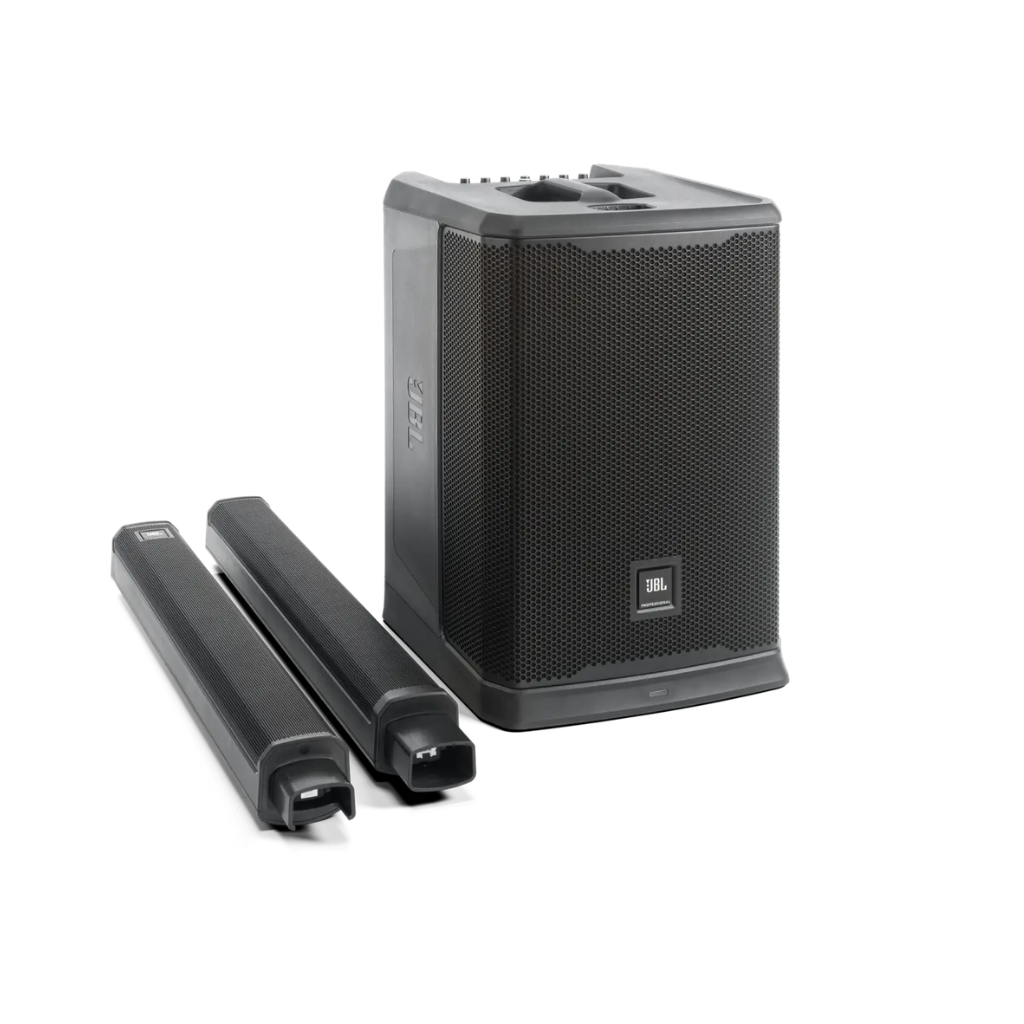

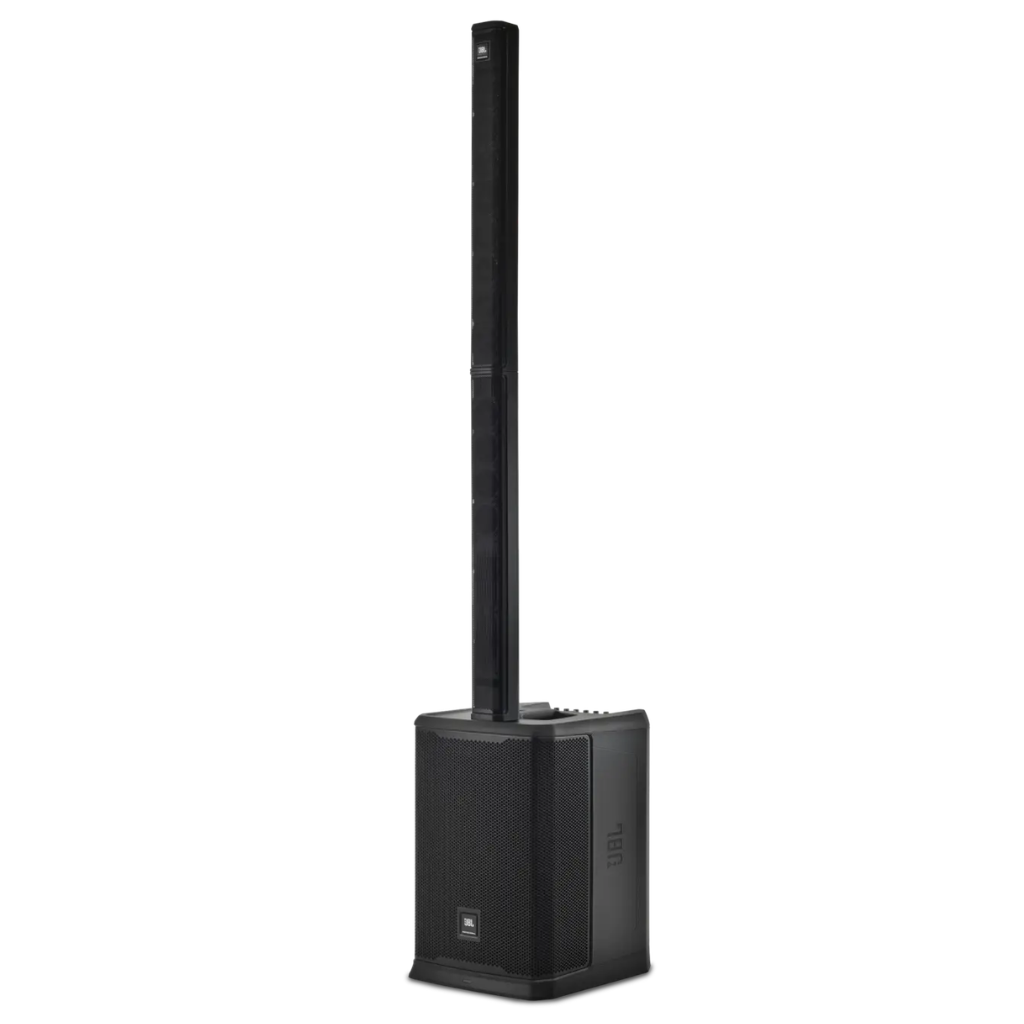

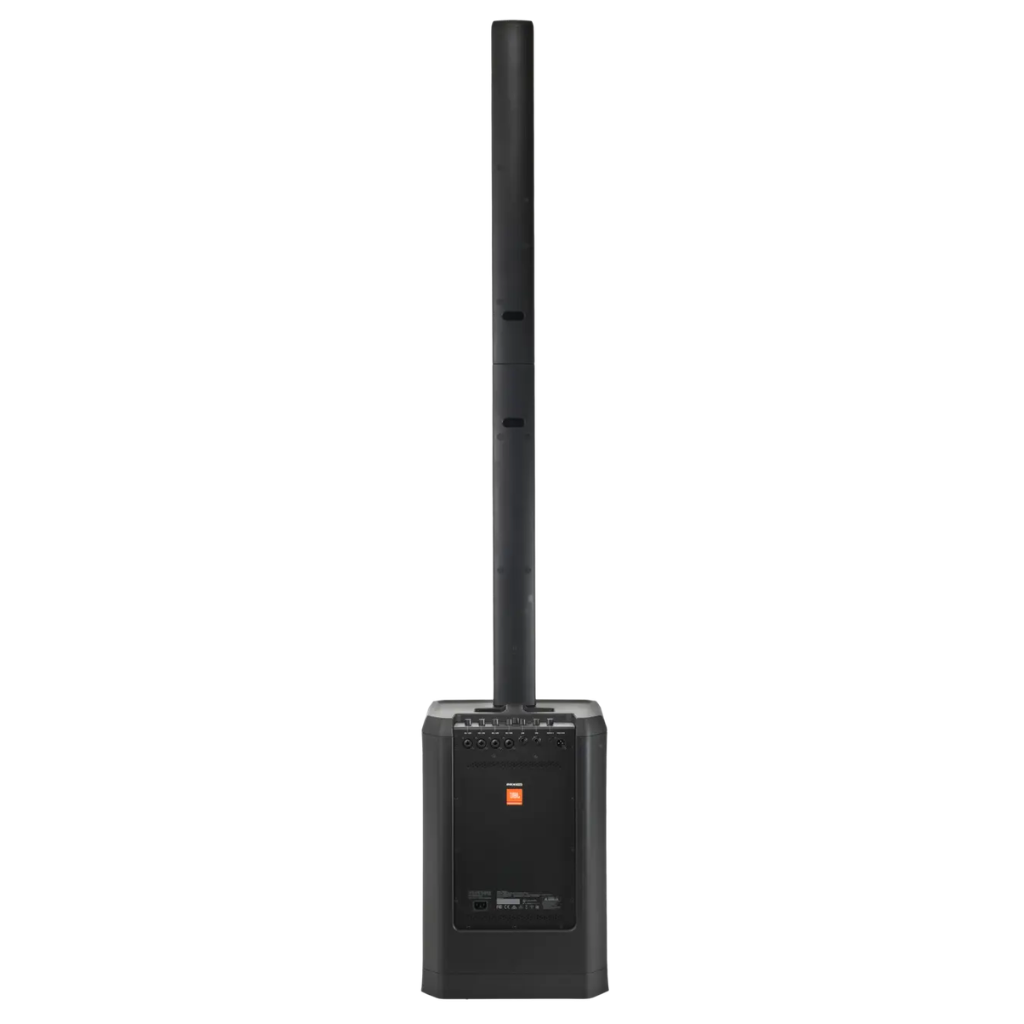

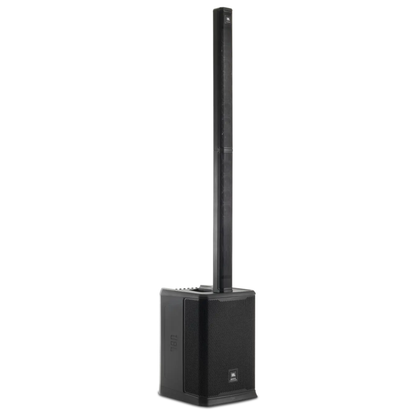

JBL PRX ONE All-in-One Powered Column PA Speaker System With Mixer and DSP

JBL PRX ONE All-in-One Powered Column PA Speaker System With Mixer and DSP

SAR 9,999
SAR 8,694.78 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Description

The JBL PRX ONE all-in-one powered column PA features an acoustically optimized column array featuring a 7-channel digital mixer, a full suite of professional DSP, class-leading audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.

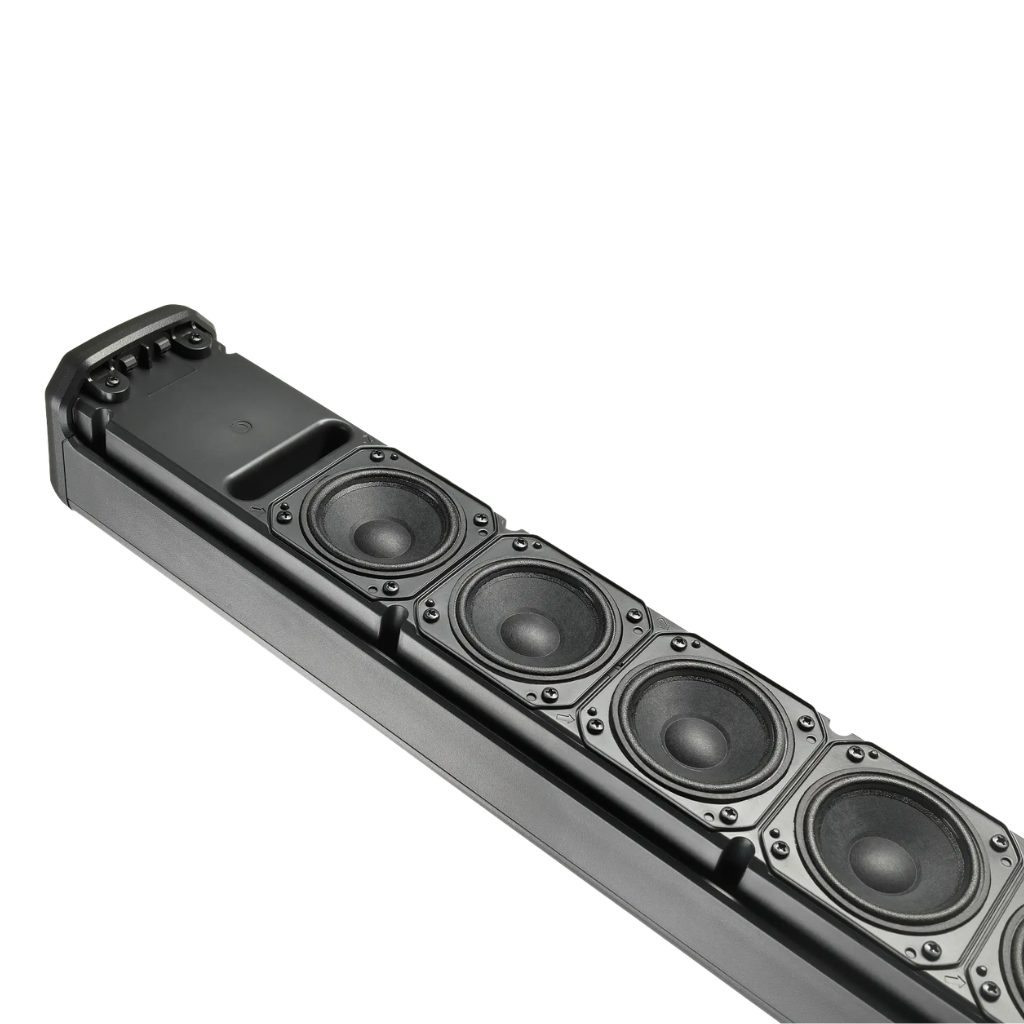

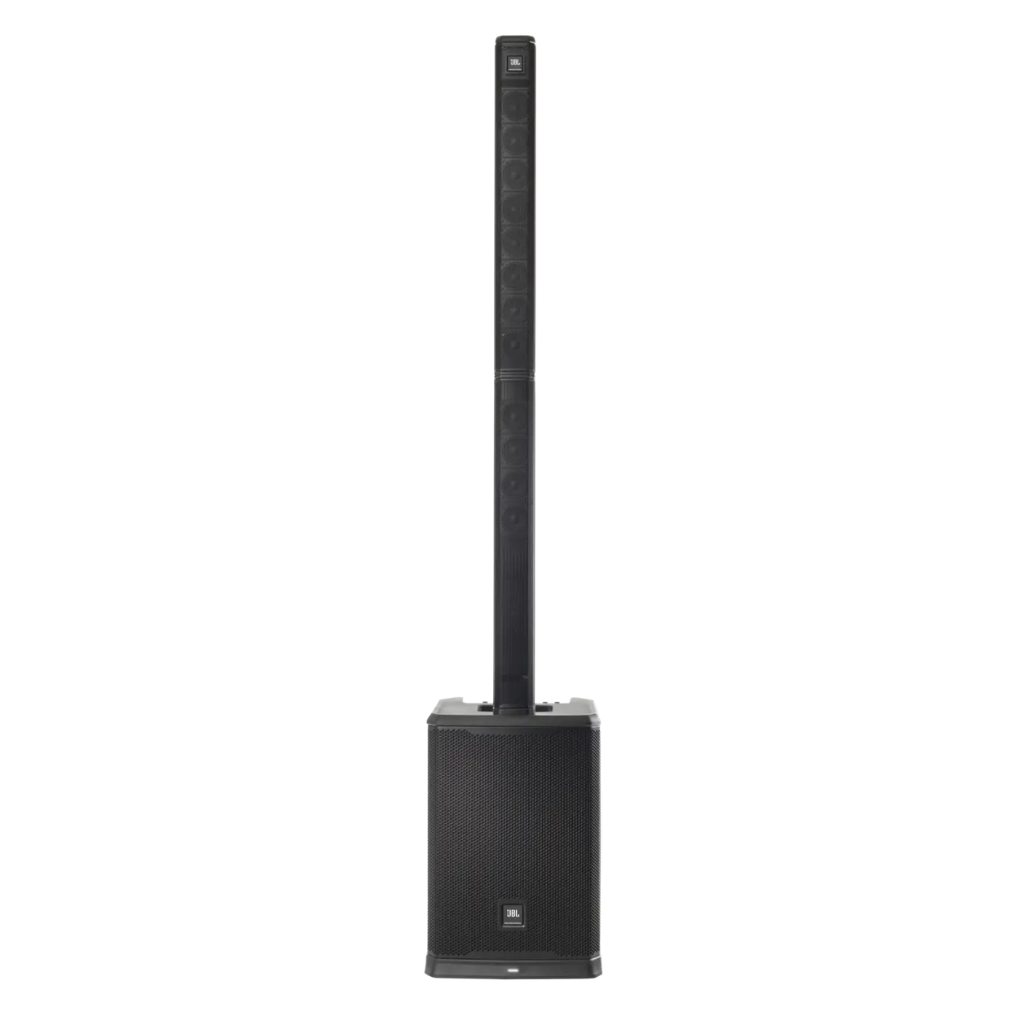

Vertical array of 12 2.5-inch drivers

With PRX ONE, every seat is the best seat in the house: 12 custom-engineered tweeters work in combination with JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology to provide controlled, consistent front-to-back coverage and even response.

Custom-designed high-frequency transducers feature copper-capped pole pieces to reduce inductance for smoother, more precise high-frequency response; HF transducers exhibit less power compression, offering more natural performance without the need for heavy DSP. High-frequency performance is optimized down to 500 Hz, allowing the woofer to deliver a more natural, accurate bass sound. PRX ONE’s acoustically optimized woofer delivers superior performance without DSP, reducing “huffiness.”

Pristine Power at Any Volume

Go ahead, crank it up with confidence, thanks to ultra-efficient amplification that ensures you’ll be heard loud and clear at any volume level. PRX ONE’s 2,000-watt Class D amplifier with power factor correction delivers clean, stable power through various voltages, ensuring longevity of components and reliable operation anywhere. High-quality, high-linearity inductors improve efficiency and minimize total harmonic distortion. And, because the amp is fully bridged, you’ll truly tap its full power potential, with plenty of headroom to handle any scenario.

An All-In-One Control Ecosystem


Get hands-on anywhere with the JBL Pro Connect app, which offers control over every PRX ONE feature from mixing to DSP to Bluetooth functions. Adjust levels from anywhere in the room. Because the app and the mixer are always in sync, you’ll never have to guess where your levels are. Plus, get access to Plus get access to app-only features like speaker grouping, delay tap tempo, and whole speaker snapshots.

Features

  • Vertical array of 12 2.5-inch drivers delivers consistent, even HF response from the front of the room to the back
  • Custom-designed high-frequency drivers feature copper-capped pole pieces to minimize distortion and smooth, natural high-frequency response
  • JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array-shading technology ensures consistent front-to-back coverage
  • Wide, 130° (H) x 30° (V) dispersion pattern delivers consistent coverage across the audience area
  • Sophisticated crossover management and HF/LF coupling allow for more natural low-end response and smooth, uniform response across the entire frequency range

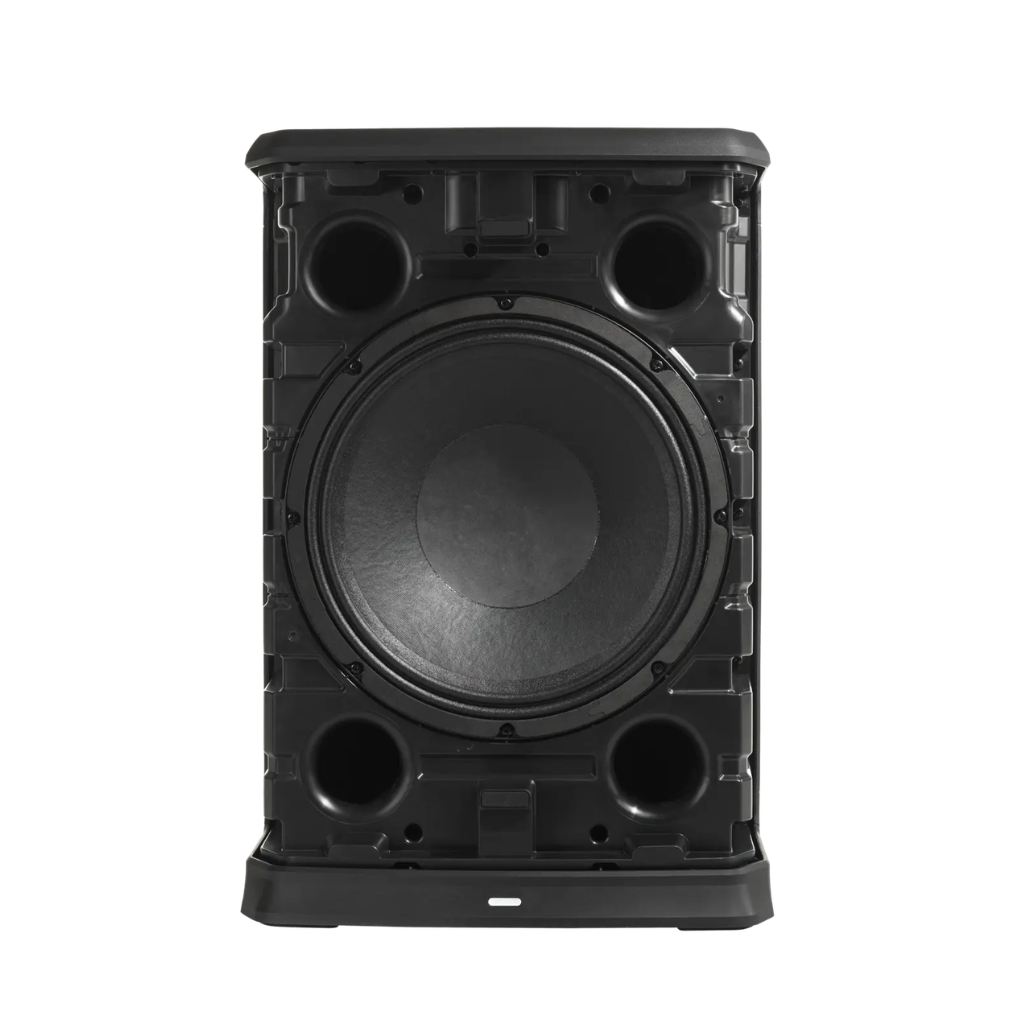

  • 12-inch bass-reflex woofer extends low-end response to 35 Hz
  • 2,000-watt (peak), fully bridged Class D amplifier with power factor correction and high-linearity inductors provides clean, efficient system power, superior headroom, low THD and protection from voltage spikes
  • Four high-efficiency, low-noise microphone preamps maintain constant bandwidth at any gain level
  • 130 dB max SPL

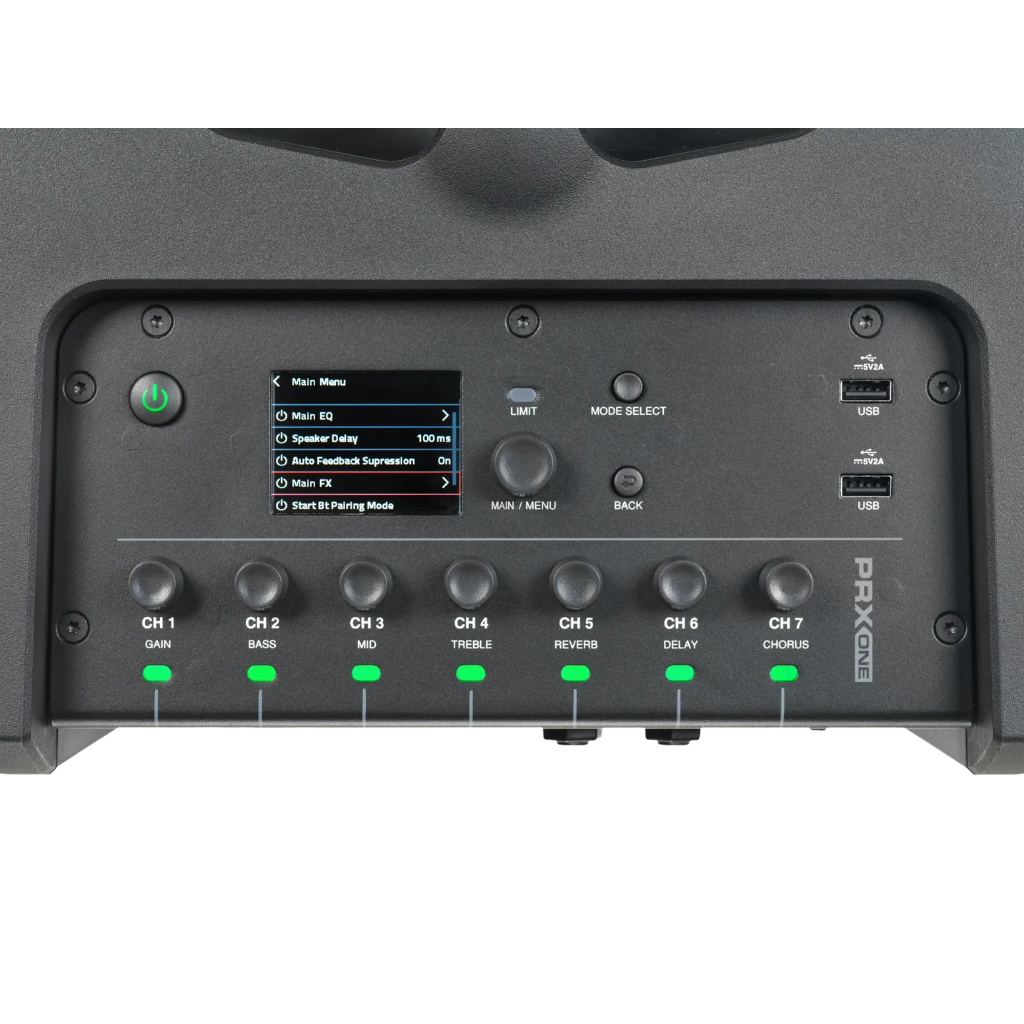

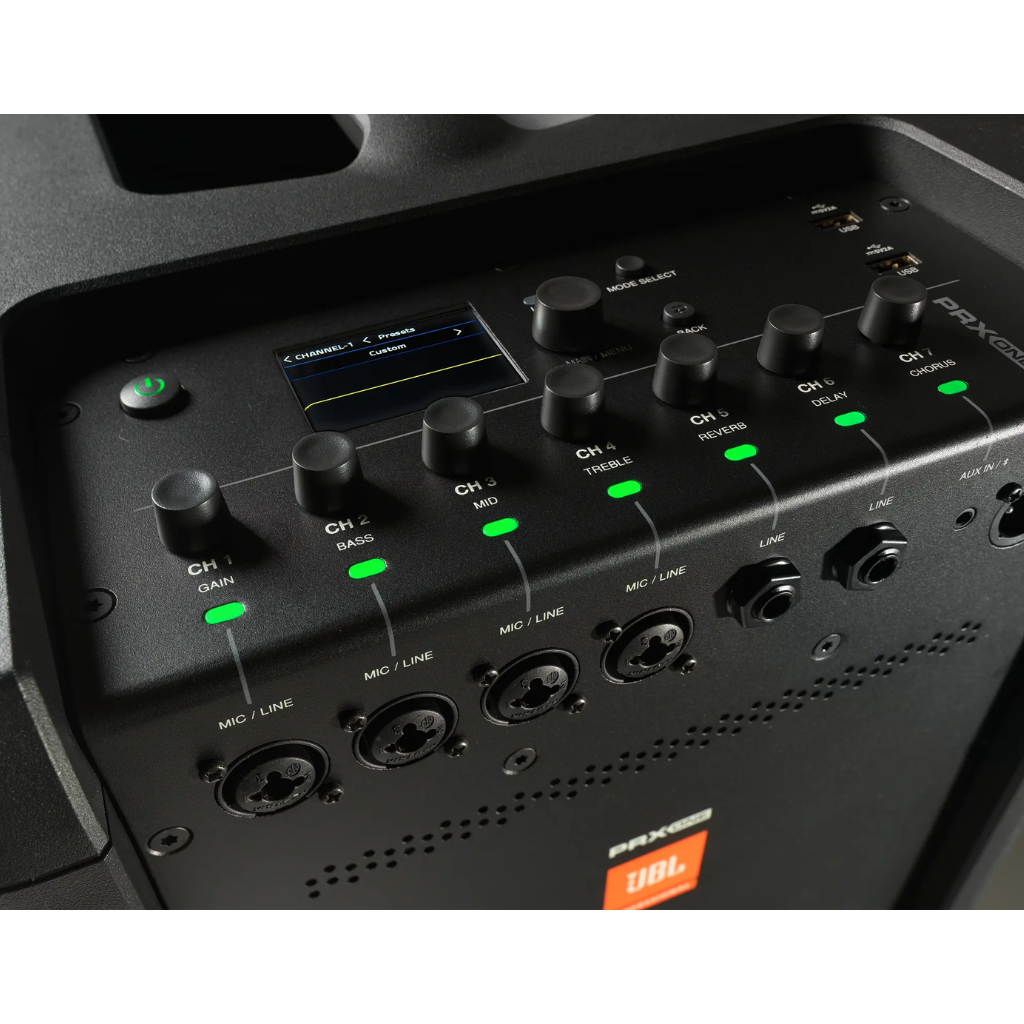

  • Integrated 7-channel digital mixer with dual-operating mode gives users full control of their input faders or individual channel controls like bass, mid, treble and effects sends.

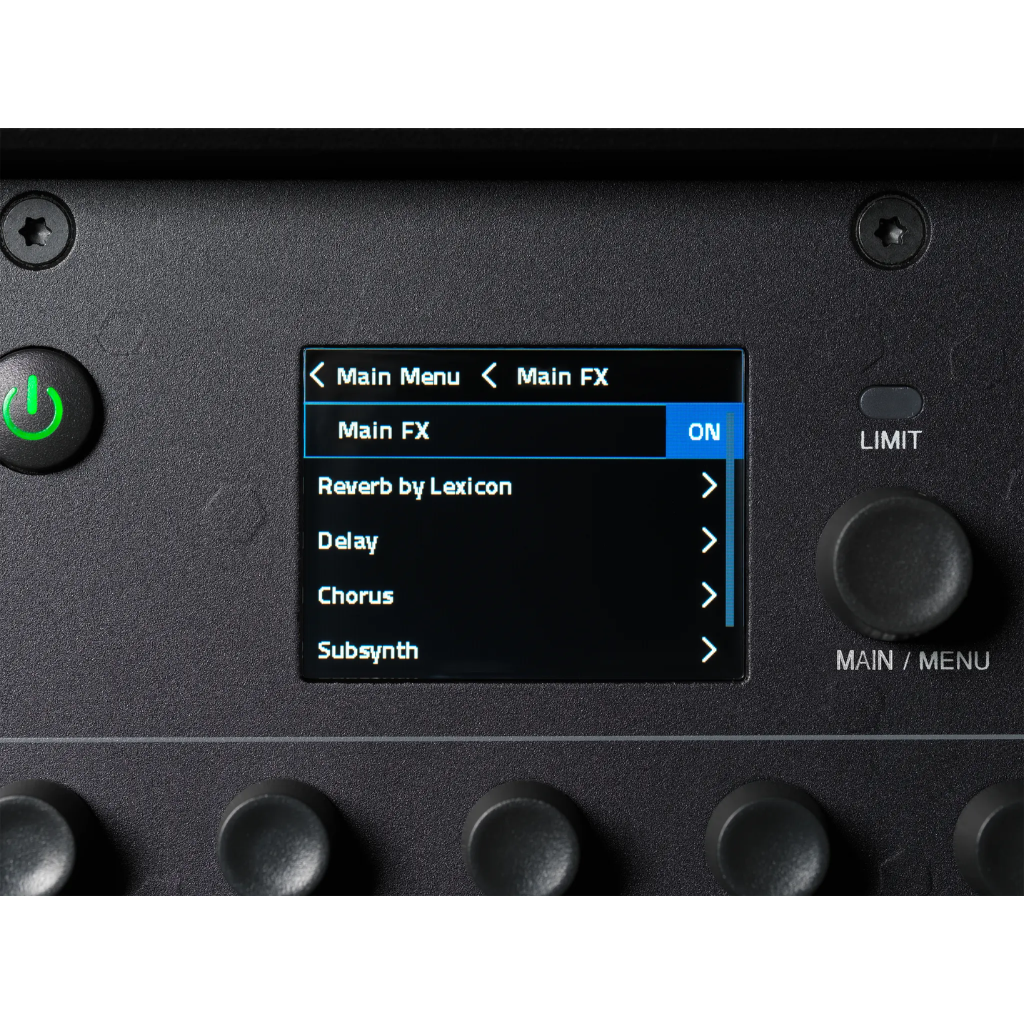

  • Powerful Lexicon effects engine with delay, reverb chorus, echo and sub synth, with presets for easy setup
  • Triple Tier DSP control offers multi-level user experiences based on knowledge level
  • dbx DriveRack Inside technology features AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter, plus gates and compressors on each channel for unrivaled dynamic control
  • One-touch ducking by Soundcraft ensures speech is always heard

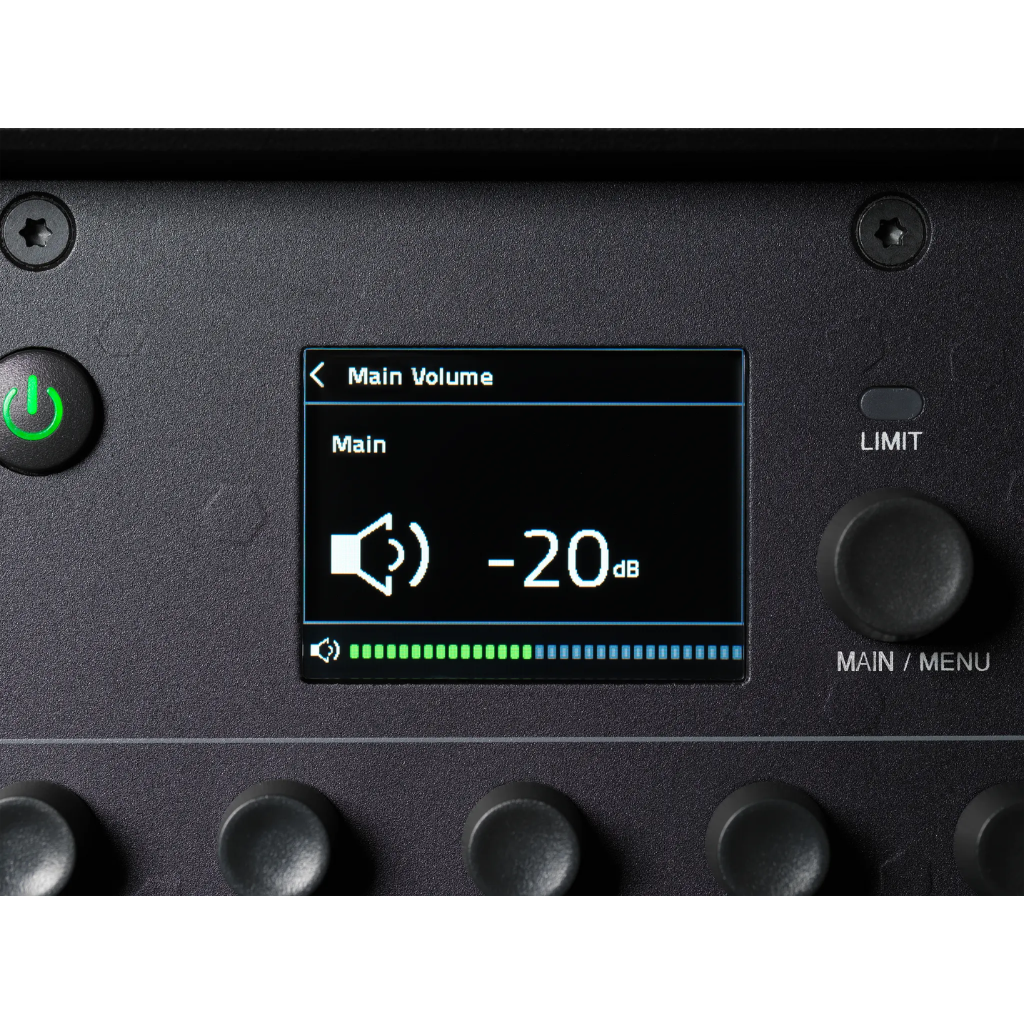

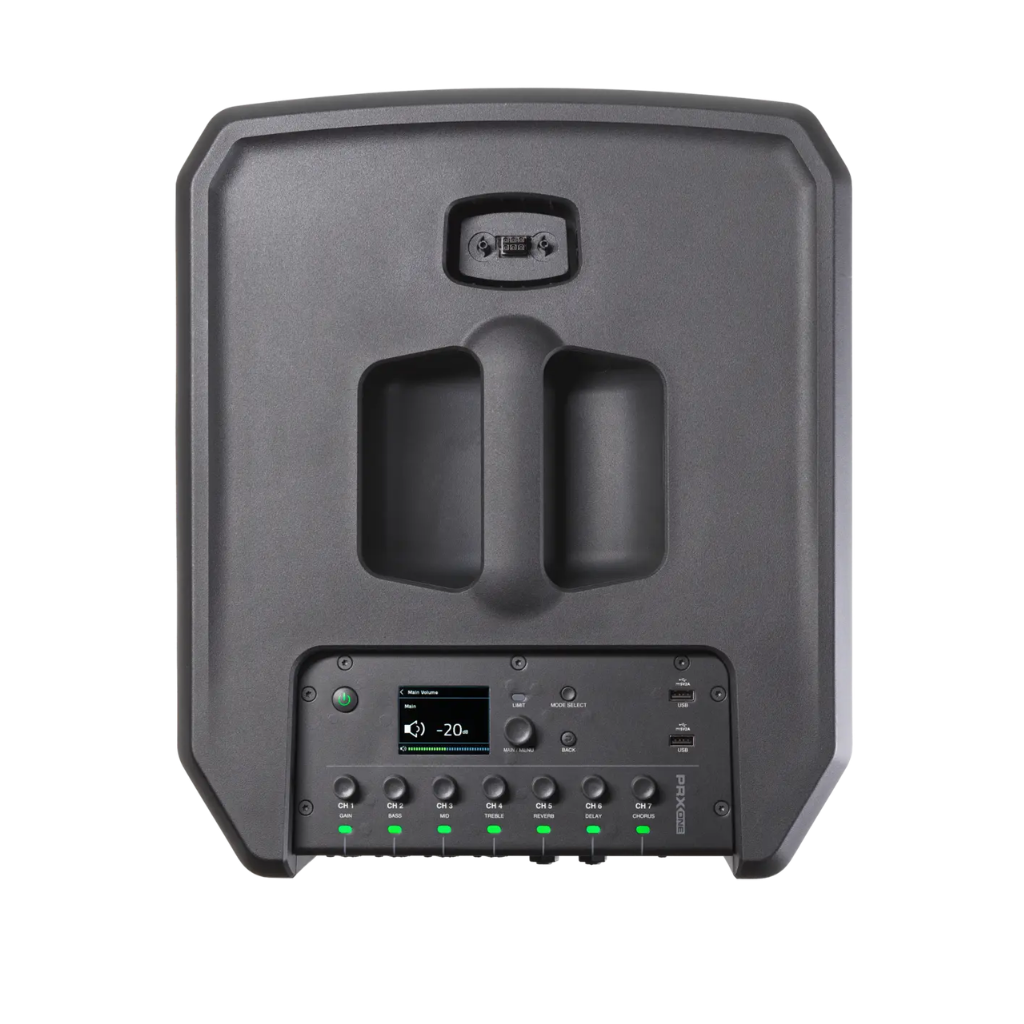

  • Simple, intuitive full-color LCD screen provides easy access to all PRX ONE functions
  • 8 user presets instantly optimize system sound
  • Robust audio connectivity: I/Os include 4 XLR Combo, 2 Hi-Z, 1 1/8-inch/BT audio and 1 XLR Pass Thru
  • 2 USB 2.0 ports charge devices and power AKG wireless systems (with optional JBL adapter cable)
  • Two channels of true +48V phantom power expand microphone support
  • Bluetooth 5.0 connectivity allows remote system control of up to 10 units using the JBL Pro Connect app
  • Full app control using JBL Pro Connect
  • Rugged enclosures withstand the rigors of the road
  • Optional bracket and adapter allow array to be wall or truss-mounted independently of subwoofer for permanent installations

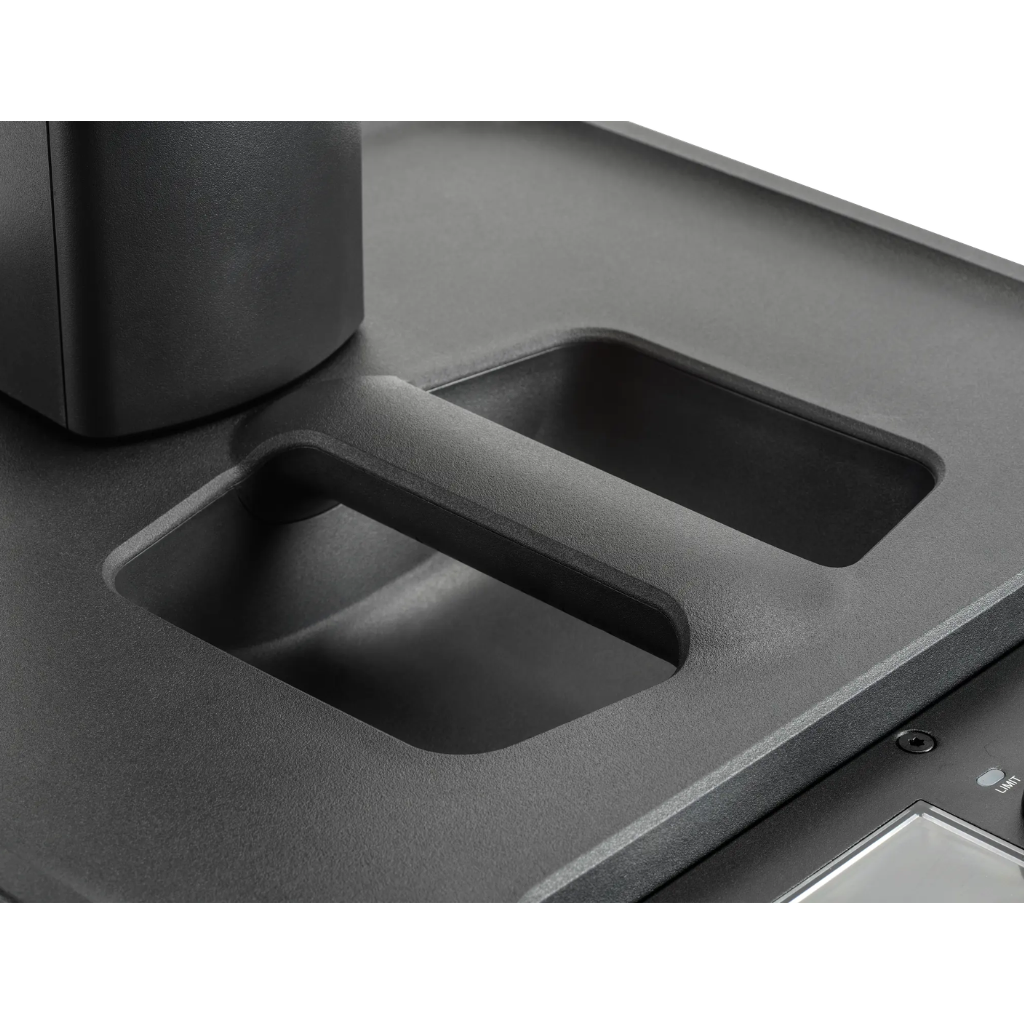

  • Computer-modeled ComfortGrip handle simplifies transport

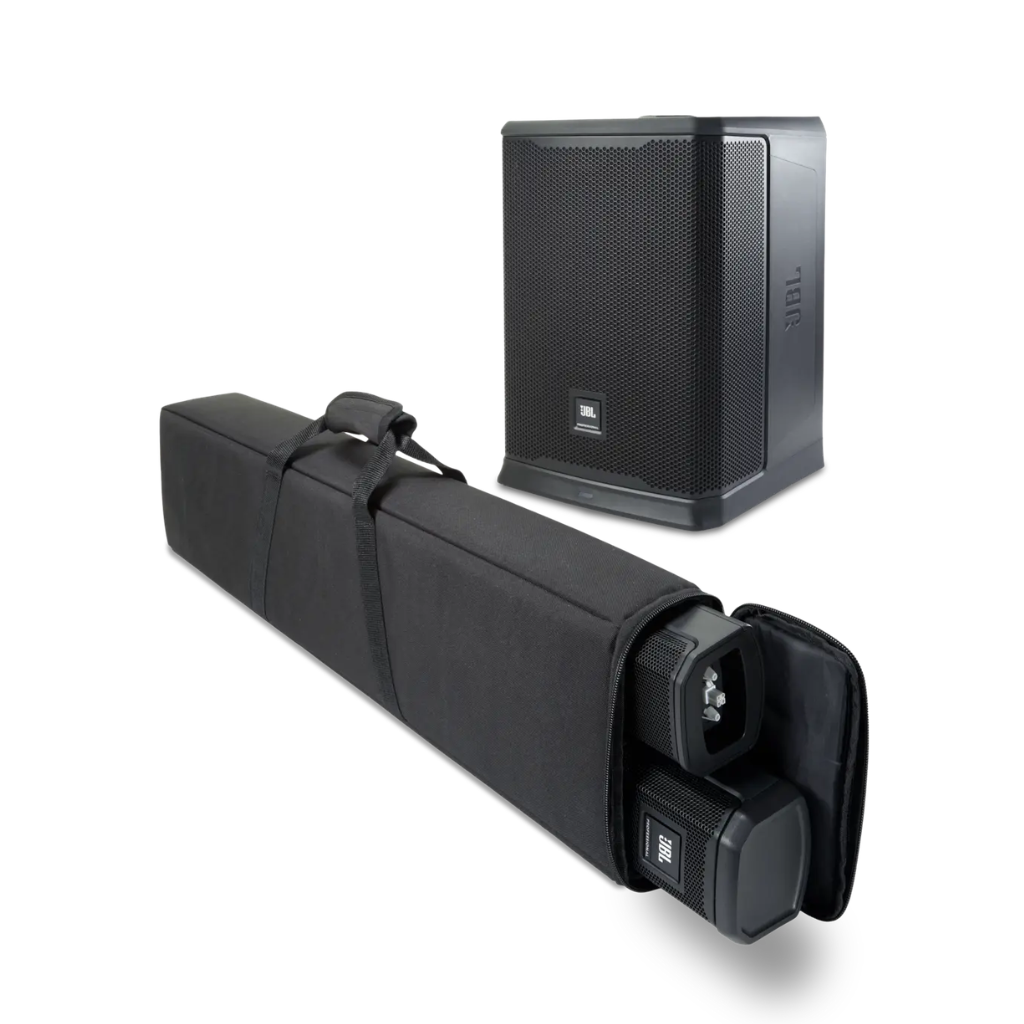

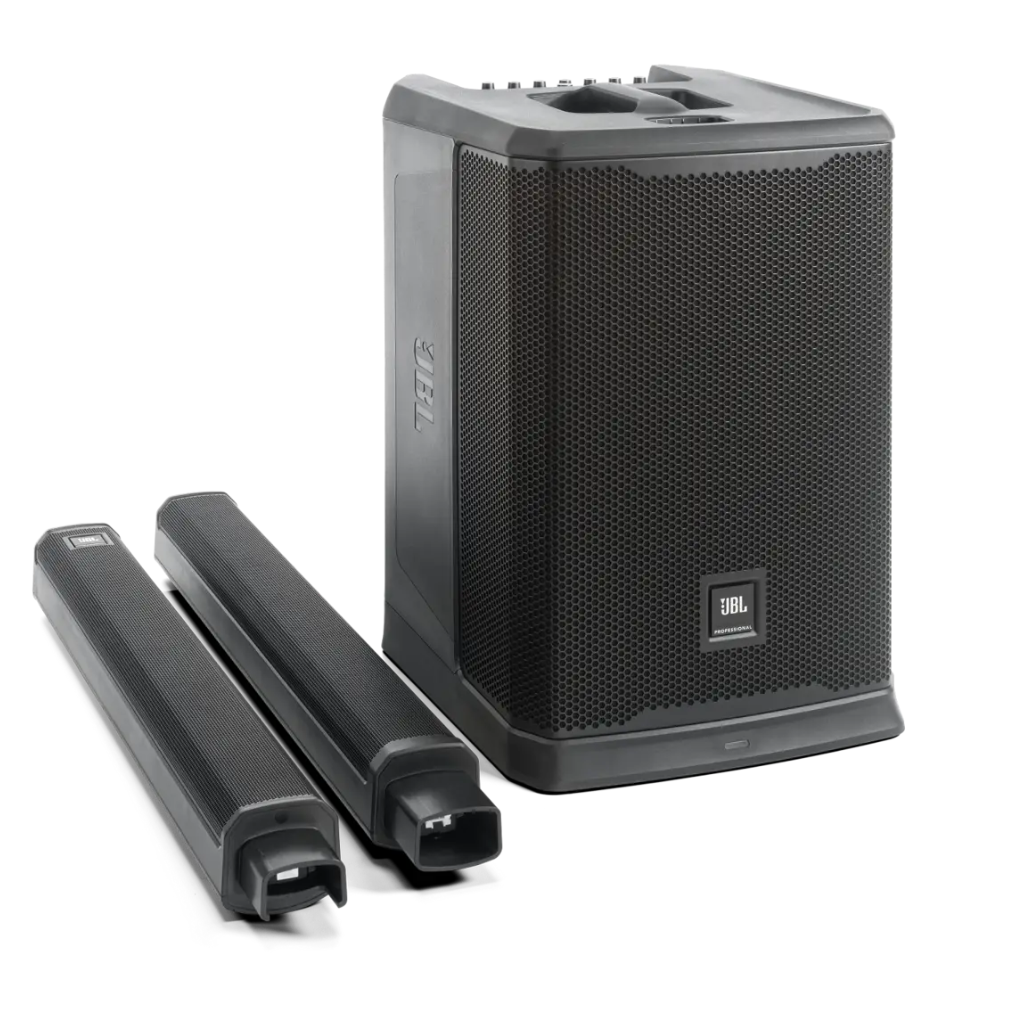

  • Included nylon carrying bag for array
  • Attractive, discreet form factor
  • Weight: 55.65 lbs (25.7 kg)

Specifications

System Type:
Powered Column PA Speaker
Woofer Size:
12"
Tweeter Size:
2.5"
Tweeter Count:
12
Max SPL:
130dB
Freq Range -10:
35-20kHz
Freq Range -3:
40-20kHz
Power Rating:
2000W Peak. 1000W RMS
Input Impedance:
:
4kΩ balanced Combo4kΩ balanced Combo
:
2MΩ balanced Hi-Z Jack2MΩ balanced Hi-Z Jack
:
10kΩ 3.5mm single ended 2 channel.10kΩ 3.5mm single ended 2 channel.
Crossover Frequency:
260Hz
Net Weight:
25.7 kg (56.6 lbs)
Gross Weight:
31.75 kg (69.9 lbs)
Dimensions (H x W x D):
850 mm x 482 mm x 647 mm (33.4 in x 18.9 in x 25.4 in)
