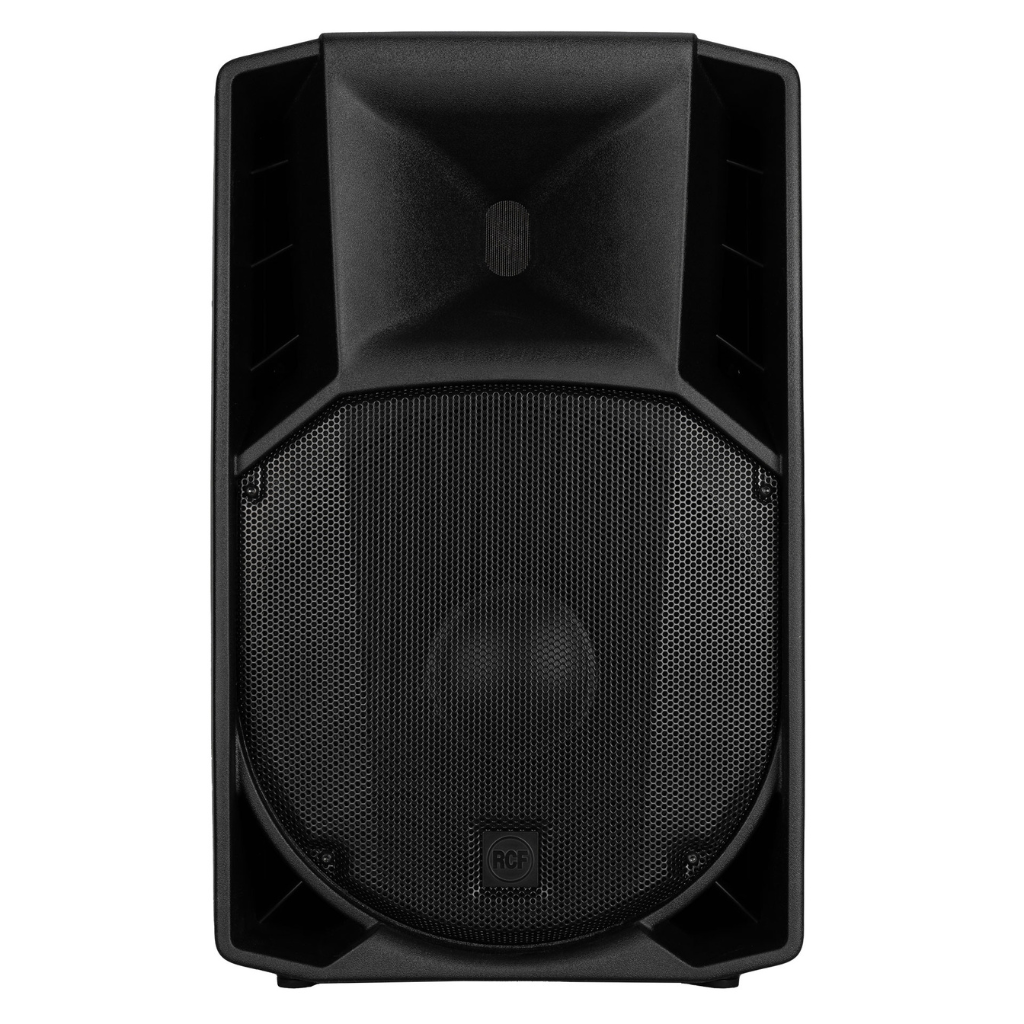

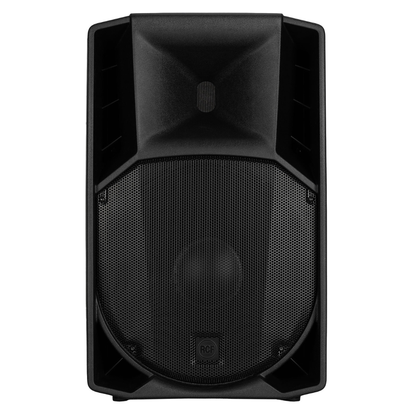

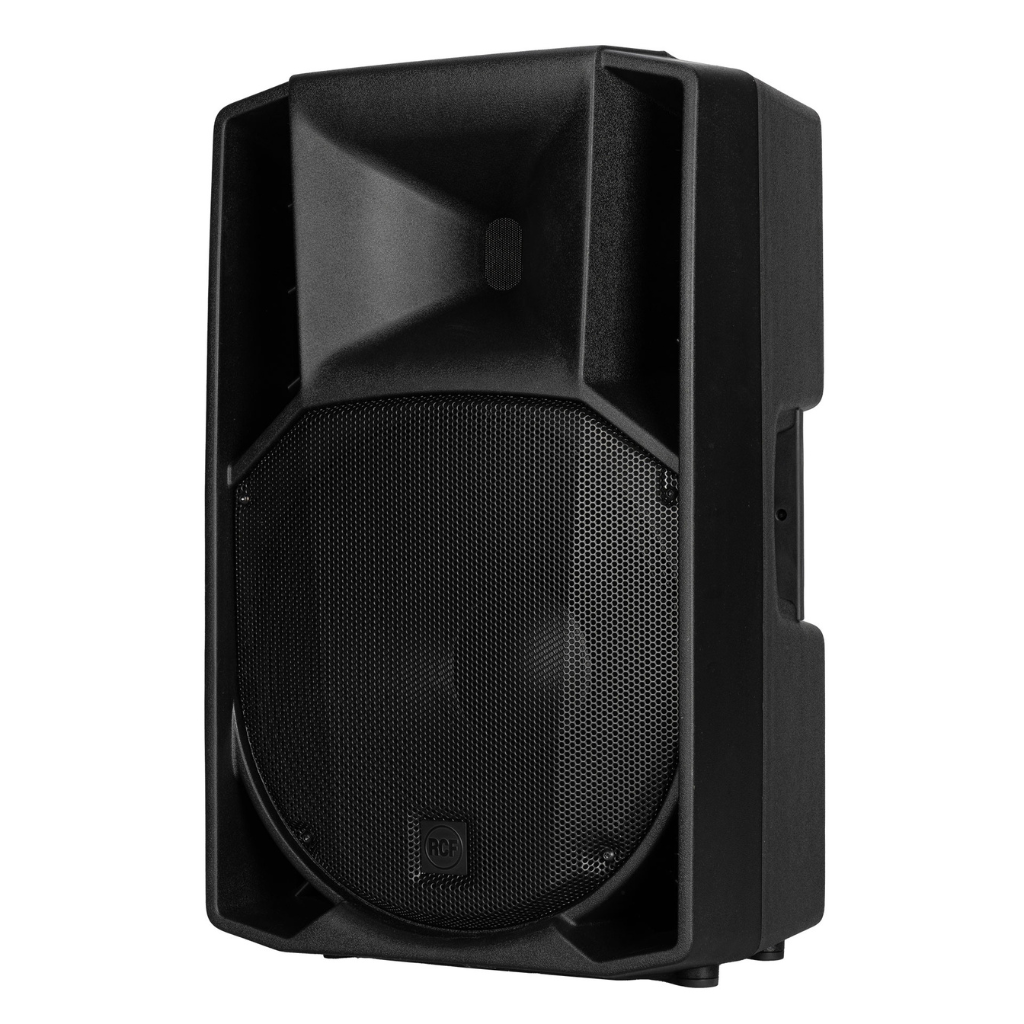

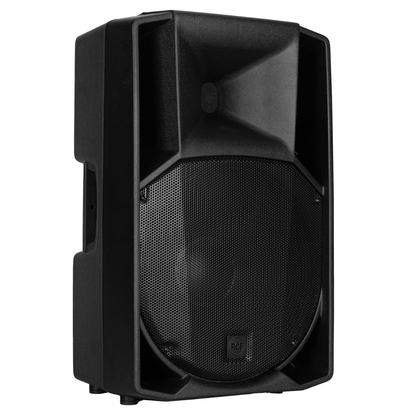

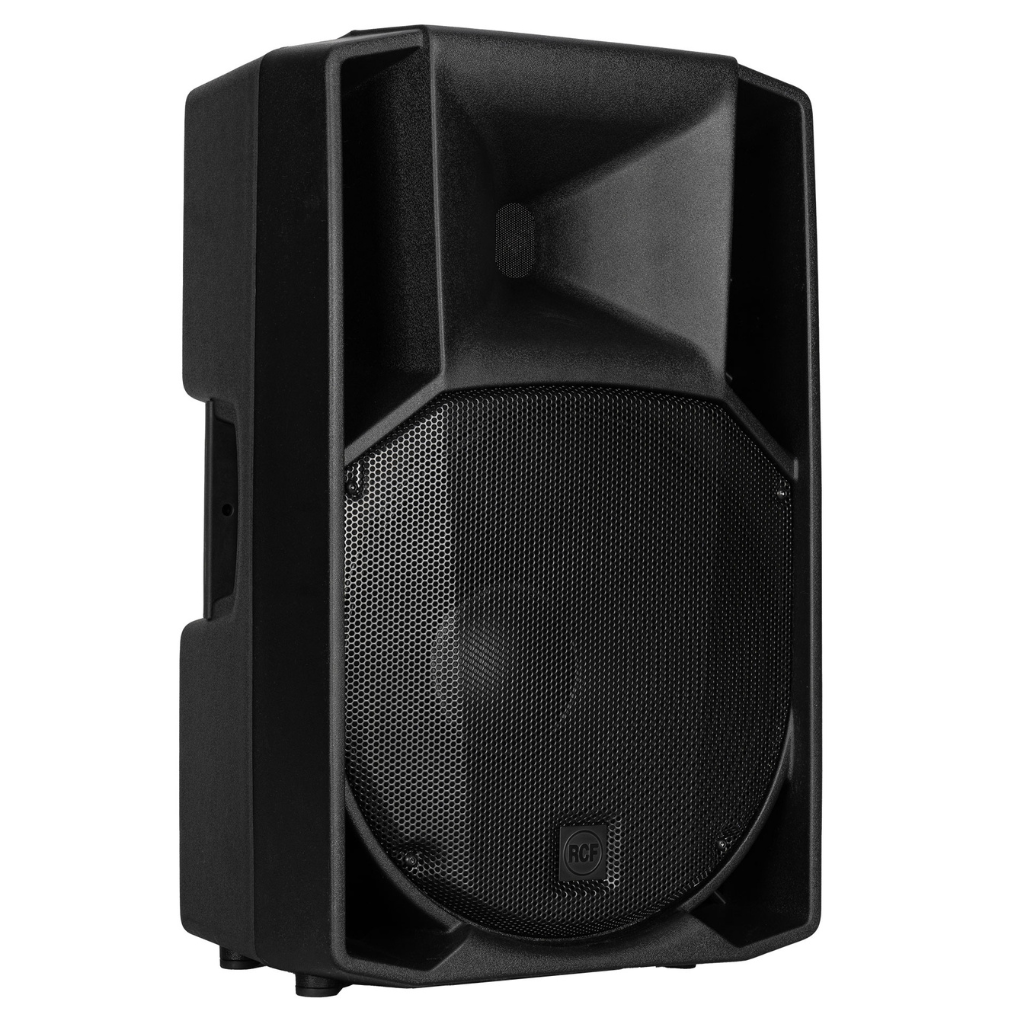

RCF ART 745-A MK5 Active Two-Way Speaker

RCF ART 745-A MK5 Active Two-Way Speaker

SAR 7,299
SAR 6,346.96 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Product Highlights

The RCF ART 745-A MK5 is an industry-leading 1400-watt active two-way PA speaker engineered to deliver class-defining acoustic power, linear phase accuracy, and exceptional vocal projection. Anchored by a massive 4-inch voice coil titanium compression driver that pushes the crossover down to a remarkable 650 Hz, this lightweight powerhouse combines a potent 15-inch neodymium woofer with advanced FiRPHASE processing to ensure transparent, distortion-free coverage up to a piercing 133 dB Max SPL. Outfitted with a rugged polypropylene composite cabinet that doubles as a high-performance stage floor monitor, it stands as the ultimate, travel-ready standalone choice for touring bands, mobile DJs, and professional sound reinforcement providers.

Features

  • Oversized 4" Titanium Neodymium Compression Driver: Outfitted with a premium ND940 pure titanium dome compression driver featuring a massive 4-inch voice coil. This configuration enables a low 650 Hz crossover point, routing almost the entire vocal and midrange spectrum through the horn for pristine vocal articulation, fast transient decay, and long-throw intelligibility.
  • 15" High-Power Neodymium Woofer System: Features a lightweight, high-performance 15-inch neodymium low-frequency transducer with a 3.5-inch voice coil. This Italian-engineered driver maintains high thermal and structural stability under extreme currents, delivering tight, distortion-free sub-bass punch down to 45 Hz.
  • 1400W Bi-Amplified Class-D Power Engine: Driven by a highly efficient, lightweight Class-D amplifier module splitting 1000 watts peak to the woofer and 400 watts peak to the compression driver. The assembly is stabilized by a solid mechanical aluminum frame that provides fanless, silent convection heat dissipation.
  • Advanced FiRPHASE Linear Phase Filtering: Utilizes proprietary, advanced digital FiRPHASE algorithms to optimize the system's amplitude, dynamics, and phase patterns. This advanced processing distributes coherent sound across the entire coverage footprint without phase alignment distortion, keeping system latency at an absolute minimum.
  • Onboard XBoost Low-Frequency Enhancer: Features a simple rear-panel switch to activate the proprietary XBoost algorithm. This processing significantly deepens the perception of richness and low-frequency weight without causing over-excursion or sacrificing the pristine clarity of the woofer's output.

Specifications

Product Model:
RCF ART 745-A MK5
Speaker Type:
Flagship 2-Way Active Loudspeaker
Total Output Power:
700 W RMS / 1400 W Peak
Amplifier Class Type:
Class-D Technology
Low Frequency Driver:
1x 15" Neodymium Woofer (3.5" / 88.9 mm Voice Coil)
Diaphragm Material:
Pure Titanium Dome
Frequency Response Range:
45 Hz to 20,000 Hz
Maximum Rated SPL:
133 dB Peak at 1 Meter
Waveguide Dispersion Angle:
90° Horizontal x 60° Vertical (Constant Directivity Horn)
DSP Core Processing:
FiRPHASE Linear Phase Technology, XBoost Bass Enhancer
Internal Crossover Frequency:
650 Hz (Optimized for Vocal Range Execution)
Hardware Protections:
Soft Limiter, Thermal Management, RMS Overload Protection

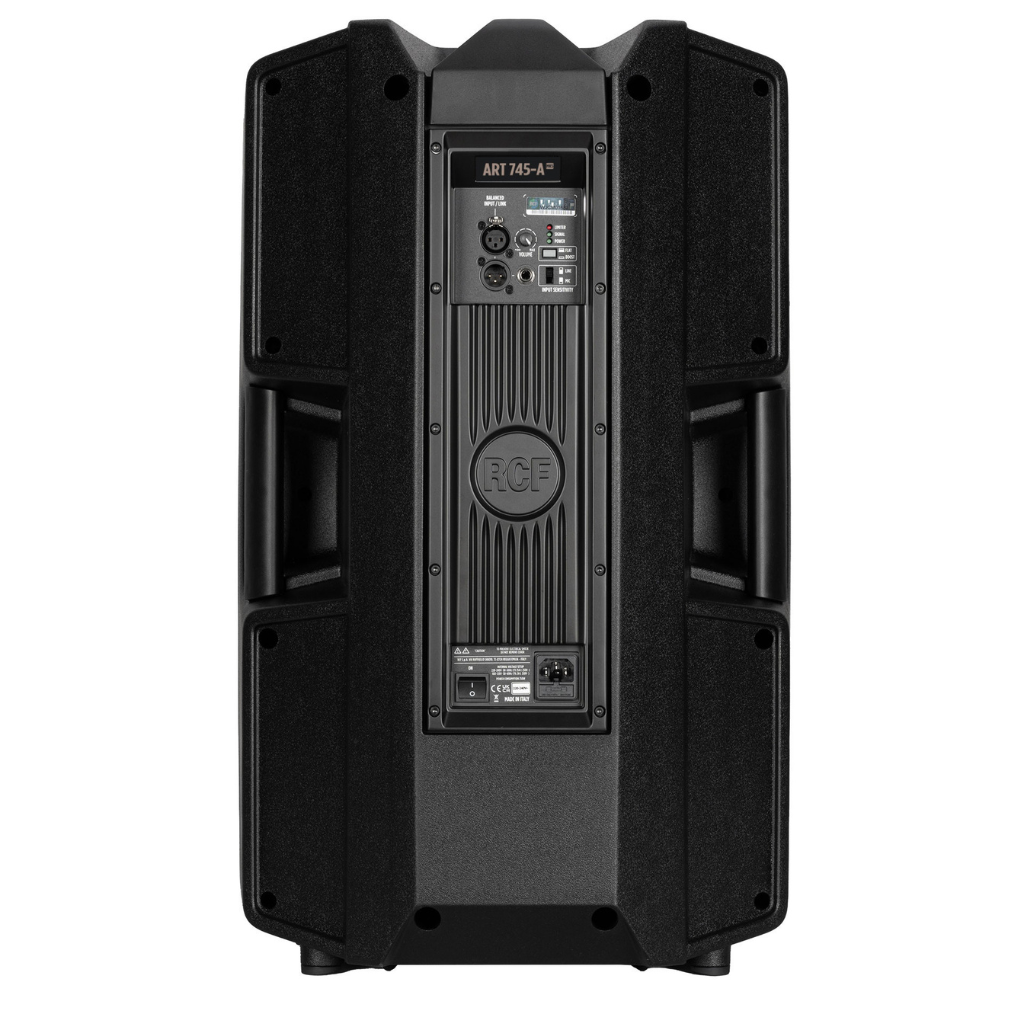

Analog Input Section:
1x Balanced/Unbalanced XLR-1/4" TRS Combo Jack Input
Analog Output Section:
1x XLR Male Loop-Thru / Link Output
Hardware Controls Matrix:
Volume Rotary, Boost/Flat Preset Toggle, Mic/Line Input Sensitivity Switch
Cabinet Enclosure Profile:
Molded Polypropylene (PP) Composite with Multi-Angle Monitor Positioning
Rigging / Mounting Options:
1x 35 mm Bottom Steel Pole Socket, 2x M10 Threaded Flying Points

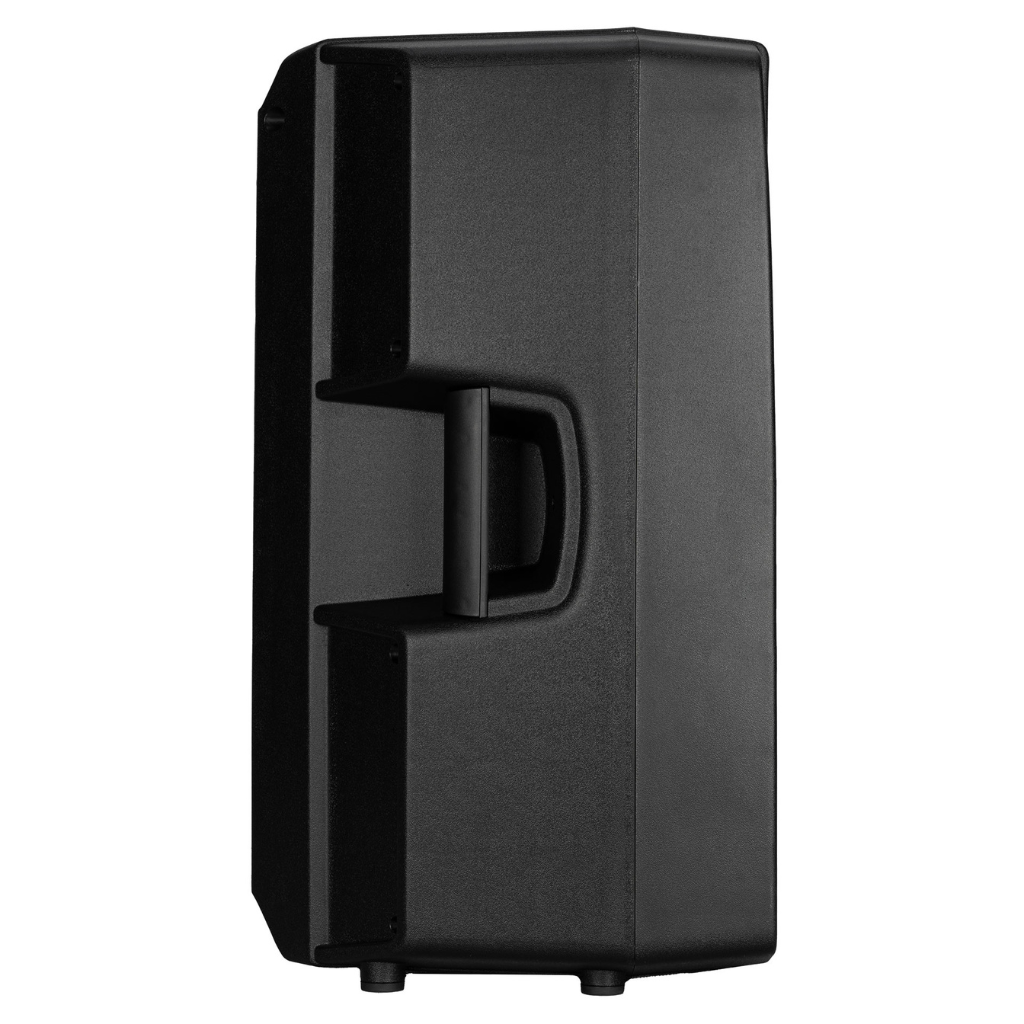

Handle Configuration:
1x Ergonomic Top Handle, 1x Textured Handle on Each Side
Dimensions (H x W x D):
70.8 cm x 43.7 cm x 38.9 cm (27.87 x 17.2 x 15.31 inches)
