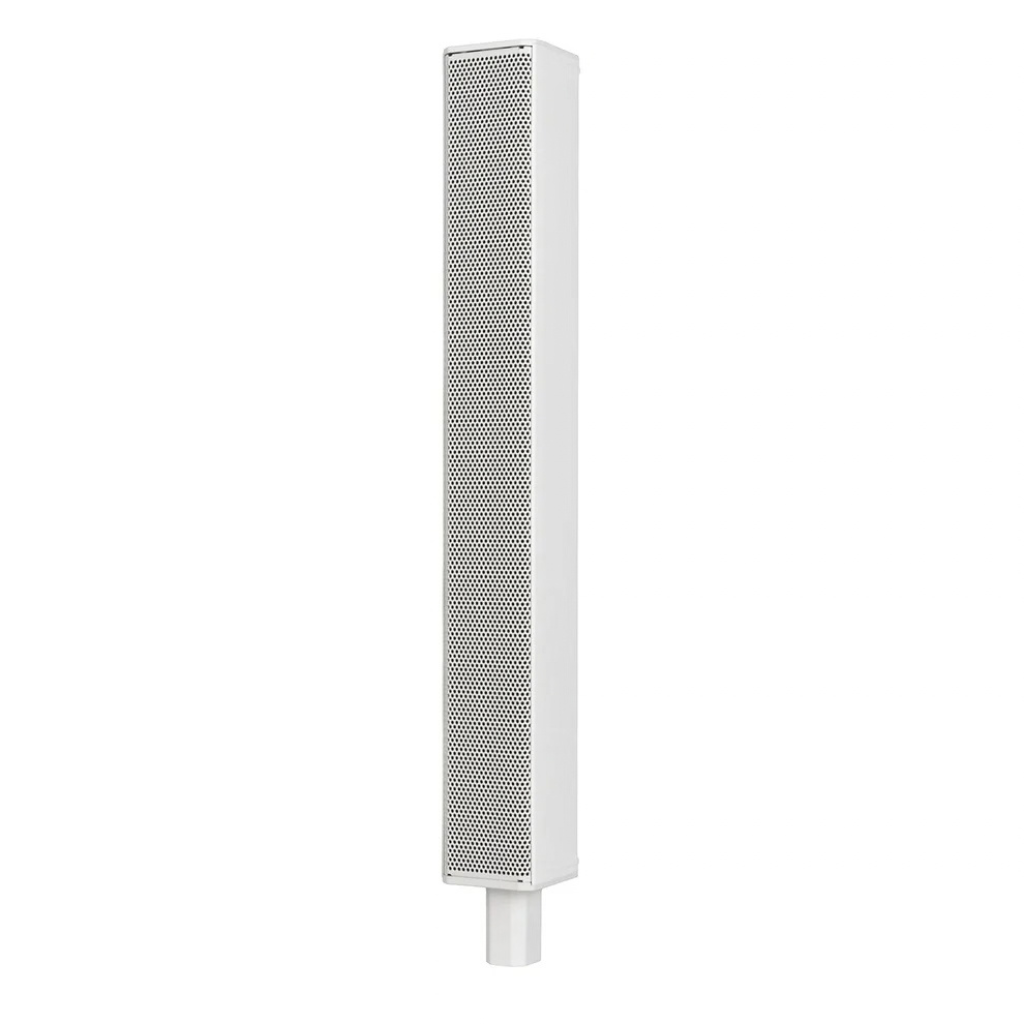

RCF EVOX J9 ACTIVE THREE-WAY PORTABLE COLUMN SPEAKER (White)

RCF EVOX J9 ACTIVE THREE-WAY PORTABLE COLUMN SPEAKER (White)

SAR 6,799
SAR 5,912.17 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 24 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Description

EVOX J9 is an active, three-way portable column system designed for maximum clarity and power in a compact format. A 1.75” compression driver coupled with a 120° × 40° True Resistive Waveguide ensures wide, consistent coverage, while 6 x 3” full-range transducers and a high-power 12” woofer in a bass-reflex enclosure deliver articulate mids and deep, controlled lows. Driven by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 delivers an impressive 130 dB Max SPL output. Part of the EVOX J Series, it incorporates RCF’s tour-grade technology into a sleek, unobtrusive package that delivers crystal-clear vocals, natural musical response, and effortless deployment for bands, DJs, and live performers.

Fast Transients. Zero Compromise.

Highly energy-efficient, the J9 requires no cooling fan. The amplifier is mounted on a solid aluminum heat exchanger at the rear of the unit and has no moving parts. Mechanically coupled to the internal frame, the amplifier is securely braced within the cabinet for long-term reliability.

The input stage features a new low-distortion design with an advanced safety limiter that preserves the input signal's character at any level. EVOX J9 amplifier is designed in accordance with EN 62368-1 for maximum safety and feature a switch-mode power supply (SMPS) that combines high efficiency with minimal weight.

True 3-Way Design

Neodymium compression driver (1.75” voice coil, Kapton dome) with a True Resistive Waveguide (TRW) for a resonance-free load and constant 120° X 40° coverage.

Features

  • 130 dB Max SPL
  • 2100 W Class-D Amplifier - Built-In DSP
  • 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
  • 6 × 3” Full-Range Neo Transducers
  • 12” High-Power Woofer
  • Enhanced Coverage And Clarity
  • Composite Cabinet With Aluminum Stand Mount
  • Sleek, Road-Ready Design
  • Top Speaker Padded Carrying Bag Included
  • J9 Sub: 20,2 kg - 44.53 lb / J9 Top: 5.8 kg - 12.78 lb

Specifications

Model:
RCF EVOX J9
System Type:
Active Three-Way Column PA System
Low Frequency Driver:
12" Woofer (2.5" voice coil)
Midrange Drivers:
6 x 3.0" Neodymium Drivers (1.0" voice coil)
High Frequency Driver:
1 x 0.75" Neodymium Compression Driver (1.75" voice coil)
Total Power:
2100 W Peak (1400W LF / 700W HF)
Frequency Response:
40 Hz – 20,000 Hz
Max SPL @ 1m:
130 dB
Input Connectors:
Combo XLR / 1/4" Jack (Balanced/Unbalanced)
Output Connectors:
XLR Link Out
Cabinet Material:
PP Composite with Steel Grille
Total Dimensions (H x W x D):
2080.1 x 350 x 462.6 mm (81.89" x 13.78" x 18.21")
Total System Weight:
26 kg (57.32 lbs)
