RCF EVOX JMIX8 Active Two Way Array Music System

RCF EVOX JMIX8 Active Two Way Array Music System

SAR 6,299
SAR 5,477.39 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Product Highlights

Command mainstage sound coverage and complete mixing control from a single compact unit with the RCF EVOX JMIX8 Active Column Array System. Fusing an explosive 1400-watt Class-D amplifier and a 12-inch sub with an integrated 8-channel digital mixer, this all-in-one system eliminates the need for external mix racks, processors, or DI boxes. Driven by RCF's advanced FiRPHASE linear phase technology, onboard Z.CORE digital effects, and wireless app remote control, the EVOX JMIX8 delivers crystal-clear vocal clarity, deep bass impact, and effortless setup for touring musicians, mobile DJs, and event venues.

Superior transducers

HIGH FREQUENCIES - The ultra-compact full-range 2” RCF drivers are capable of handling high SPL and power with a stunning sound performance.

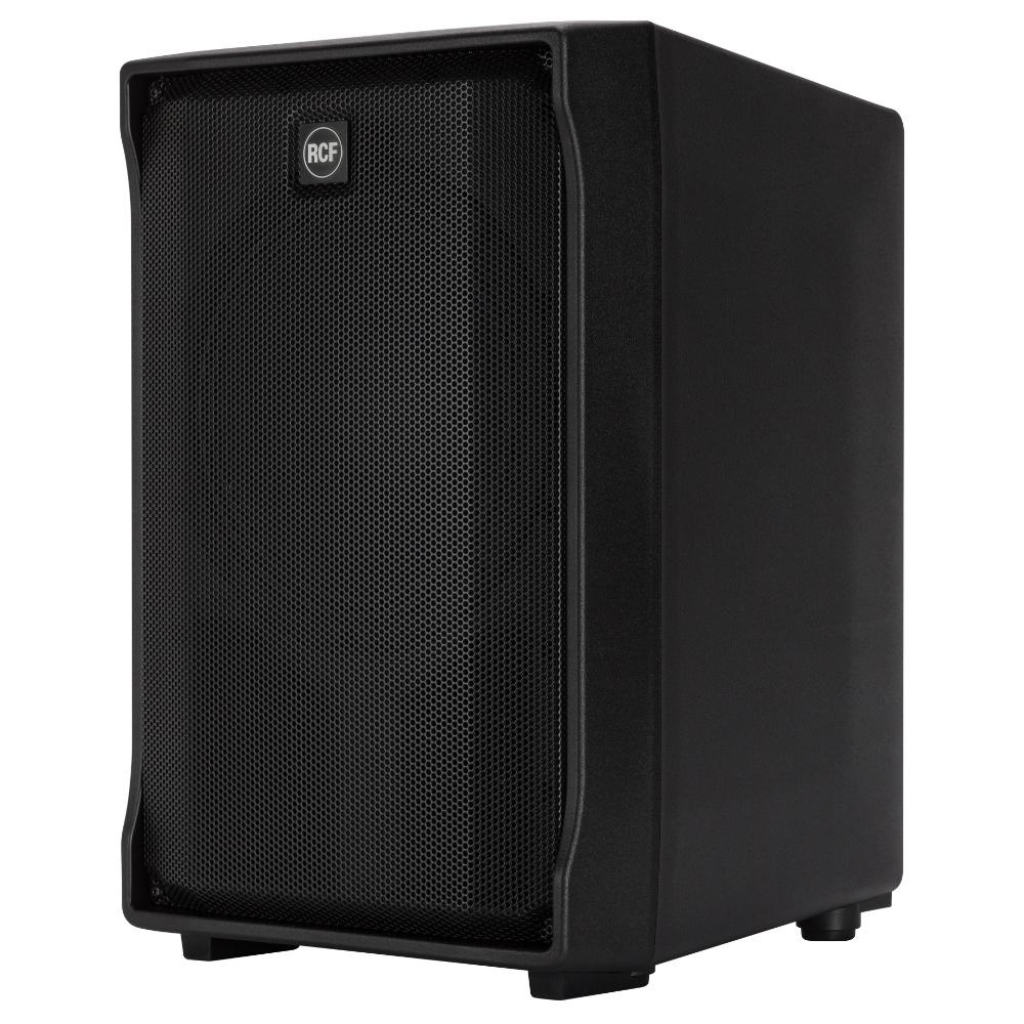

LOW FREQUENCIES - The high excursion 12” RCF woofer extends to the lowest frequencies offering quick and precise punch. The bass-reflex port design avoids air turbulence reducing distortions. The EVOX design features constant directivity coverage of 120°x30°(HxV), providing a perfect coverage pattern. The vertical array is progressively shaped to guarantee consistent sound coverage from the first row to the last.

Ready to play in a few simple steps

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

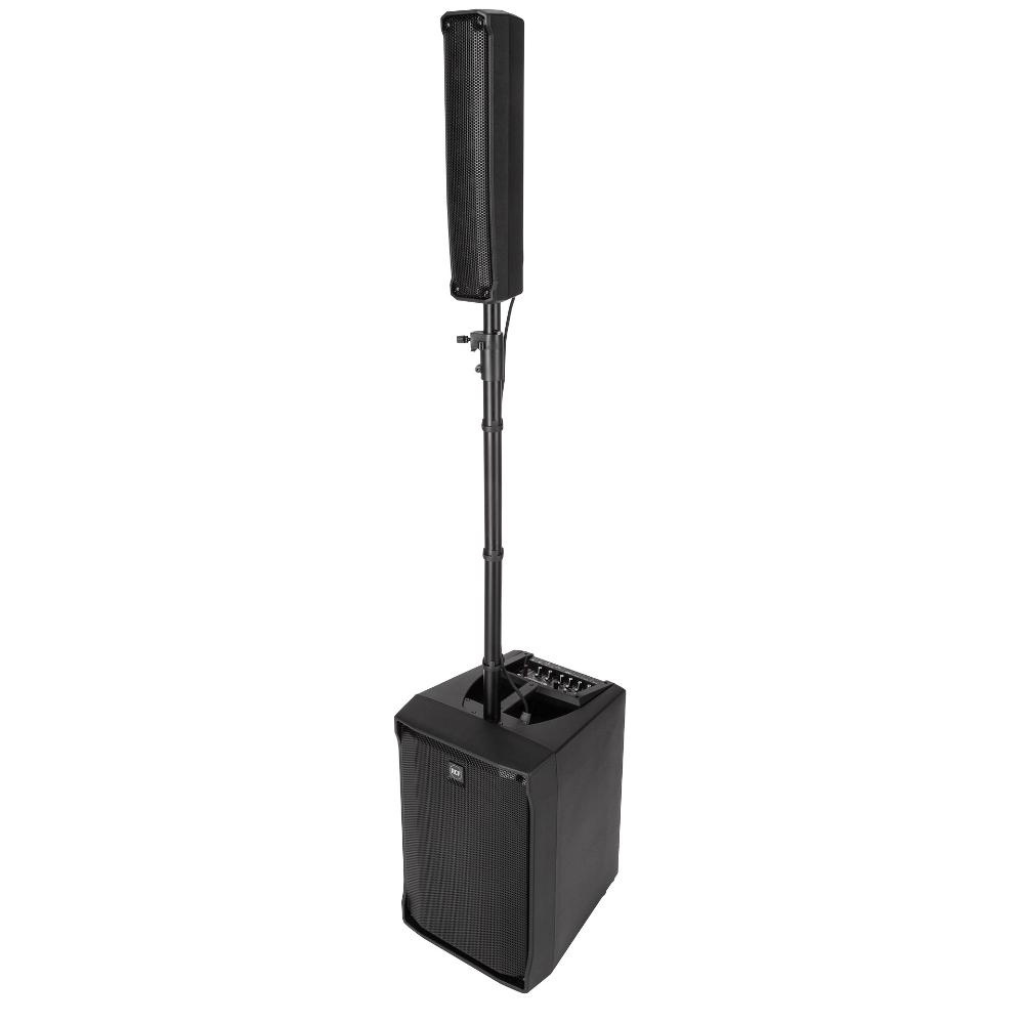

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

J system configurations

From solo musicians to big DJ parties, the EVOX J system flexibility is a must. Thanks to the multiple outputs and the FiRPHASE processing with 0° phase response, reaching the best listening experience on any venue is an easy task. Check out some standard configurations to understand the system set-up.

Product Features

  • Powerful 1400W Bi-Amplified Class-D Engine: Generates up to 128 dB peak SPL with clean dynamic headroom, splitting power efficiently between the 12-inch woofer and eight 2-inch full-range column drivers.
  • Integrated 8-Channel Digital Mixer: Features 4 combo XLR-1/4" mic/line inputs (with phantom power), 1 Hi-Z instrument input, stereo line inputs, and Bluetooth® wireless audio streaming.
  • Onboard DSP, FX & Guitar Amp Modeling: Loaded with studio-grade Z.CORE DSP effects—including reverbs, delays, modulation, 7-band graphic EQs, and realistic Overboost guitar amp simulations.
  • FiRPHASE Linear Phase Processing: Uses proprietary RCF FiRPHASE algorithms to deliver coherent, transparent sound reproduction without phase distortion across the entire coverage area.
  • Ultra-Portable Composite Enclosure: Features a durable, lightweight polypropylene composite cabinet with a built-in carry handle and a pole-mount storage slot directly inside the subwoofer housing.

Specifications

Product Model:
RCF EVOX JMIX8
System Architecture:
Active 2-Way Portable Column Array with 8-Channel Digital Mixer
Amplifier Power Rating:
1400 Watts Peak / 700 Watts RMS (1000W Peak LF + 400W Peak HF)
Max SPL Capacity:
128 dB Peak
Frequency Response Range:
40 Hz to 20,000 Hz
Low-Frequency Driver:
12-inch Woofer with 2.5-inch Voice Coil
High-Frequency Drivers:
8 x 2.0-inch Full-Range Neodymium Drivers with 1.0-inch Voice Coil
Coverage Angle (H x V):
120° Horizontal x 30° Vertical
Integrated Mixer Channels:
8 Channels (4 x Mic/Line, 1 x Hi-Z, 1 x Stereo Line, Bluetooth)
Digital Processing & FX:
28-Bit Z.CORE DSP Engine (Reverbs, Delays, Amp Simulators, 7-Band EQ)
Wireless & App Control:
Bluetooth® Audio Streaming + EVOX App Control (iOS / Android)
Phase / Crossover Processing:
FiRPHASE Linear Phase Technology (Crossover @ 220 Hz)
Enclosure Material:
Polypropylene Composite Cabinet with Steel Grille
System Dimensions (H x W x D):
625 x 400 x 460 mm / 24.6" x 15.7" x 18.1" (Subwoofer)
Total Hardware Weight:
24.4 kg (53.8 lbs)
Color Finish Profile:

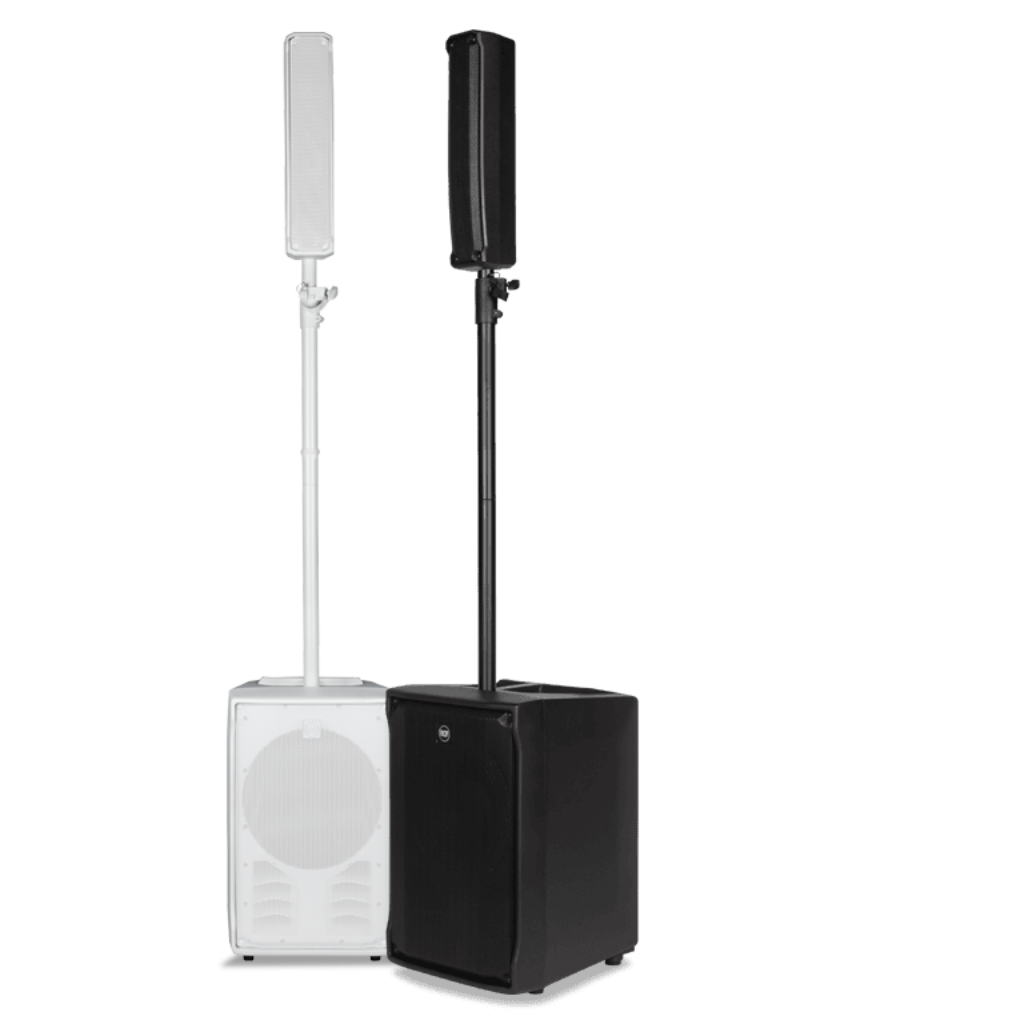

Matte Black Industrial Composite (Also available in White - JMIX8 W)
