Product Highlights
Our Iconic Original Studio Microphone, Reborn
Game-changing Connectivity
Classic Sound on the Cutting-edge
The Digital Studio of the Future
The âUnclippableâ Microphone
Versatility Like No Other
Craft Your Sound
Everything You Need to Start Recording
Product Features
Specifications
Product Model:

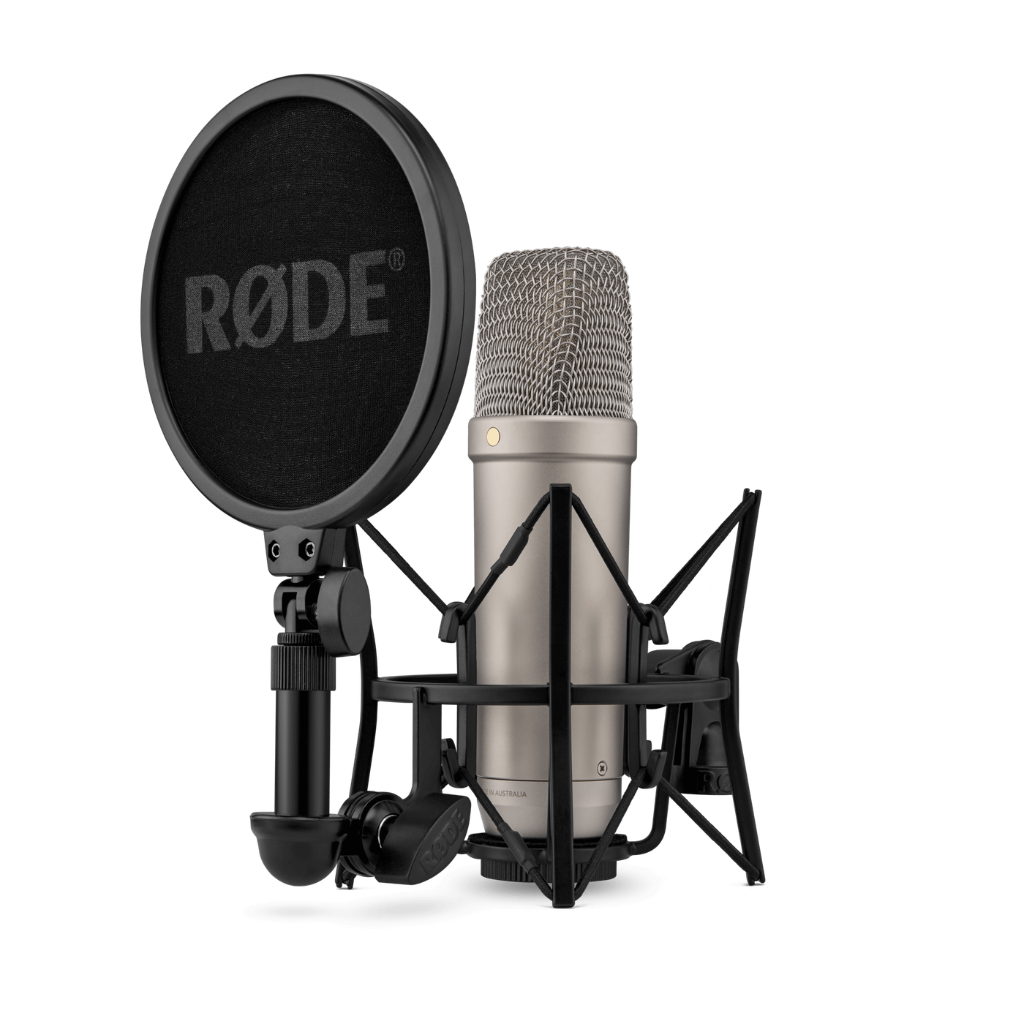

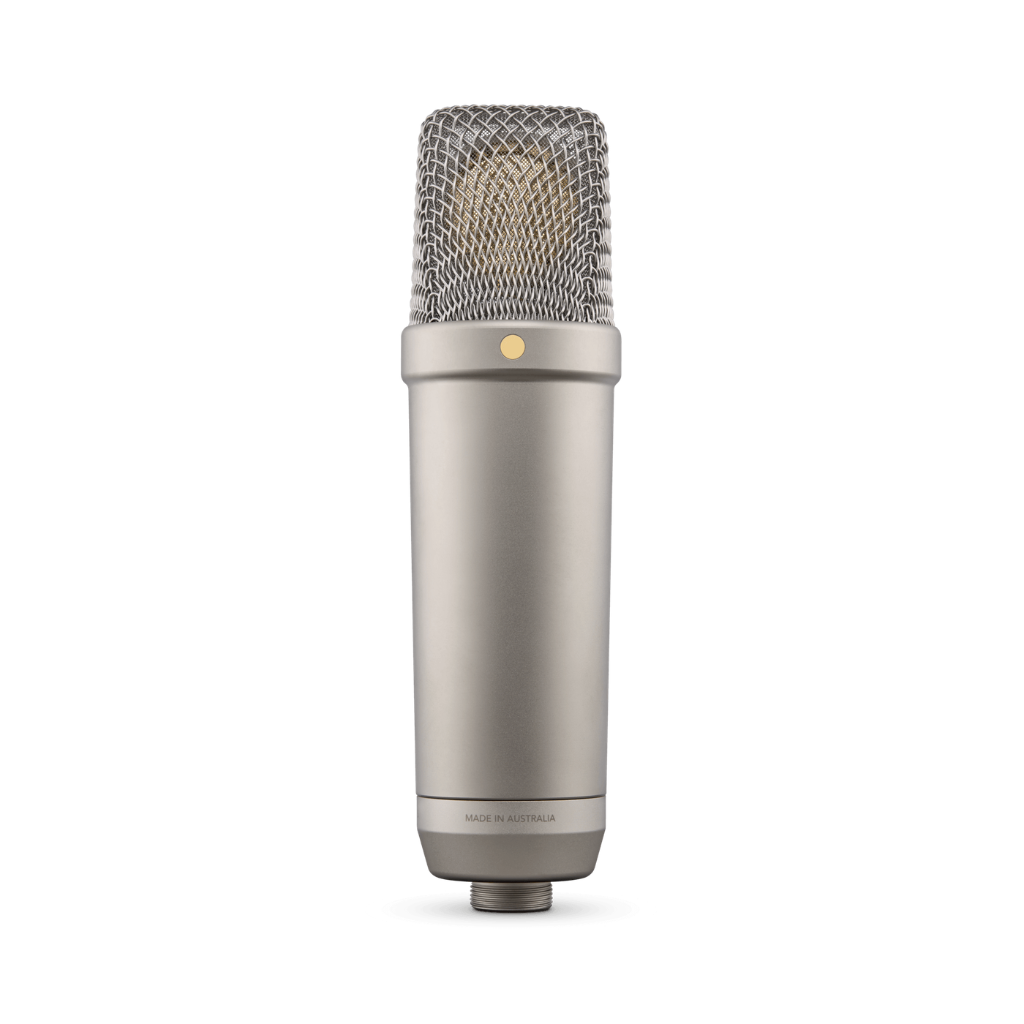

Rode NT1 5th Generation
Acoustic Operating Principle:
Large-Diaphragm Externally Polarized Condenser
Capsule Transducer Core:
1.0-inch (25 mm) HF6 Gold-Sputtered Diaphragm
Directional Polar Pattern:
Cardioid
Frequency Response Range:
20 Hz to 20,000 Hz
Analog Input Connection:
3-Pin XLR Male (Standard 48V Phantom Power Required)
Digital Input Connection:
High-Speed USB-C (Handles 5V Bus Power and Data Streaming)
A/D Digital Conversion Core:
High-Resolution 24-bit / 32-bit Float Processing
Available Sample Rates:
48 kHz / 96 kHz / 192 kHz Sampling Supported
Maximum Rated SPL Capacity:
142 dB SPL (Analog XLR Connection Limit)
Digital Preamp Hardware:
High-Definition, Ultra-Low-Noise Revolution Preamp
Onboard Digital Processing:
Integrated APHEX DSP Core (Exciter, Big Bottom, Comp, Gate, EQ)
Chassis Shell Composition:
Machined Aerospace-Grade Aluminum with Scratch-Resistant Finish

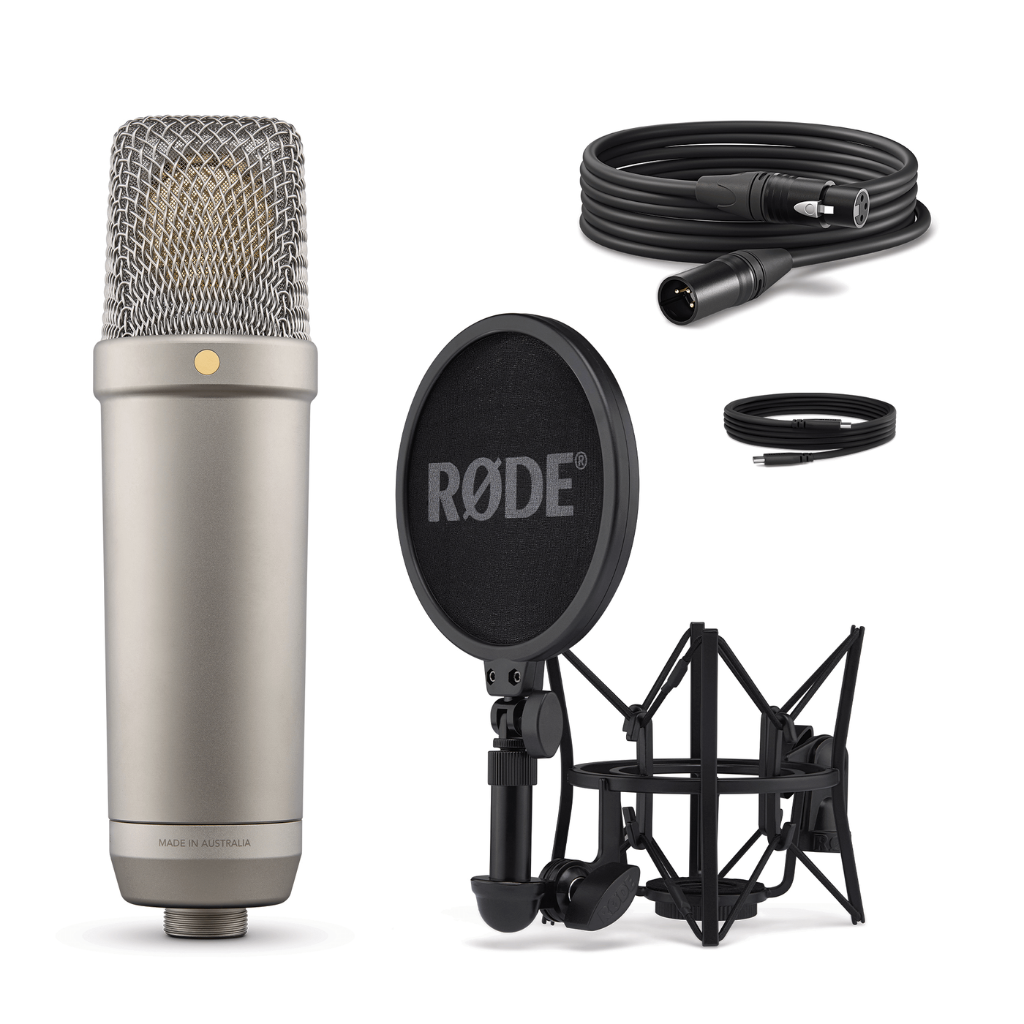

Included Accessories:
SM6 Studio Shock Mount with Integrated Pop Filter, XLR Cable, USB-C Cable
Dimensions (H x W x D):
18.9 cm x 5.2 cm x 5.2 cm (7.44 x 2.04 x 2.04 inches)
Weight:
308 grams (10.86 ounces)
