Product Highlights
The World’s Most Popular Studio Microphone
Iconic Signature Sound
A True Workhorse
Legendary RØDE Quality
Premium Accessory Kit
NT1 Signature Series User Guide
Product Features
Specifications
Product Model:

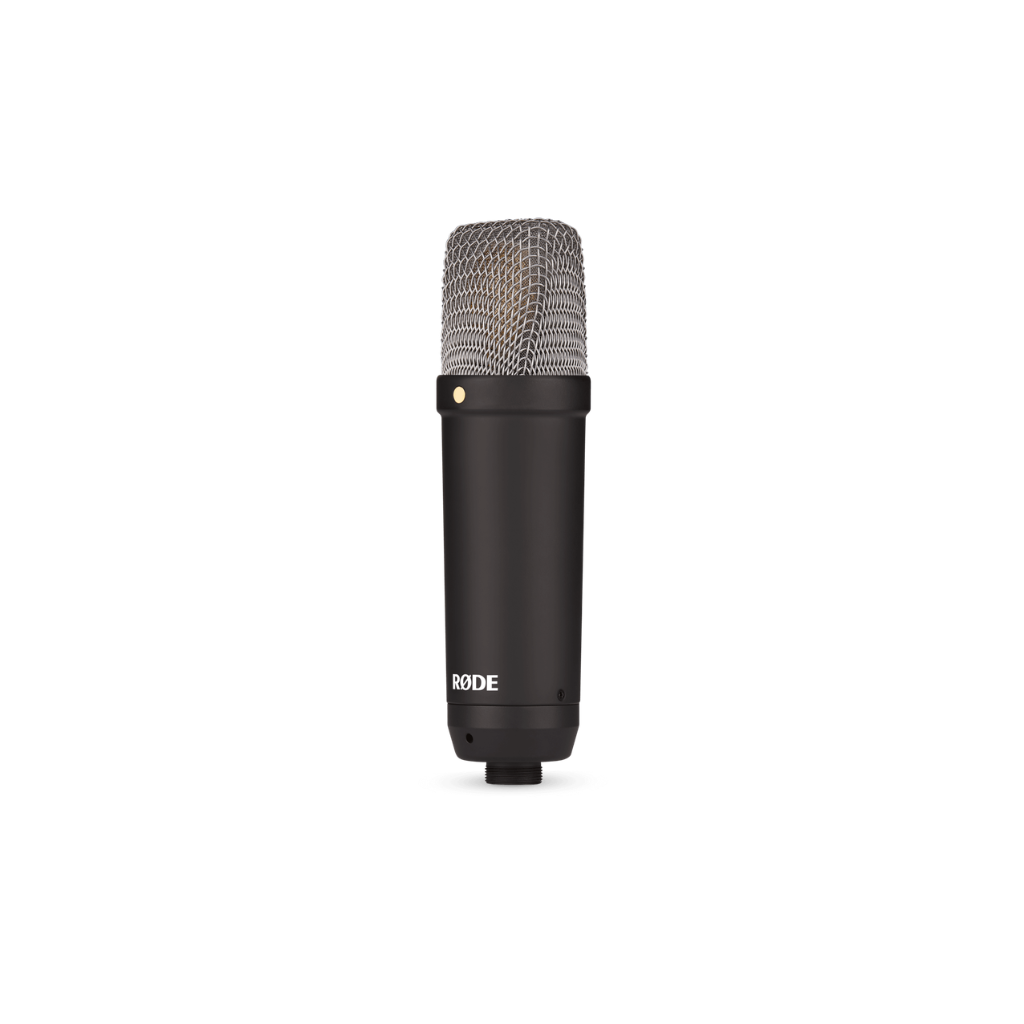

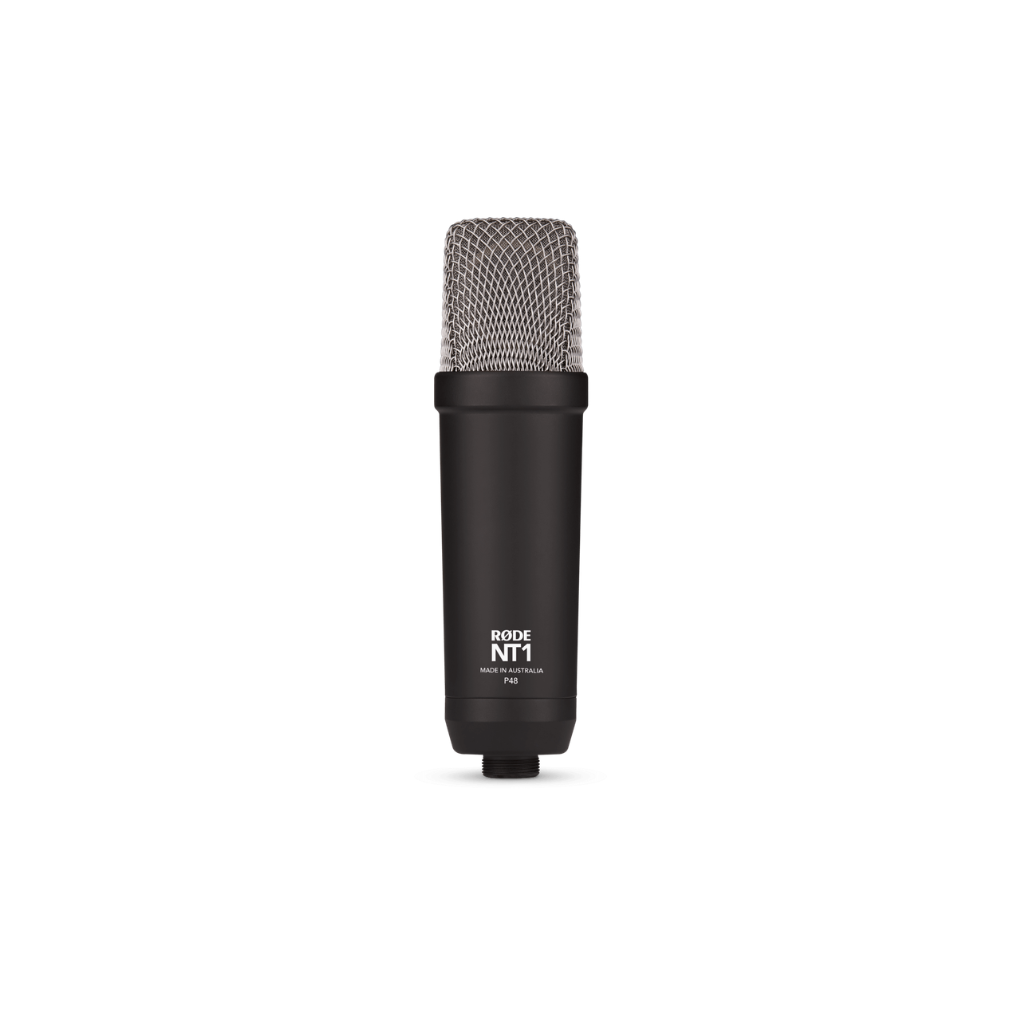

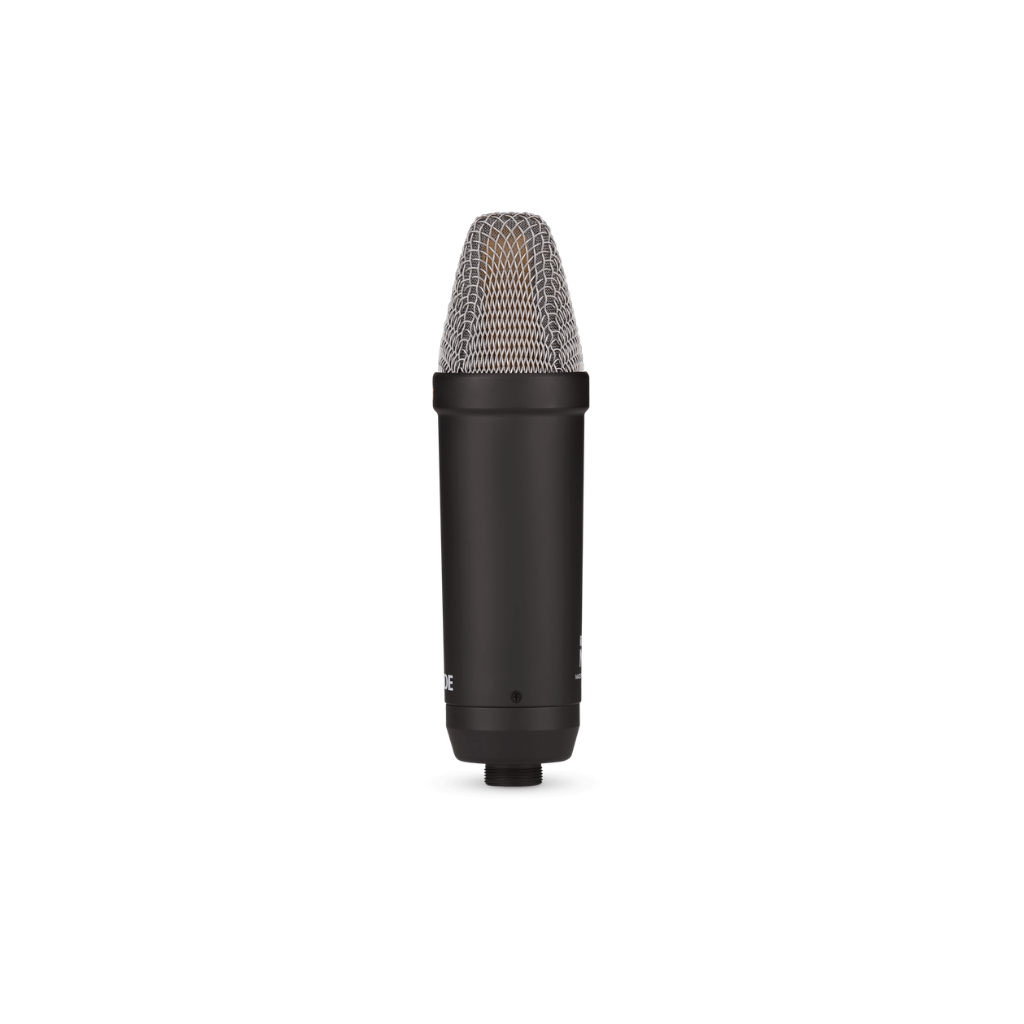

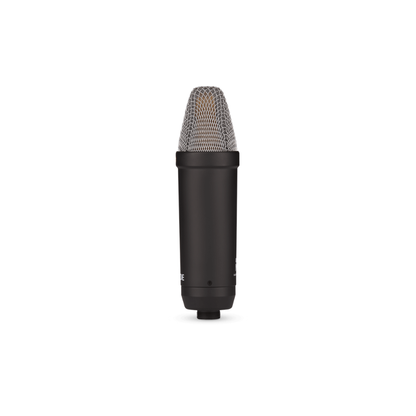

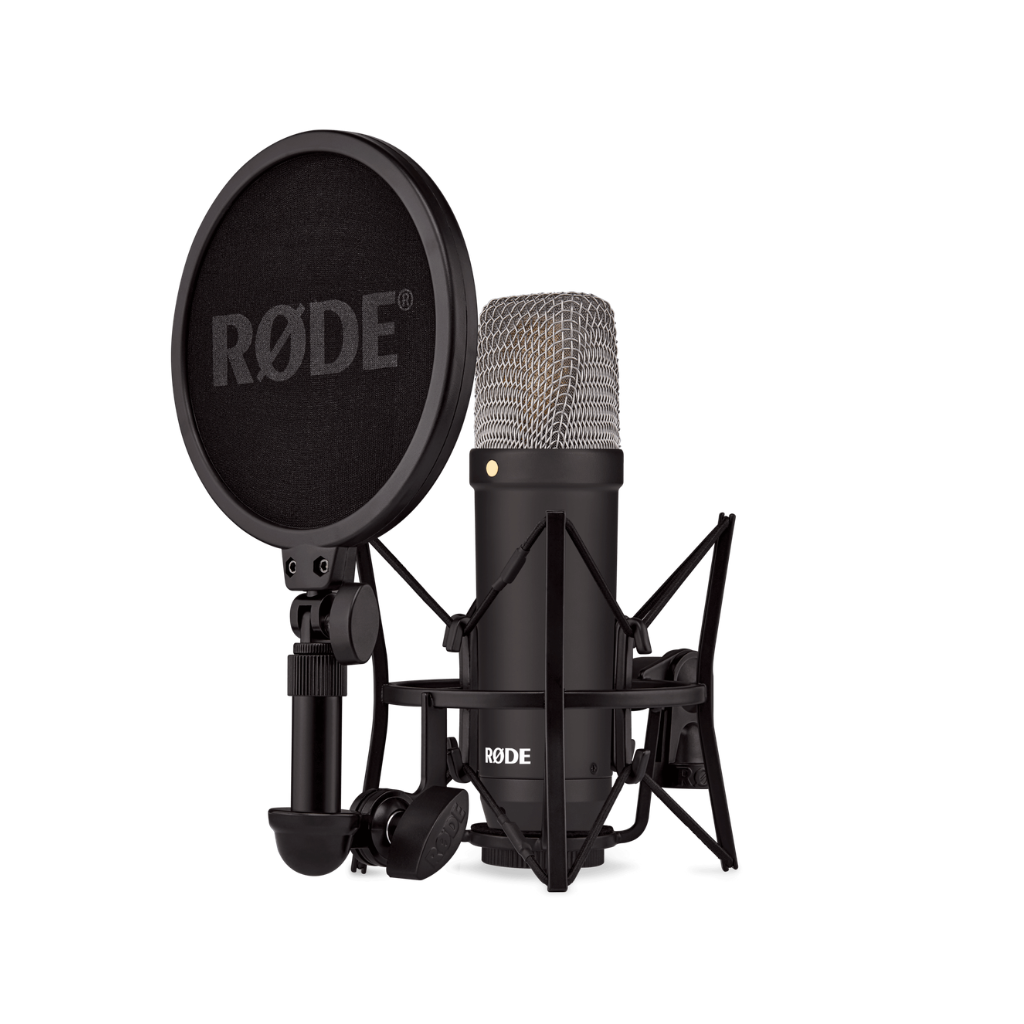

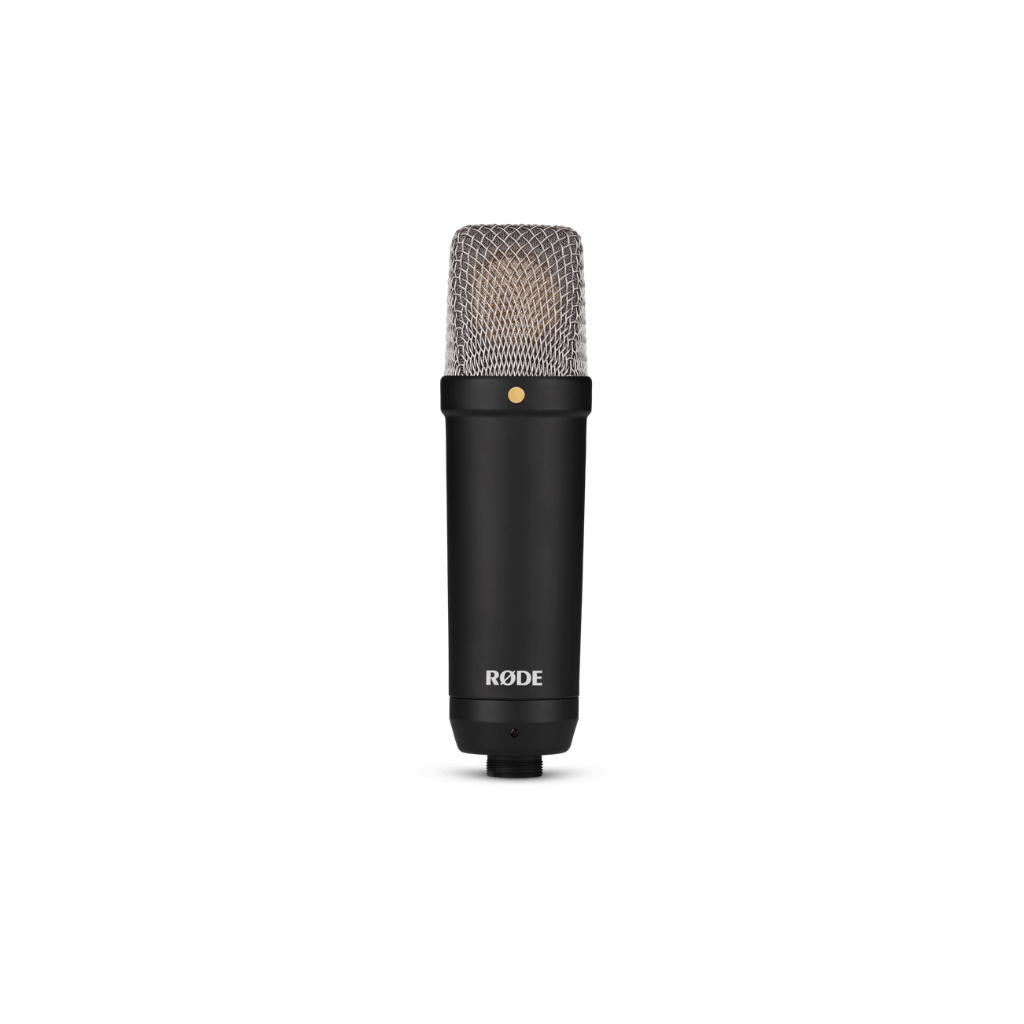

RØDE NT1 Signature Series
Acoustic Operating Principle:
Large-Diaphragm Externally Polarized Condenser

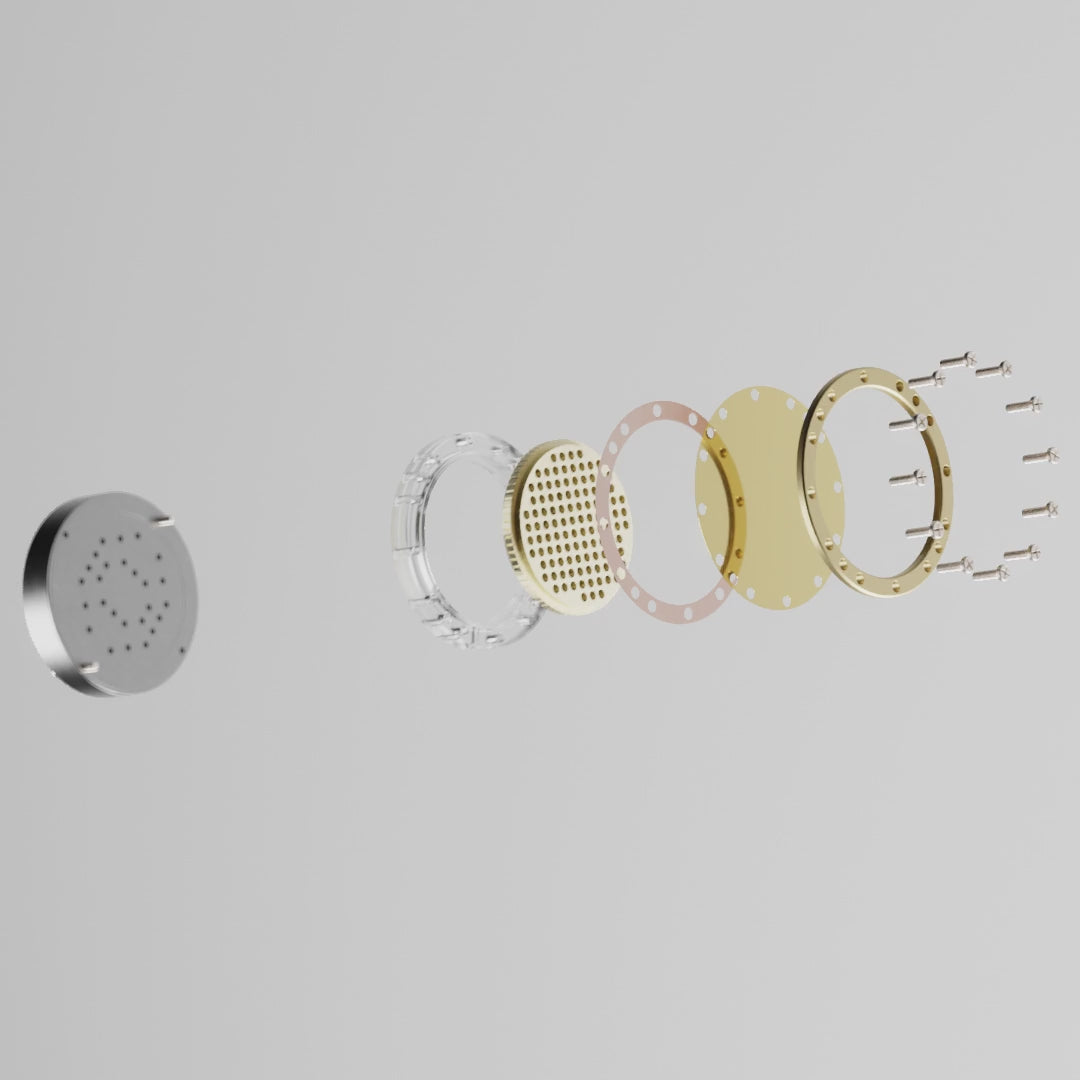

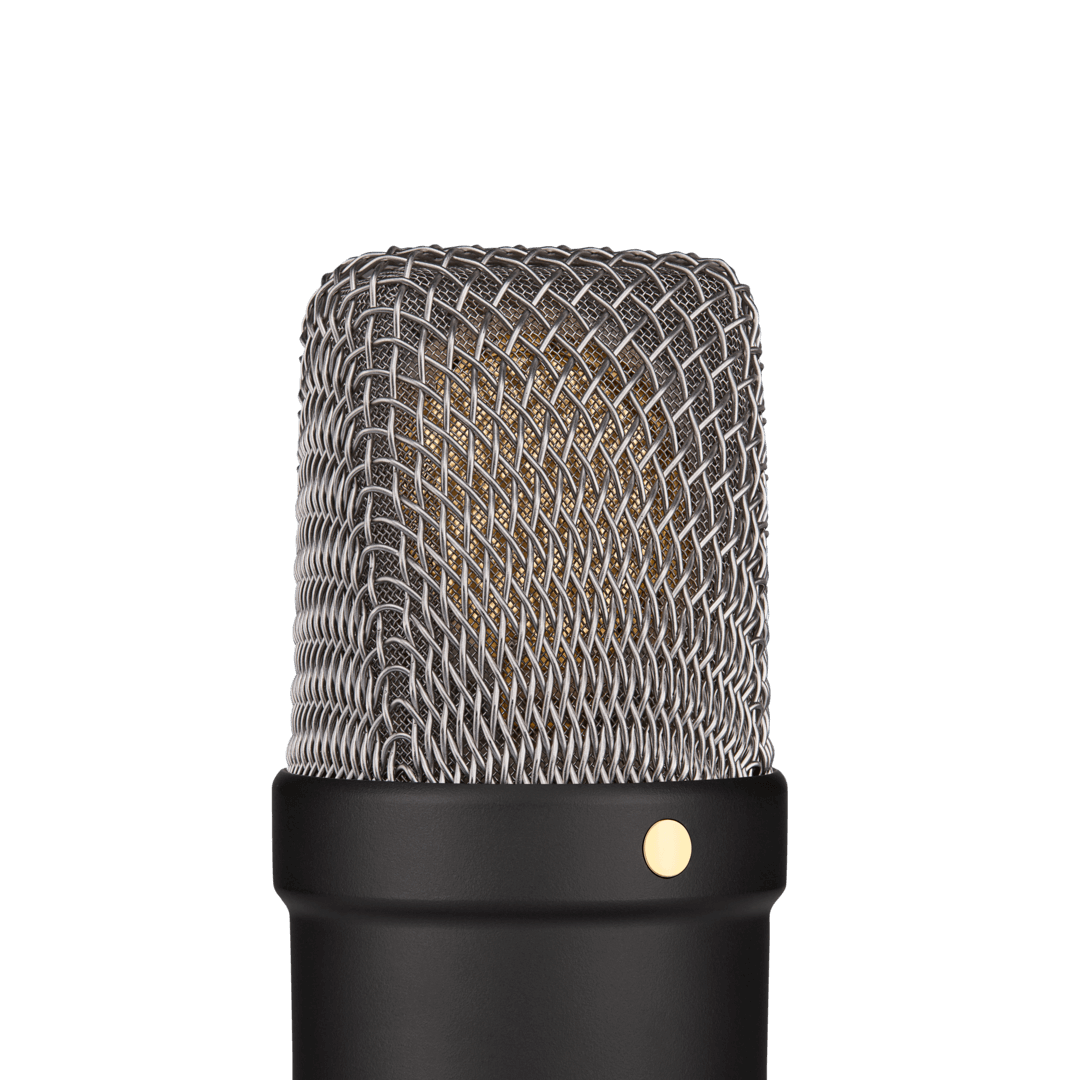

Capsule Transducer Core:
1.0-inch (25 mm) HF6 Gold-Sputtered Diaphragm
Directional Polar Pattern:
Cardioid
Frequency Response Range:
20 Hz to 20,000 Hz
Equivalent Self-Noise Floor:
Ultra-Low 4 dBA (A-Weighted, per IEC651 standard)
Open Circuit Sensitivity:
-32.0 dB re 1 Volt/Pascal (25.00 mV at 94 dB SPL) +/- 2 dB at 1 kHz
Maximum Rated SPL Capacity:
142 dB SPL (at 1% THD into 1k Ohm Load)
Output Impedance Nominal:
100 Ohms
Power Supply Requirement:
Standard +48V DC Phantom Power Required
Output Termination Interface:
Integrated 3-Pin XLR Male Connector (Gold-Plated Pins)
Chassis Shell Composition:
Machined Aerospace-Grade Aluminum with Durable Finish Coating

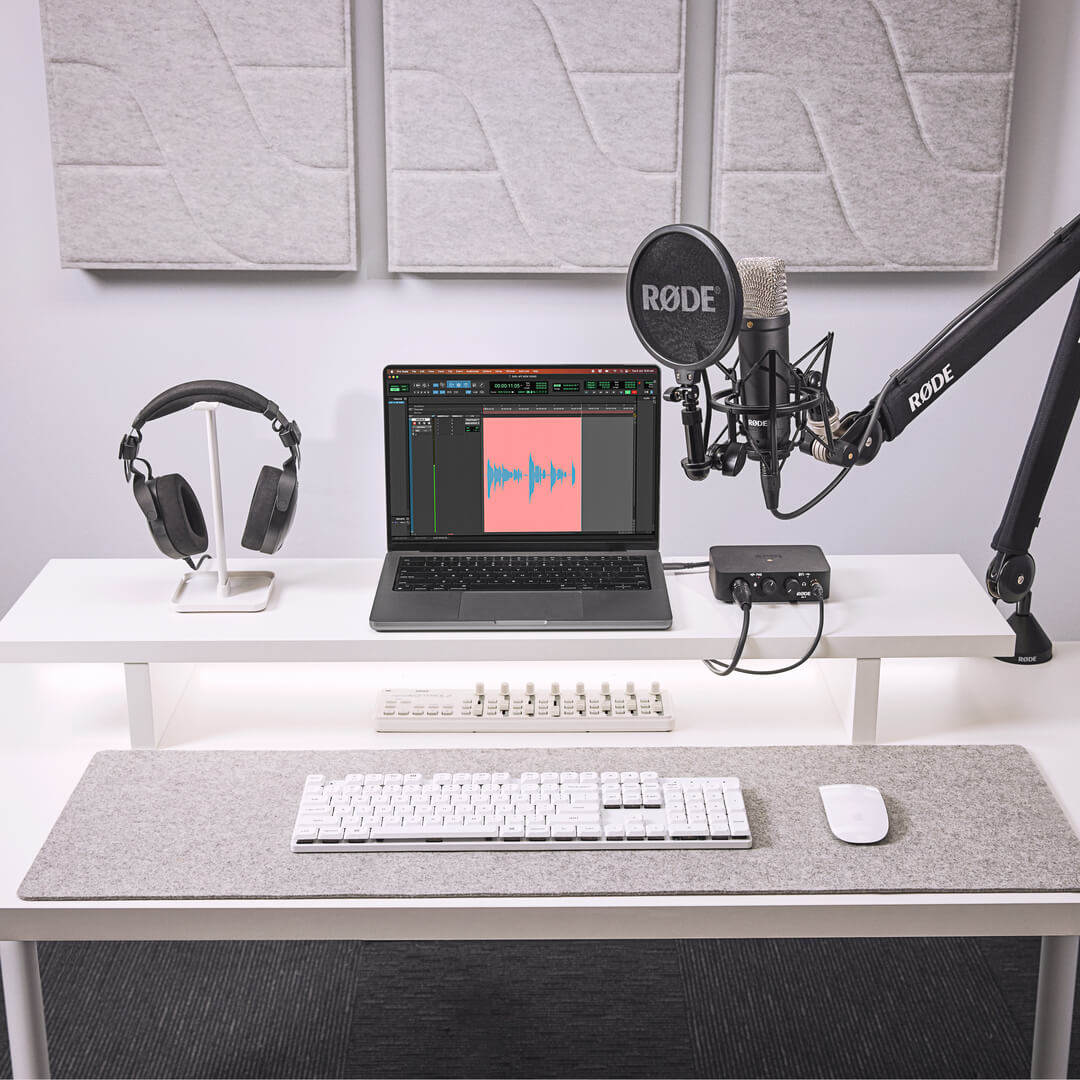

Included Hardware Bundle:
SM6 Studio Shock Mount, Integrated Pop Filter, Premium RØDE XLR Cable (6M)
Dimensions (H x W x D):
18.9 cm x 5.2 cm x 5.2 cm (7.44 x 2.04 x 2.04 inches)
Weight:
313 grams (11.04 ounces)
