Product Highlights
Product Features
Specifications
Product Model:

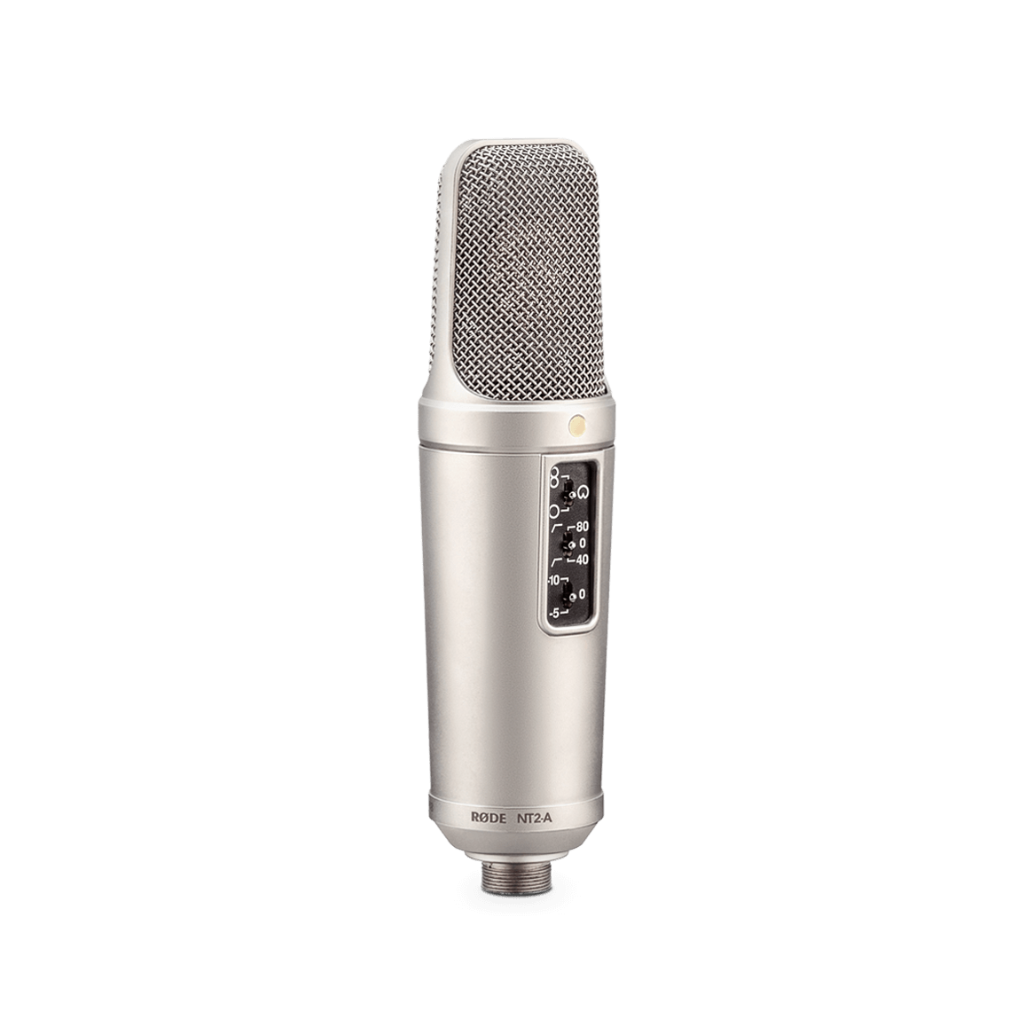

Rode NT2-A
Acoustic Operating Principle:
Large-Diaphragm Externally Polarized Condenser
Capsule Transducer Core:
1.0-inch (25 mm) HF1 Dual Gold-Sputtered Diaphragm
Selectable Polar Patterns:
Cardioid, Omnidirectional, Figure-8 (Front Panel Switchable)
Frequency Response Range:
20 Hz to 20,000 Hz
High-Pass Filter Options:
Flat / 40 Hz / 80 Hz (3-Position Toggle Switch)
Level Attenuation Pad:
0 dB / -5 dB / -10 dB (3-Position Toggle Switch)
Output Impedance Nominal:
200 Ohms
Maximum Rated SPL Capacity:
147 dB SPL (at 1% THD into 1k Ohm Load / 157 dB SPL with -10dB Pad engaged)
Maximum Output Level:
+16.0 dBu (at 1% THD into 1k Ohm Load)
Sensitivity Rating:
-36.0 dB re 1 Volt/Pascal (16.00 mV at 94 dB SPL) +/- 2 dB at 1 kHz
Equivalent Self-Noise Floor:
7 dBA (A-Weighted, per IEC651 standard)
Power Supply Requirement:
+24V or +48V DC Phantom Power Standard
Output Termination Port:
Integrated 3-Pin XLR Male Connector (Gold-Plated Pins)
Chassis Shell Composition:
Heavy-Duty Machined Zinc Alloy Body with Heat-Treated Steel Mesh Grille
Dimensions (H x W x D):
20.9 cm x 5.5 cm x 5.5 cm (8.22 x 2.16 x 2.16 inches)
Weight:
1.90 lbs (860 grams)
