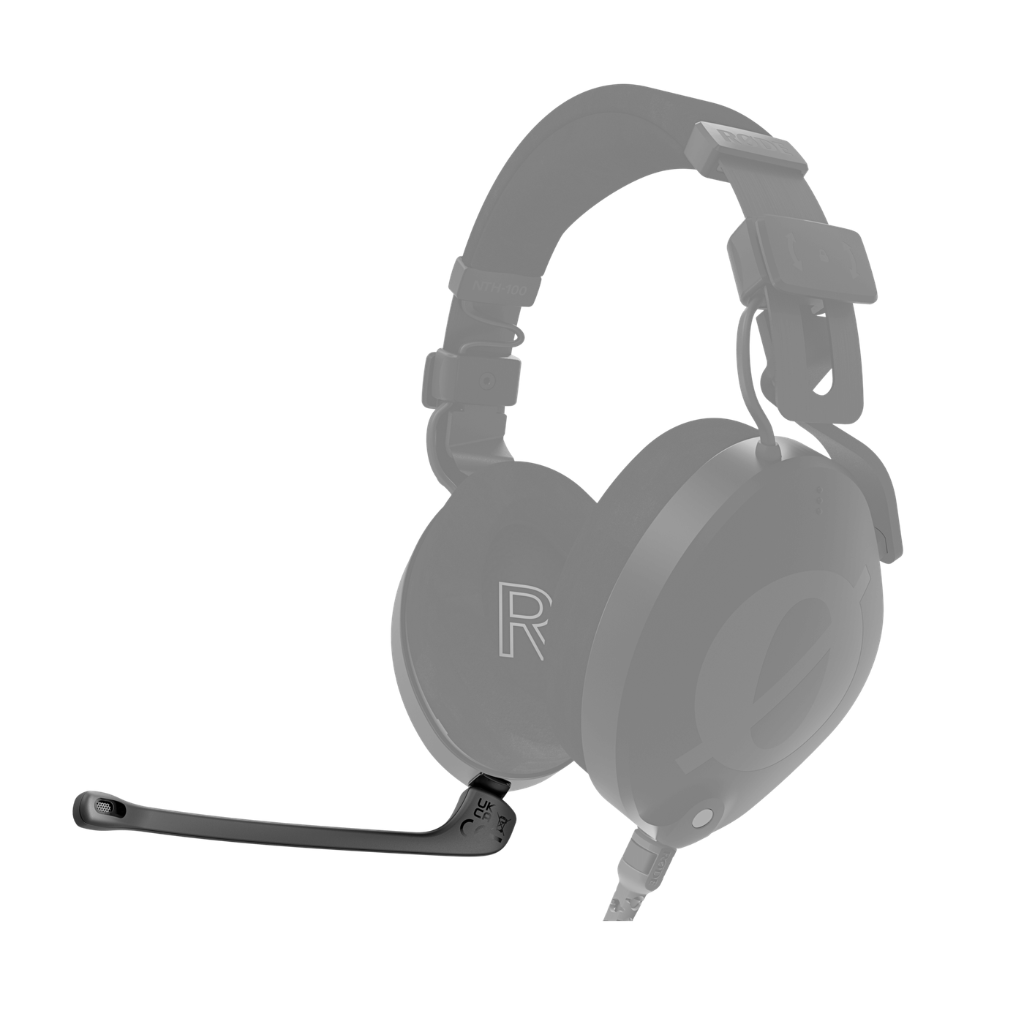

Transform Your NTH-100 Headphones

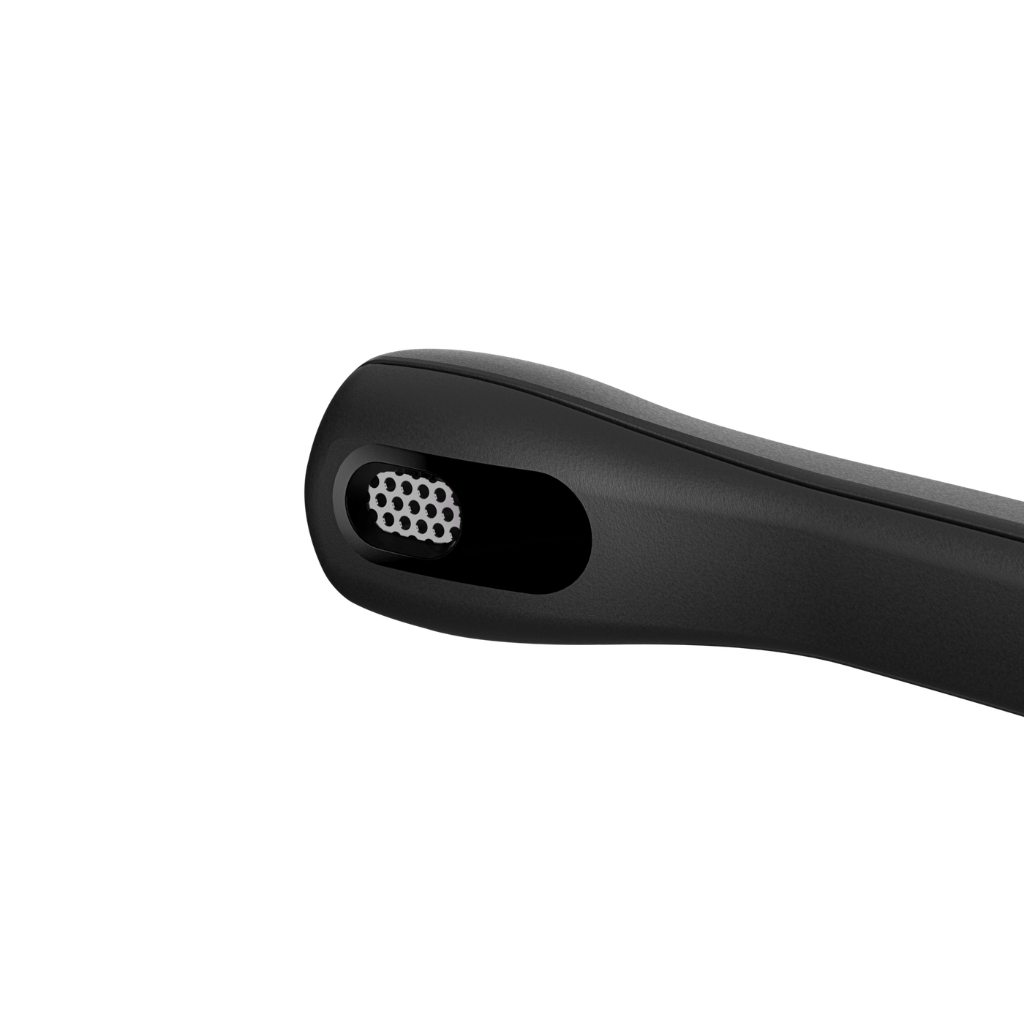

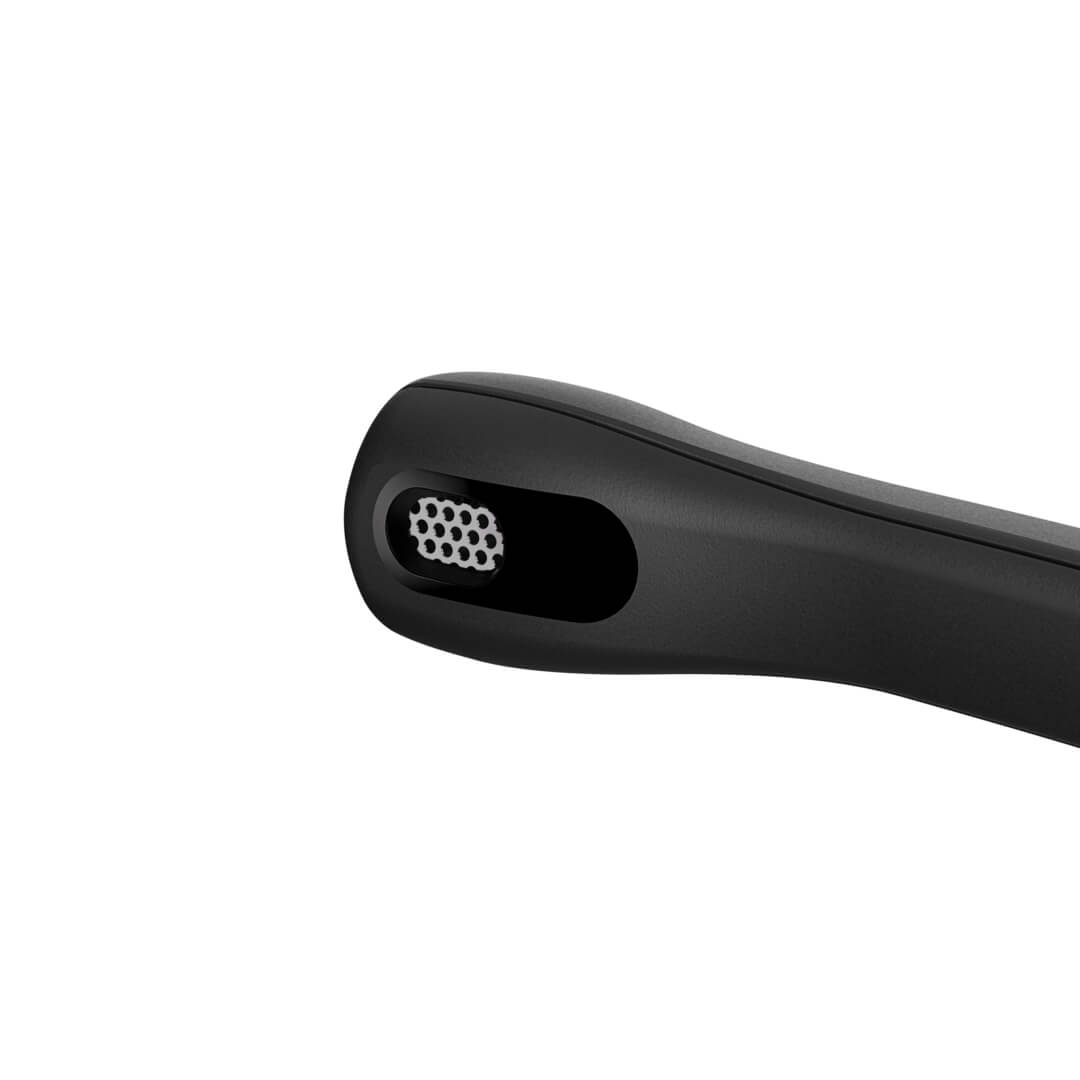

Crystal-clear Voice Capture
Sleek and Stylish
NTH-100M & NTH-Mic User Guide
Product Features
Specifications
Product Model:
RØDE NTH-Mic
Acoustic Operating Principle:
Permanently Polarized Condenser Capsule
Active Electronics Core:
JFET Impedance Converter
Directional Polar Pattern:
Omnidirectional (Optimized for Close-Proximity Vocal Placement)
Frequency Response Range:
20 Hz to 20,000 Hz
Signal-to-Noise Ratio:
67 dB
Equivalent Self-Noise Floor:
27 dBA (A-Weighted, per IEC651 standard)
Maximum Input SPL Capacity:
106 dB SPL (RMS at 1% THD into 1k Ohm Load)
Dynamic Range Capacity:
79 dB
Sensitivity Rating:
-38 dB re 1 Volt/Pascal (12.59 mV at 94 dB SPL) +/- 3 dB at 1 kHz
Interface Input Connection:

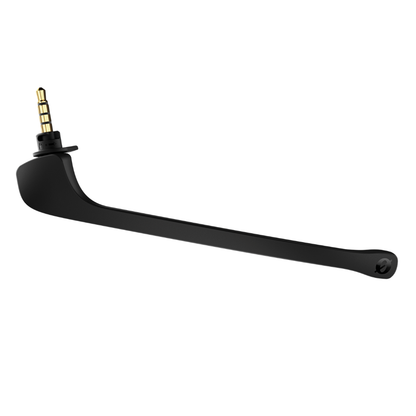

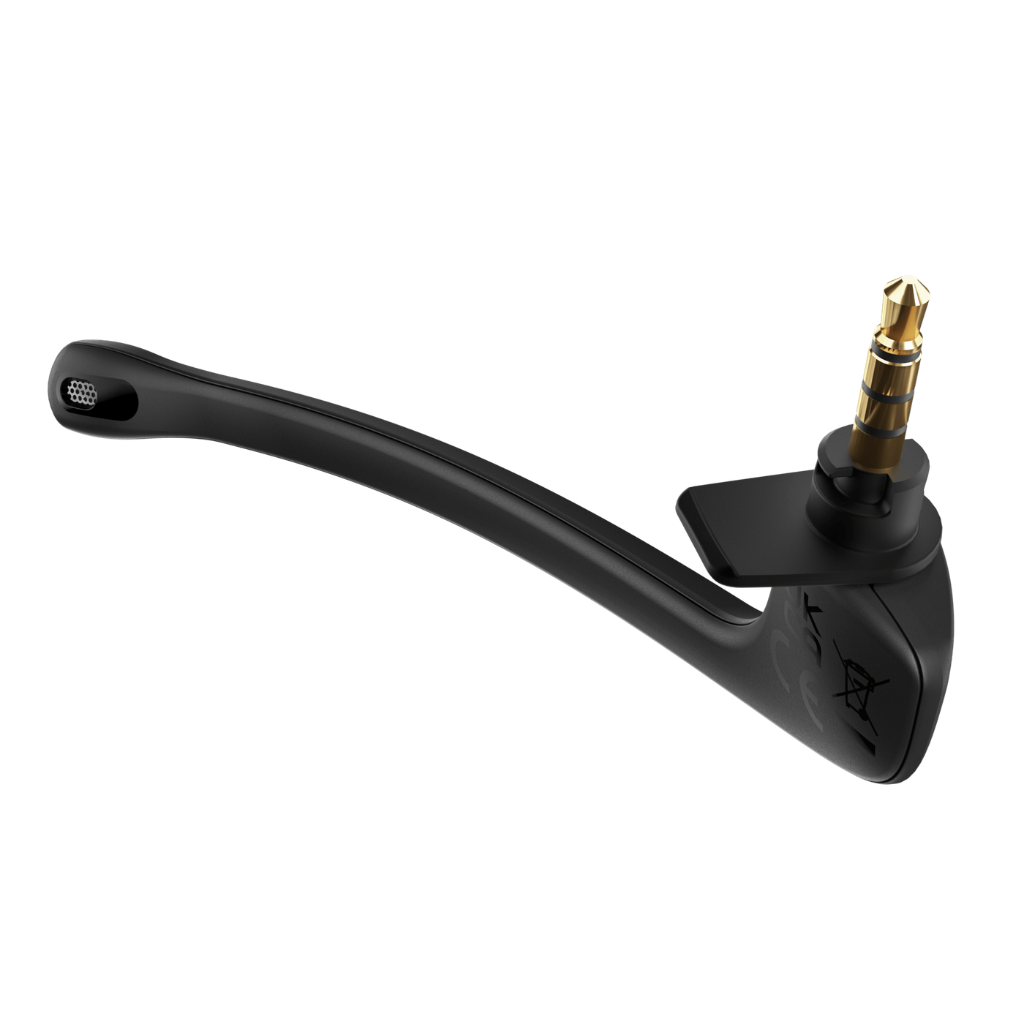

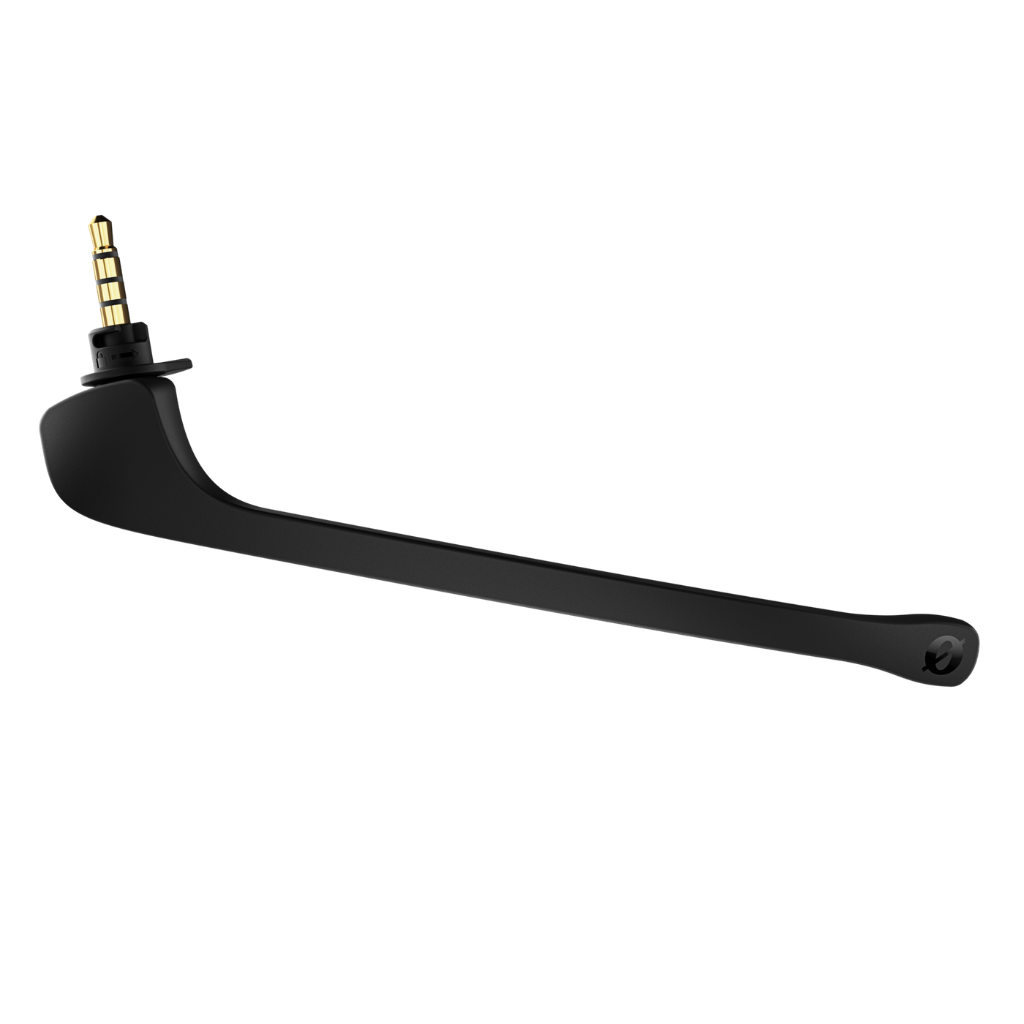

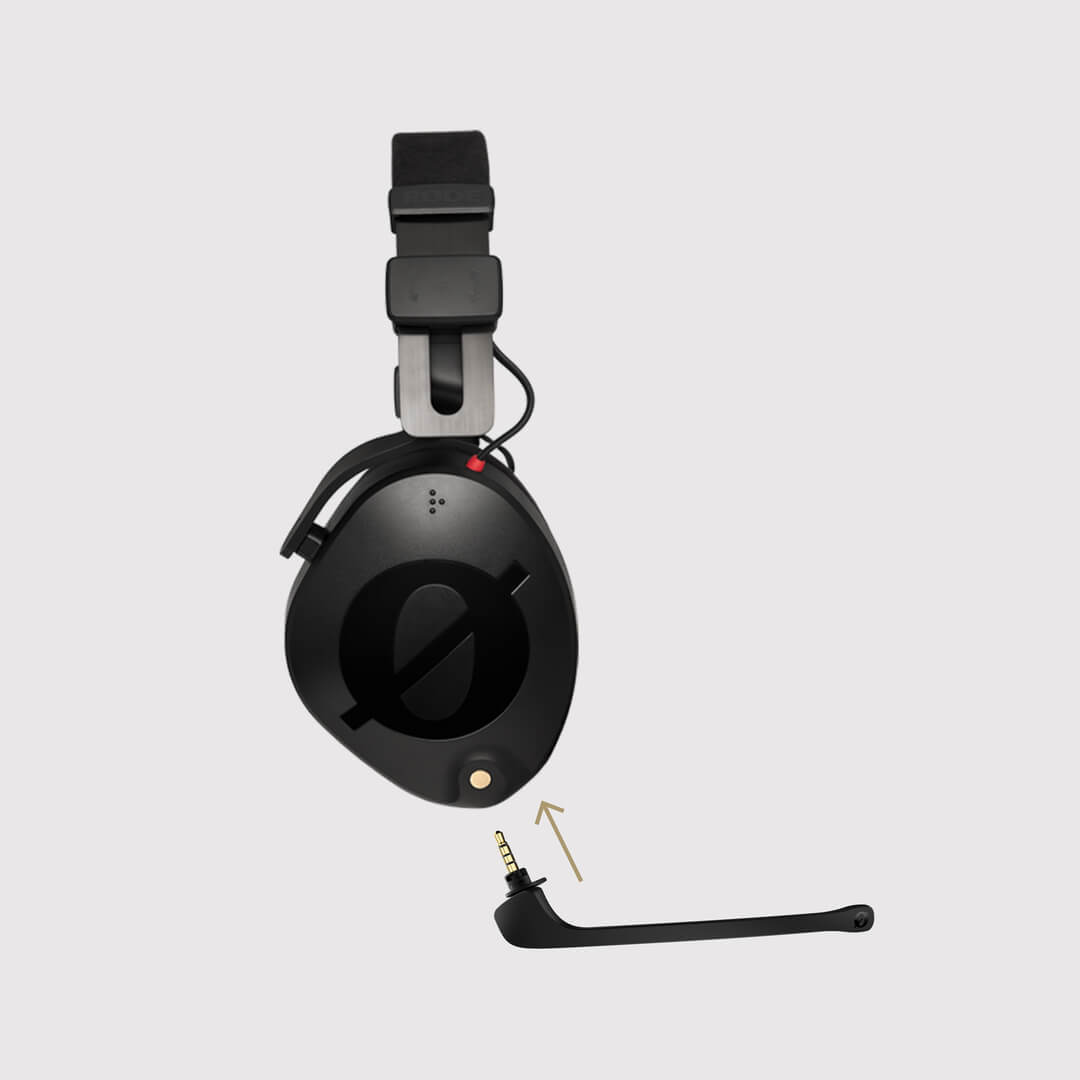

3.5 mm TRS Male Bayonet Pin (Secures directly to NTH-100 Earcup)
Interface Output Route:
Driven via the primary 3.5 mm TRRS headphone breakout cable
Primary Material Shell:
Machined Component Metals and Lightweight Hardened Composites
Equipment Compatibility:
RØDE NTH-100 Headphones, AI-Micro, RØDECaster Series, Audio Workstations
Weight:
5 grams (0.17 ounces)
