Description
Revolutionary Sound

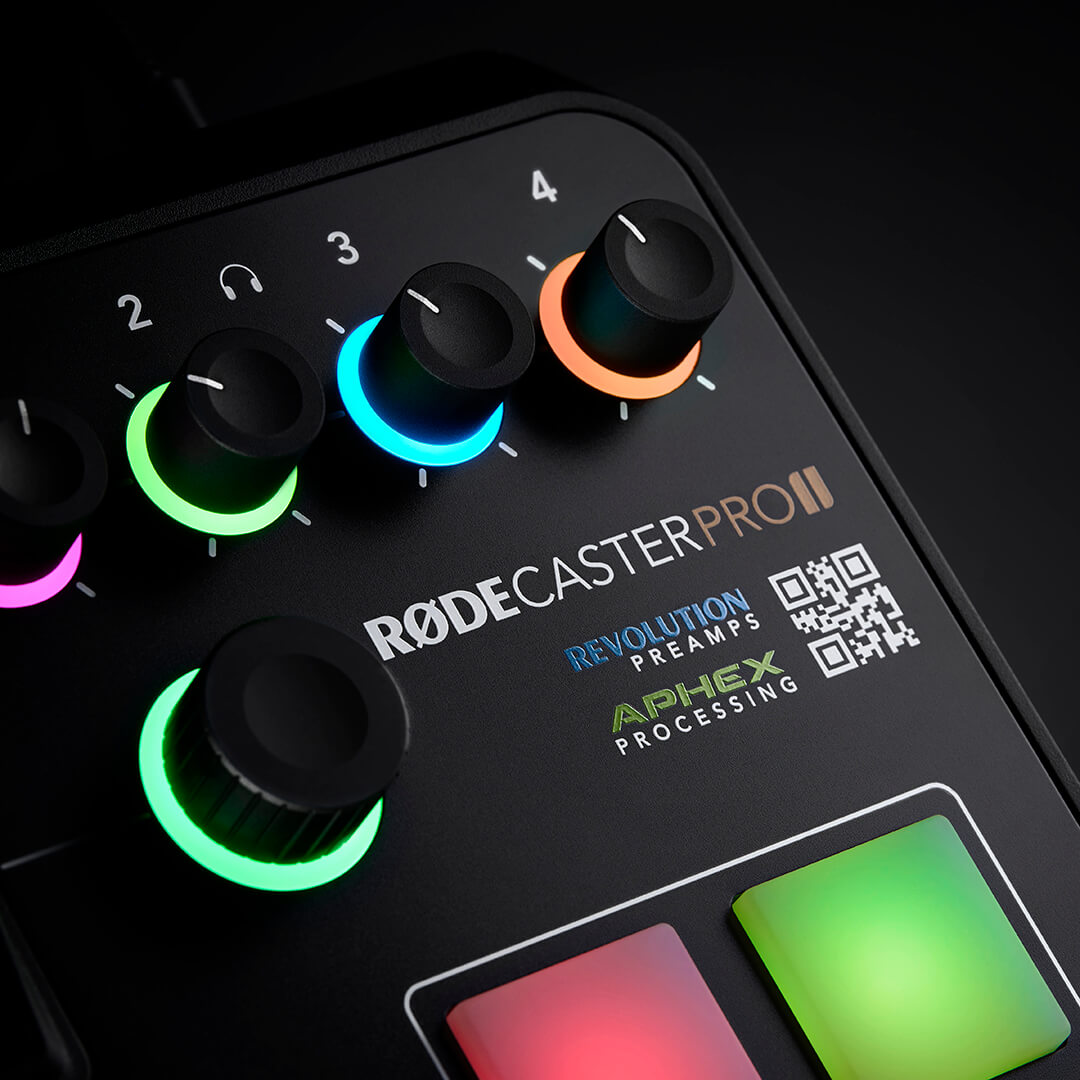

Powered by APHEX®
Incredible Audio, Incredibly Easy
Not Just Sound Pads. SMART Pads

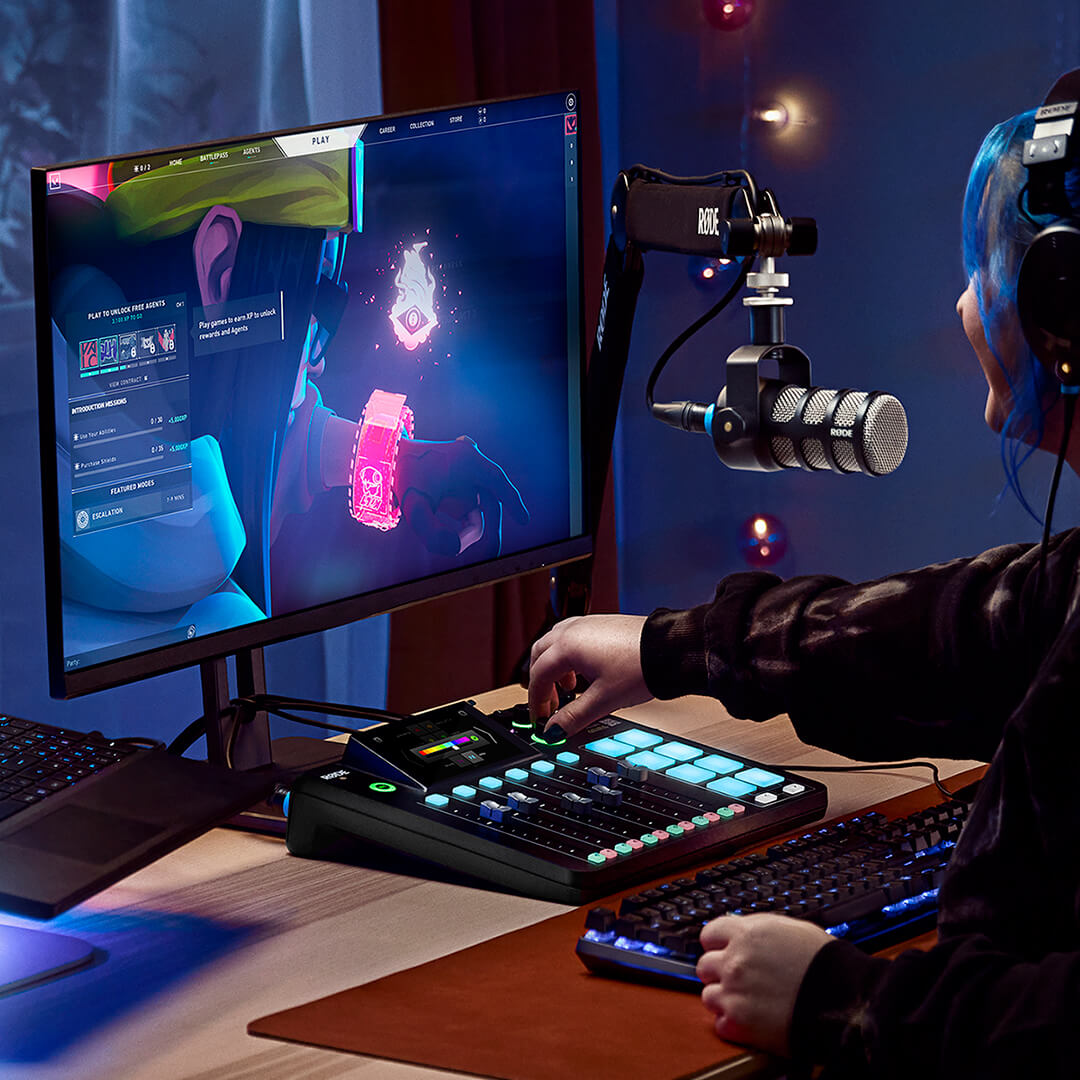

Endless Customisation. Endless Creative Freedom.

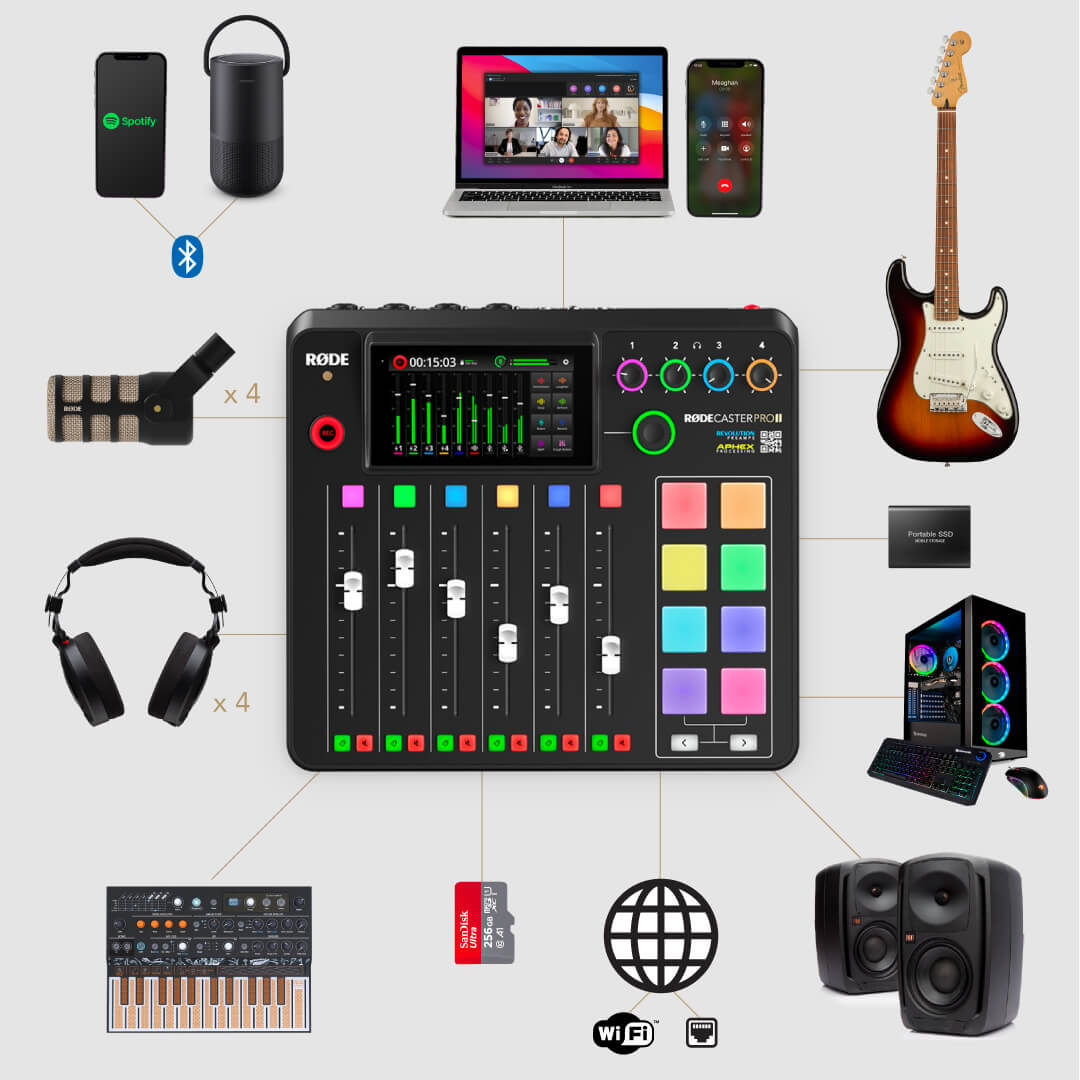

All Your Devices, Connected
Specifications
Product Model:

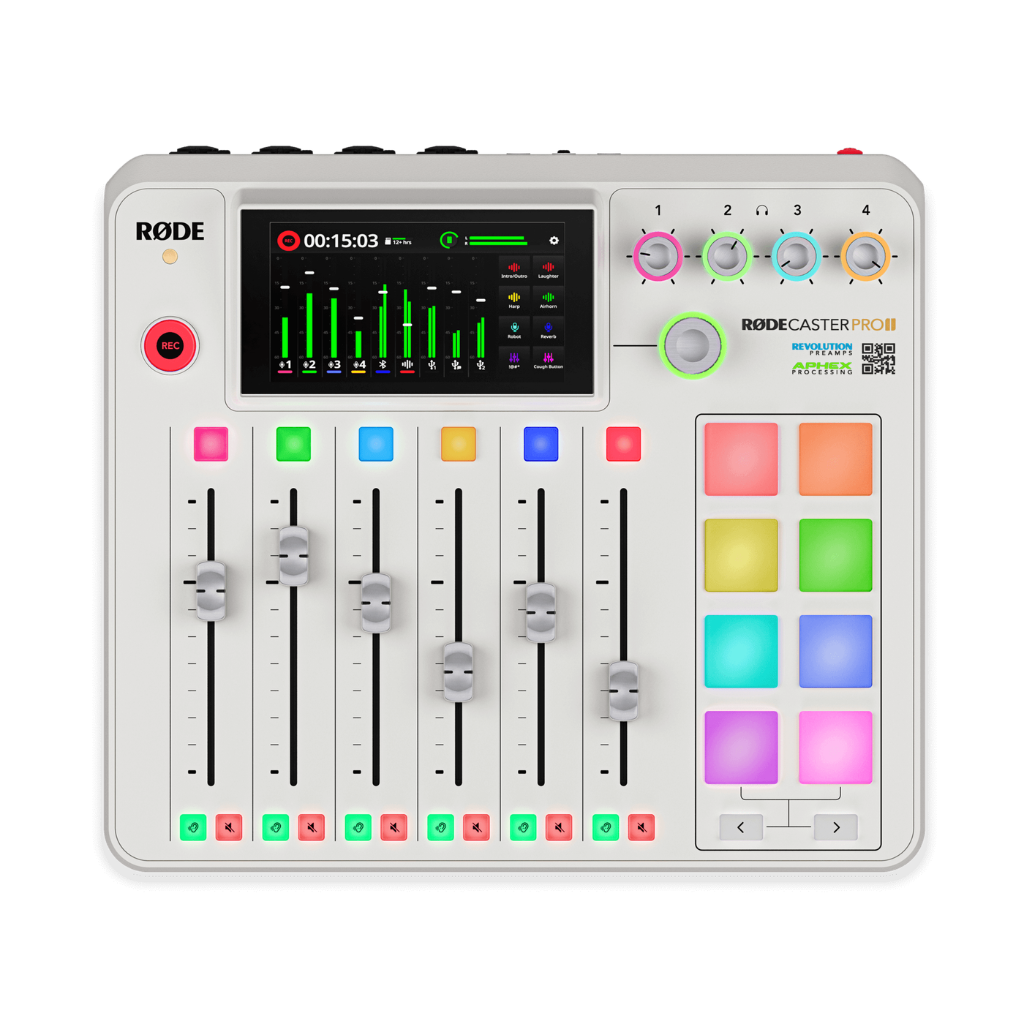

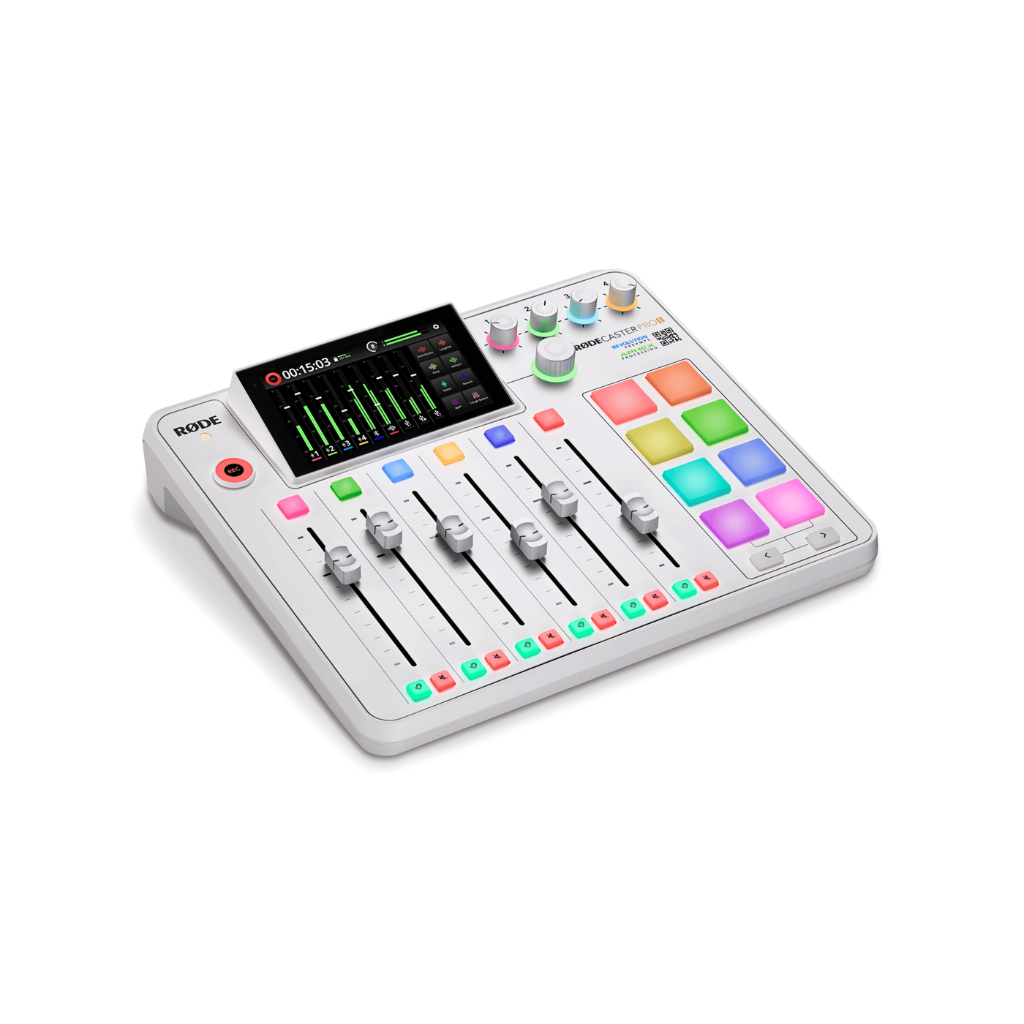

RØDECaster Pro II
Device Type:
Integrated Audio Production Studio / Standalone Mixer Interface
Processor Engine:
High-Performance Quad-Core 1.5GHz Floating-Point Audio Engine
Bit Depth / Sample Rate:
24-bit / 48 kHz
Preamps:
4x High-Gain, Ultra-Low-Noise Revolution Preamps™
Preamp Gain Range:
0 dB to +76 dB
Equivalent Input Noise:
-131.5 dBV (A-Weighted)

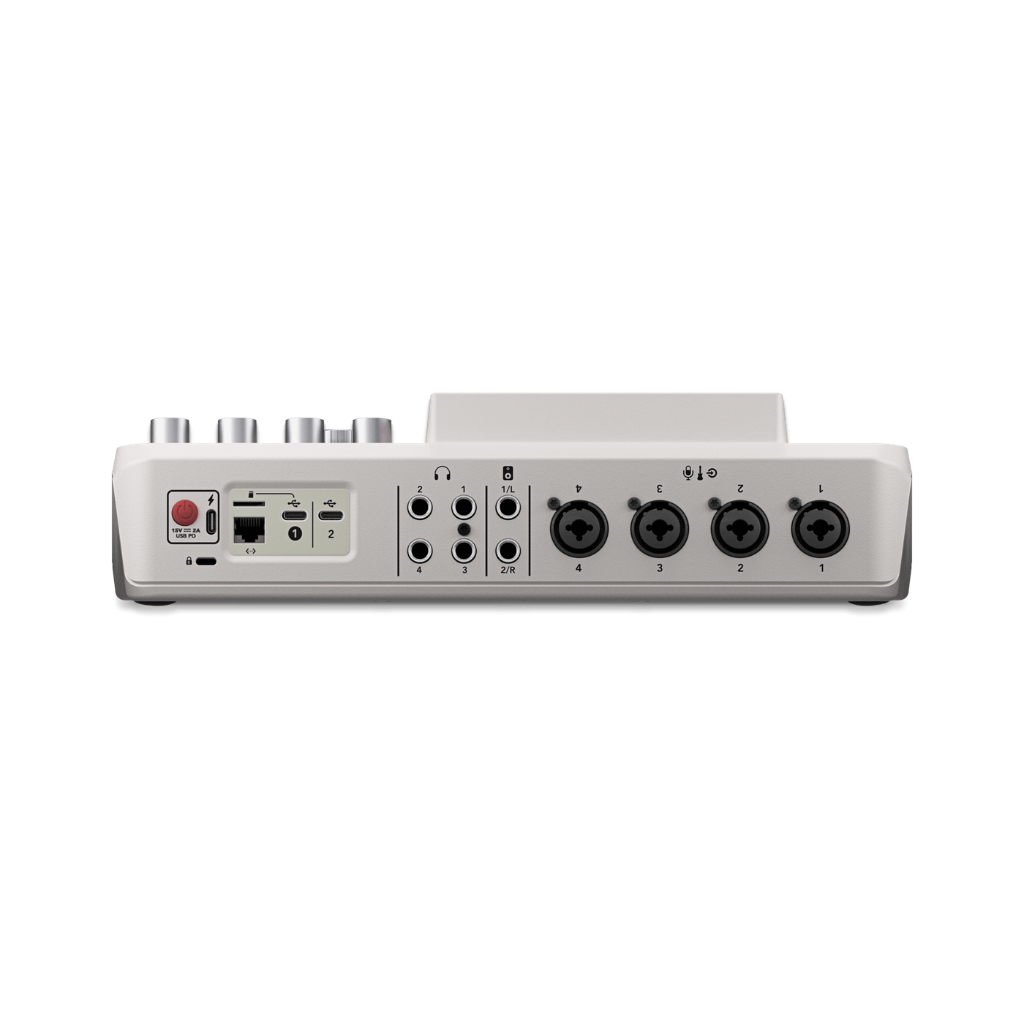

Analog Inputs:
4x Balanced Neutrik® XLR-1/4" Combo Jacks (Mic, Line, Instrument)
Analog Outputs:
2x Balanced 1/4" Line Outputs, 4x 1/4" High-Power Headphone Outputs
Digital Connectivity:
2x USB-C Interfaces (Dual PC/Mobile Connection Capability)
Wireless Connectivity:
Wideband Bluetooth® (For Calls, Audio Streaming, and App Control)
Onboard DSP Processing:
APHEX® Aural Exciter™, Big Bottom™, Compellor™, Noise Gate, Compressor, HPF, De-esser, Equalizer
Faders / Mixing:
6x Physical Broadcast-Grade Channel Faders, 3x Virtual Faders
SMART Pads:
8x Fully Programmable RGB Pads with 8 Switchable Banks (64 Total Actions)
Onboard Storage:
MicroSDHC, MicroSDXC, or External USB-C Drive (Mass Storage Class)
Network Interface:
Wi-Fi 802.11b/g/n/ac (2.4GHz/5GHz), 1x Gigabit Ethernet Port
Power Supply:
USB-C PD (30W via included AC Adapter)
Dimensions (W x D x H):
12.0" x 10.6" x 2.4" (305 mm x 270 mm x 60 mm)
Weight:
4.32 lbs (1.96 kg)
