RoxTone

RoxTone MDXX200 Master Series DMX Audio Cable

149

129.57 (Excl. VAT)

Taxes included. Shipping calculated at checkout.

Size MDXX200L10 MDXX200L5

Quantity

DHL Express: 1–3 working days
Delivery to Riyadh within 24 hours. Other cities from 3 to 7 days maximum.
Secure Payment

View full details

Product Overview

The RoxTone MDXX200 Master Series is a specialized 110 ohm XLR cable used to connect DMX lighting controllers, moving heads, and LED stage fixtures, as well as digital audio equipment. It carries digital control data cleanly across long stage runs without data loss or flickering lights caused by signal reflection and radio interference.

Description

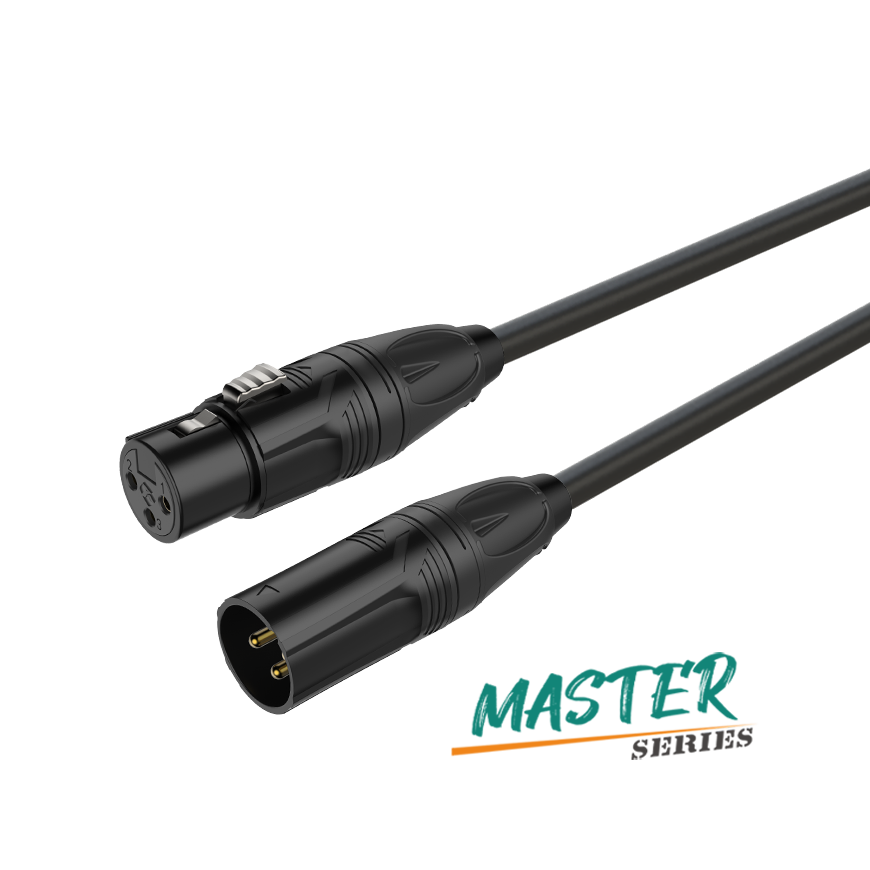

Designed for reliable performance in professional lighting setups, the Roxtone MDXX200 is a high-quality DMX cable from the Master Series. It features durable RX3F-BG (XLR 3-pin female) to RX3M-BG (XLR 3-pin male) connectors, ensuring stable signal transmission. Ideal for stage, studio, and live production environments, this cable offers excellent shielding and robust construction to minimize interference and withstand frequent use.

Product Features

True 110 Ohm Impedance: Matches international DMX512 and AES EBU digital signal specifications to prevent data reflection and signal corruption.
Double Shielding Coverage: Combined aluminum foil and high density braided copper shield blocks radio frequency and electromagnetic interference in complex lighting rigs.
Oxygen Free Copper Conductors: Fine stranded O.F.C. copper cores maintain fast data edge speeds and accurate digital pulse transfer.
Heavy Duty Metallic XLR Connectors: Rugged zinc die cast housings with internal strain relief chucks withstand heavy stage strain and foot traffic.
Flame Retardant PVC Jacket: Durable, flexible outer PVC jacket resists abrasion and heat while remaining easy to coil on stage.

Specifications

Product Model:

RoxTone MDXX200 (Master Series)

Cable Type:

110 Ohm DMX512 / AES EBU Digital Control Cable

Characteristic Impedance:

110 Ohms Nominal

Conductor Material:

High Purity Oxygen Free Copper (O.F.C.)

Shielding Topology:

Aluminum Foil plus High Density Braided Copper Shielding

Connectors:

1 x 3 Pin XLR Female, 1 x 3 Pin XLR Male

Connector Shell Material:

Heavy Duty Die Cast Zinc

Contact Plating:

Silver Plated or Gold Plated Pins

Outer Cable Diameter:

6.0 mm

Color Finish:

Black Cable with Metallic Chrome Shells
