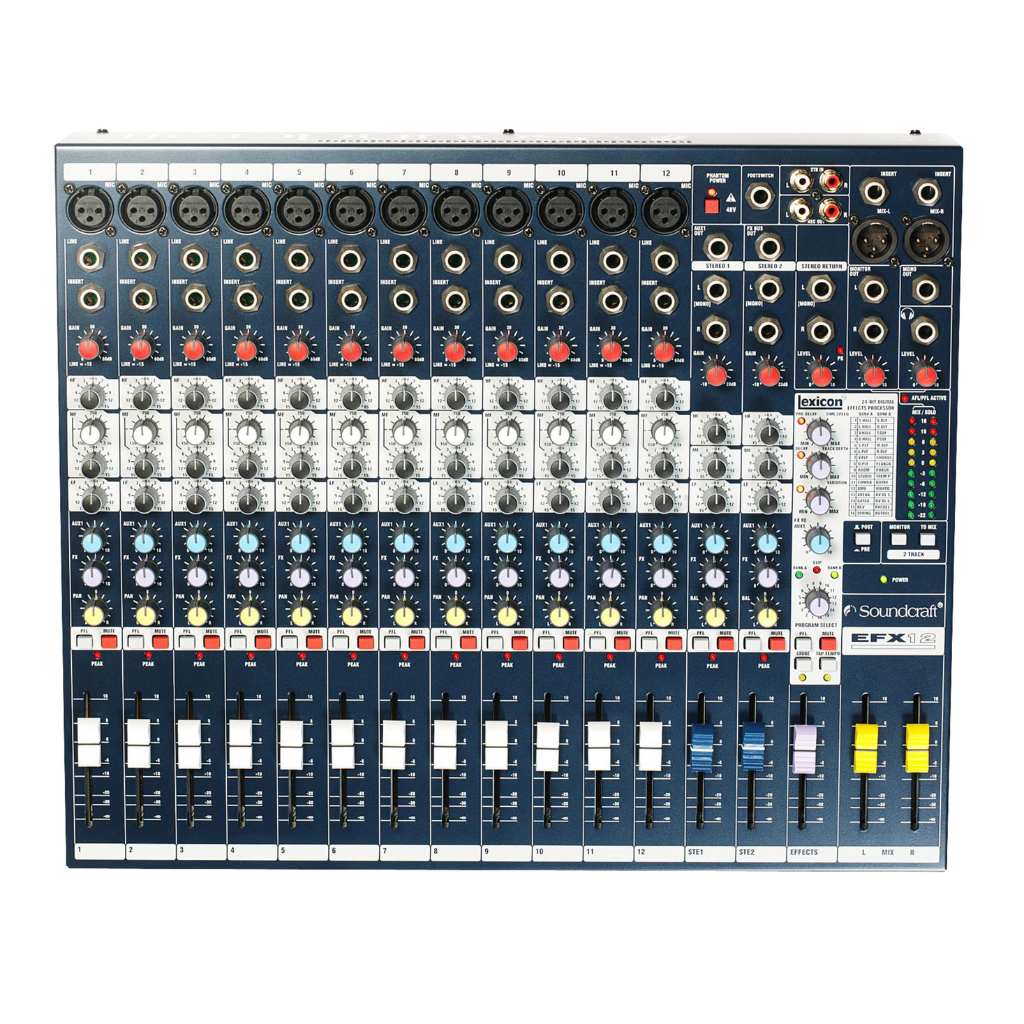

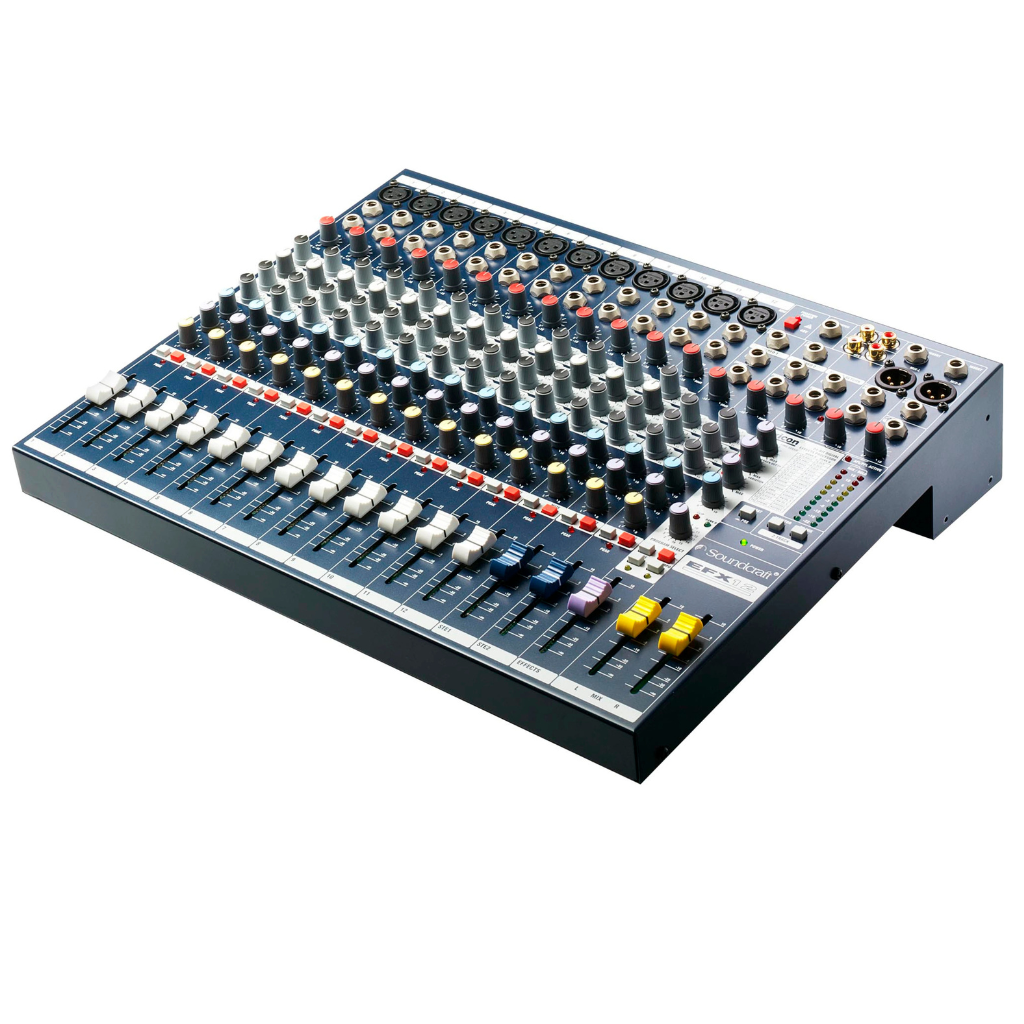

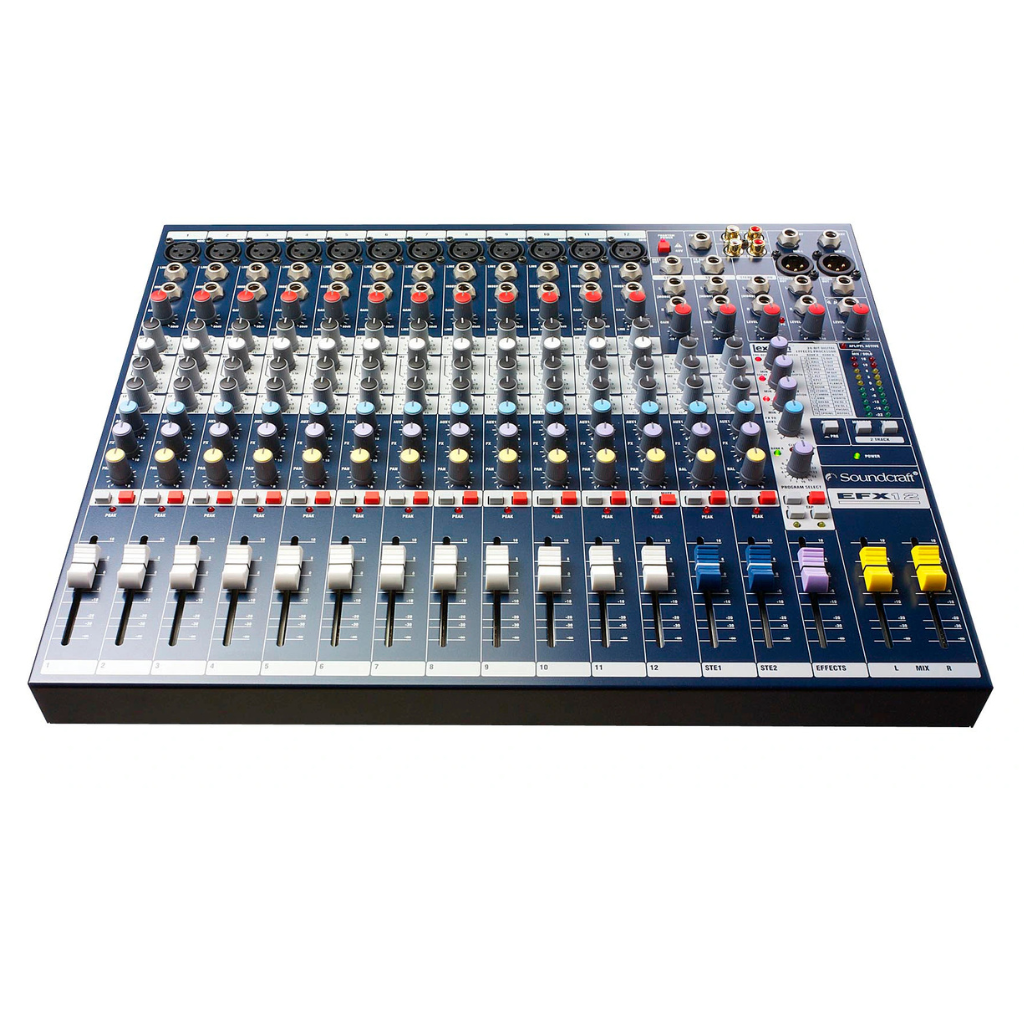

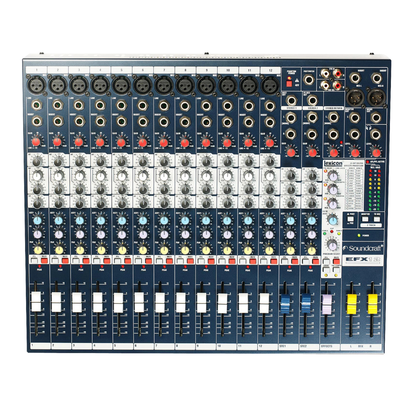

Soundcraft EFX12 12-Channel Analog Mixer with Lexicon FX.

Soundcraft EFX12 12-Channel Analog Mixer with Lexicon FX.

SAR 3,349
SAR 2,912.17 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Product Features

Command live performances and multi-mic installations with the pristine audio clarity and legendary processing of the Soundcraft EFX12 Analog Mixer. Merging 12 studio-grade GB30 microphone preamps with an onboard 24-bit Lexicon digital effects engine, this versatile console gives you 32 studio reverbs, delays, and modulations right at your fingertips without extra rack gear. Complete with sweepable mid-frequency British EQ on every channel, dedicated insert routing, and rugged 60mm faders, the EFX12 delivers uncompromised dynamic headroom, warmth, and intuitive mixing control for venues, rehearsal spaces, and mobile sound engineers.

Product Features

  • Built-in 24-Bit Lexicon® Digital Effects: Features 32 custom digital presets—including studio reverbs, delays, chorus, and flangers—with 3 parameter controls, tap tempo function, and user preset storage.
  • High-Headroom GB30 Mic Preamps: Outfitted with custom GB30 preamplifier circuitry (derived from the acclaimed GB Series large-format consoles) delivering ultra-low noise and exceptional overload margin.
  • 3-Band EQ with Sweepable Midrange: Each mono channel features a musical 3-band British EQ with a sweepable mid-frequency control (150 Hz to 3.5 kHz) for pinpoint vocal and instrument carving.
  • Comprehensive Routing & Channel Inserts: Includes dedicated 1/4" TRS insert points on all 12 mono channels and the master mix bus, plus an auxiliary send switchable for pre- or post-fader monitoring.
  • Tour-Grade Hardware Build: Equipped with smooth 60mm precision faders, individual channel mute switches, peak signal LEDs, and optional rack-mount ears for standard 19" rack installation.

Specifications

Product Model:
Soundcraft EFX12
Mixer Architecture:
12-Channel Compact Analog Mixing Console with Built-In Digital FX
Total Input Channels:
12 Mono Mic/Line Inputs + 2 Stereo Line Inputs
Preamplifier Type:
Soundcraft Ultra-Low-Noise GB30 Preamps
Phantom Power:
Global +48V DC Phantom Power Switch
Onboard FX Processor:
24-Bit Lexicon® Engine (32 Presets with Tap Tempo & 3 Parameter Dials)
Channel Equalization:
Mono: 3-Band EQ with Sweepable Mid (150Hz–3.5kHz) | Stereo: 3-Band Fixed EQ
Auxiliary Sends:
1 x Aux Send (Pre/Post Switchable), 1 x Dedicated Internal FX Send
Channel Inserts:
Dedicated 1/4" TRS Inserts on all 12 Mono Channels & Main Mix
Fader Hardware:
60 mm High-Precision Logarithmic Faders
Frequency Response:
20 Hz to 20,000 Hz (+/- 1.5 dB)
Total Harmonic Distortion:
less than 0.02% @ 1 kHz (Mic Sens -30 dBu, +14 dBu Output)
Crosstalk / Isolation:
Greater than 96 dB (Channel Mute) / Greater than 86 dB (Fader Cutoff)
Main Audio Outputs:
2 x XLR Male (Balanced Master L/R), 1 x 1/4" TRS (Headphones), 1 x 1/4" TRS (Monitors)
Rack-Mount Capability:
Optional 19-inch Rack Ears Available
Dimensions (W x D x H):
432.0 x 362.0 x 91.0 mm
Net Hardware Weight:
5.8 kg
