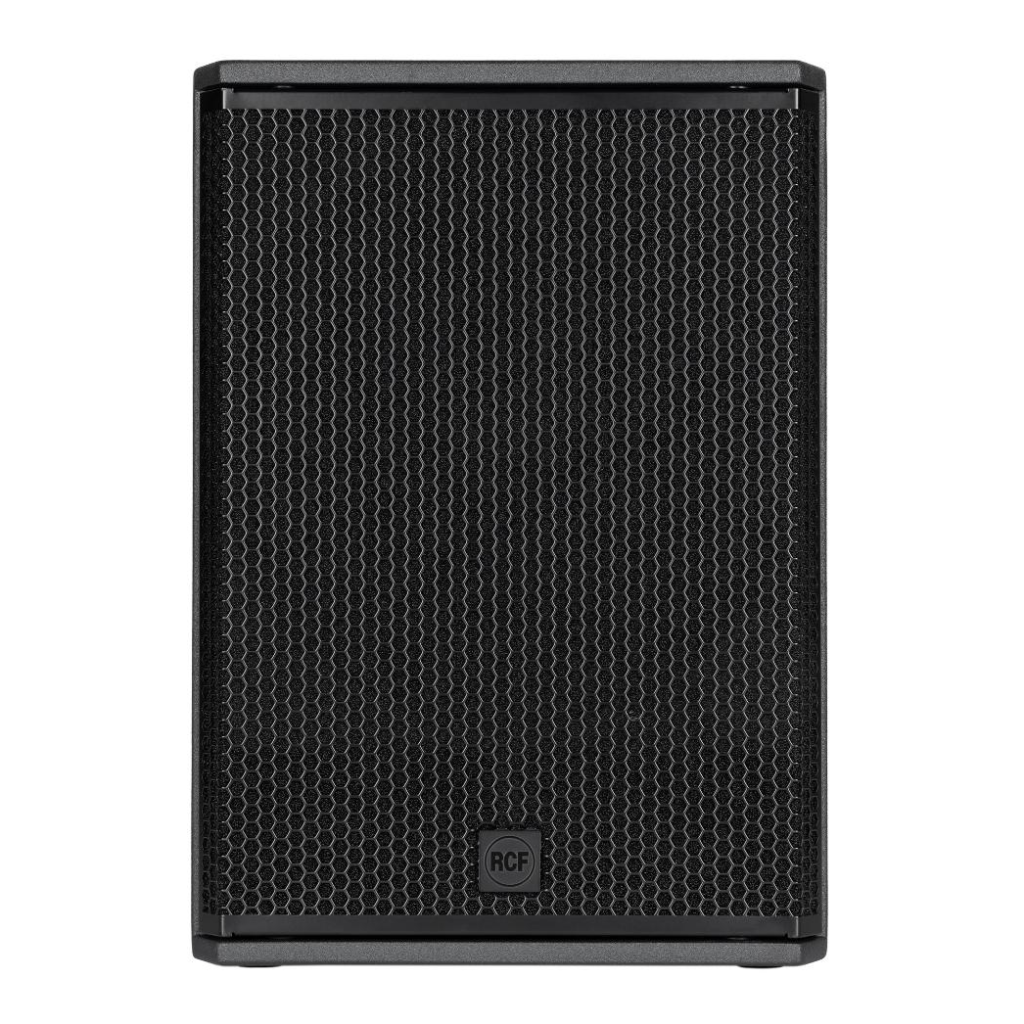

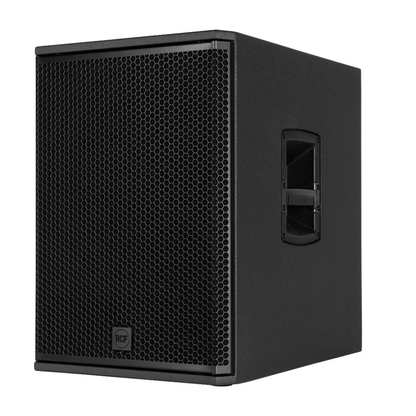

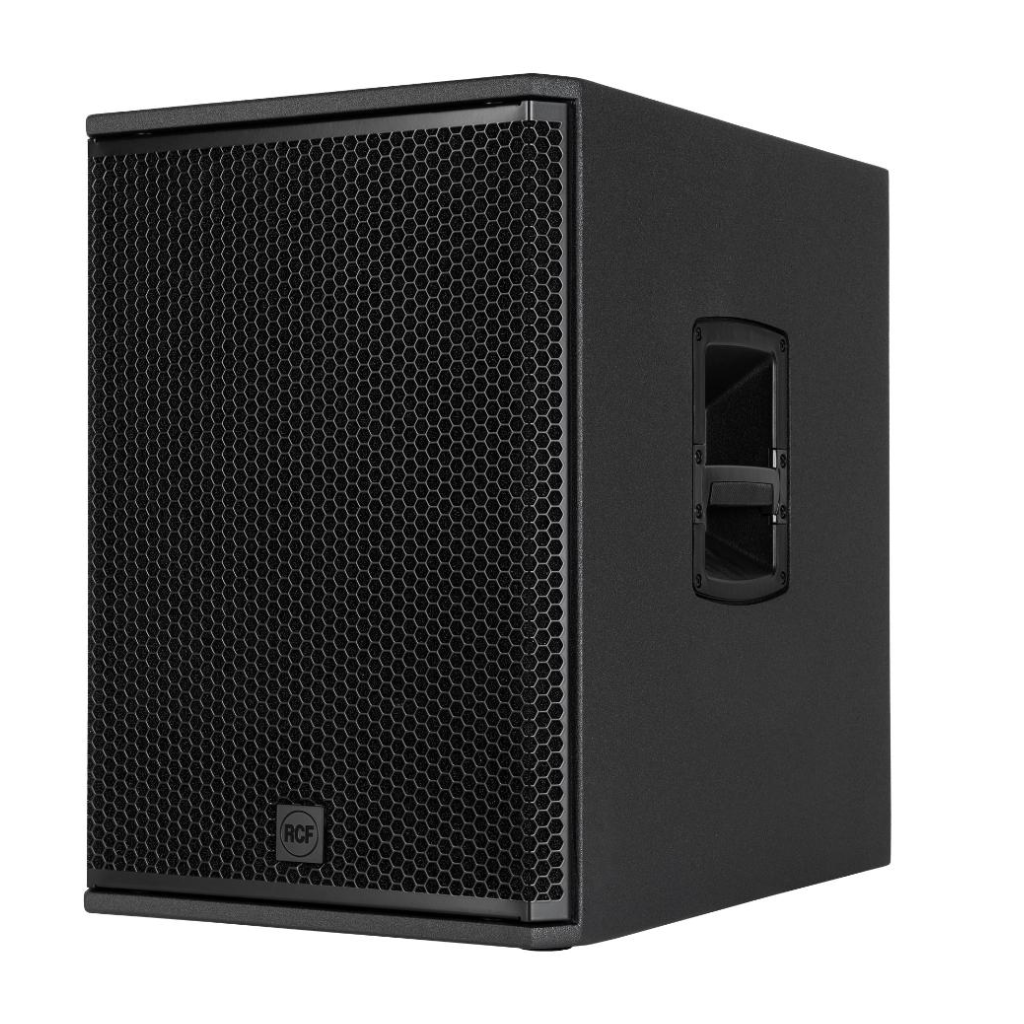

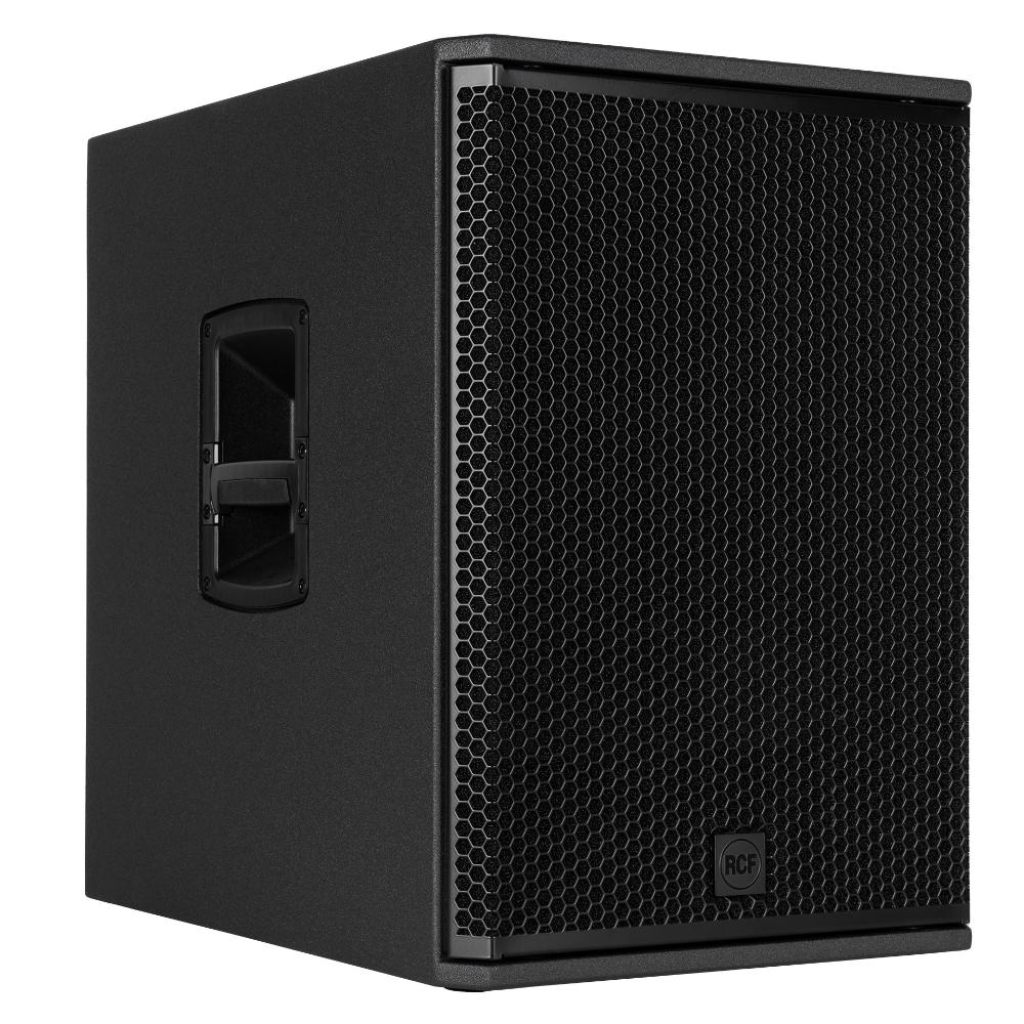

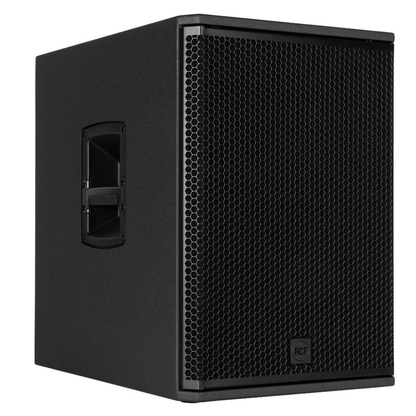

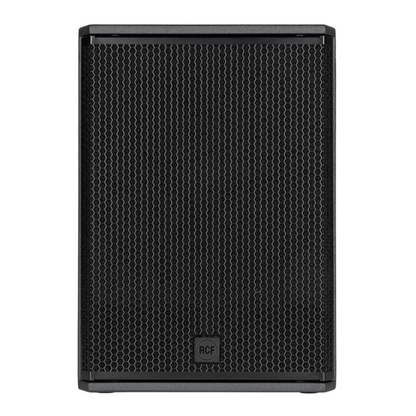

RCF SUB 15-AX PROFESSIONAL ACTIVE 15" SUBWOOFER

RCF SUB 15-AX PROFESSIONAL ACTIVE 15" SUBWOOFER

SAR 7,799
SAR 6,781.74 (Excl. VAT)
Taxes included. Shipping calculated at checkout.
  • DHL Express: 1–3 working days
  • Delivery to Riyadh within 23 hours. Other cities from 3 to 7 days maximum.
  • Secure Payment
View full details

Product Highlights

Elevate your low-end reinforcement with the brain and brawn of the RCF SUB 15-AX professional active subwoofer. Delivering a crushing 2200 watts of Class D bi-amplified power, this high-performance bass-reflex machine drives a custom 15-inch woofer with a 3-inch voice coil to anchor a massive 133 dB max SPL down to 35 Hz. Tailored for modern mobile performers, DJs, and sound engineers, the SUB 15-AX integrates a sophisticated internal DSP matrix managed via a 2.4-inch color touchscreen or wirelessly over Bluetooth using the LiveRemote app. With factory-aligned crossover presets for RCF speakers, built-in cardioid array routines, and an 8-band parametric EQ running alongside robust Powercon True1 TOP power hookups, it stands as the ultimate tour-hardened low-frequency command center.

Product Features

  • Massive 2200W Class D Amplification: Packs an ultra-efficient 2200-watt peak (1100W RMS) digital amplifier that manages intense sound pressure levels up to 133 dB with rapid transient response and zero fan noise.

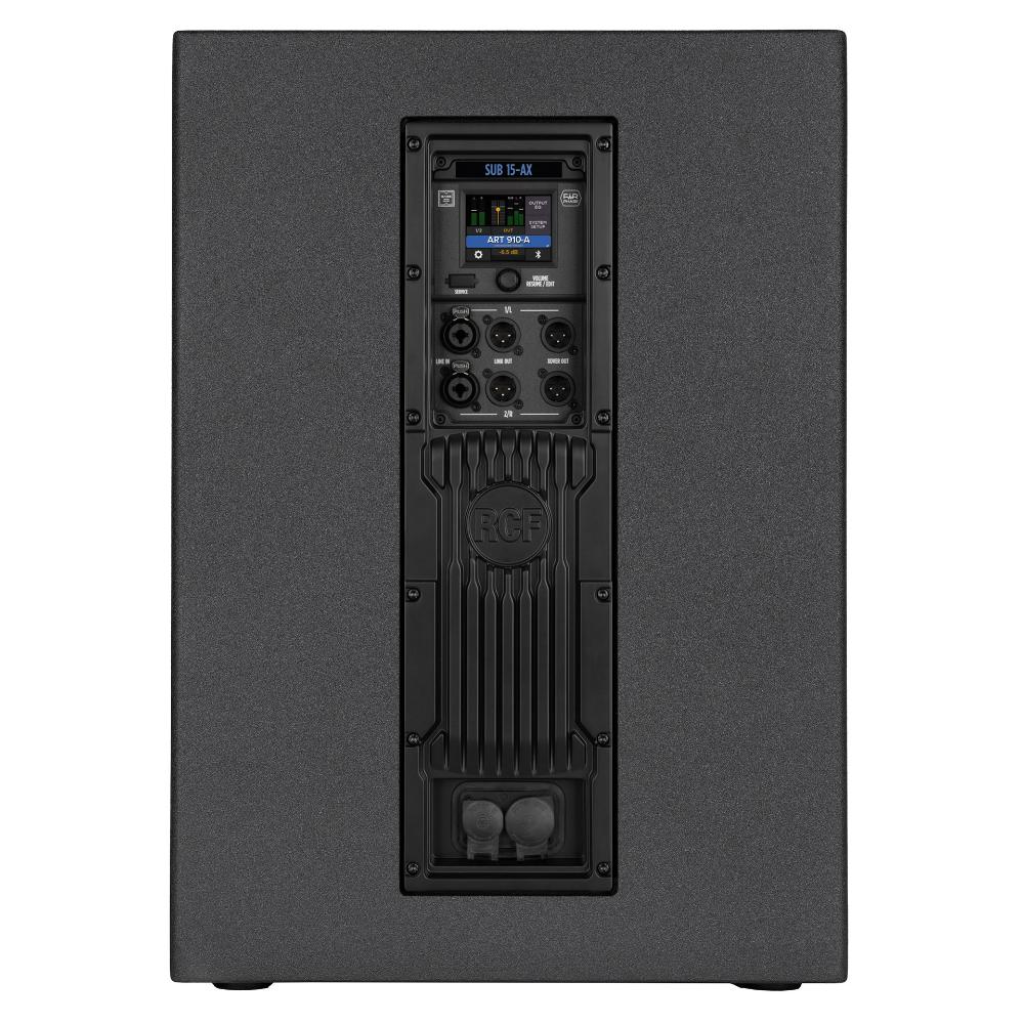

  • Onboard Touchscreen DSP Control: Outfitted with a rear-panel 2.4-inch color touchscreen and rotary encoder, giving you instant hardware access to an 8-band parametric EQ, up to 45 meters of speaker delay, and editable system snapshots.
  • Smart LiveRemote App Architecture: Features integrated Bluetooth connectivity to pair with the RCF LiveRemote app for iOS and Android, allowing you to fine-tune sub parameters, delay matrixes, and levels wirelessly from anywhere in the venue.
  • Advanced Bass Motion Control (BMC): Implements RCF's intelligent woofer excursion algorithm to safeguard the heavy-duty 15-inch transducer, providing deep, uncolored low end down to 35 Hz without bottoming out or distorting.
  • Tour-Grade Polyurea Coated Plywood: Built from rugged multi-ply hardwood sealed in an impenetrable, scratch-resistant polyurea coating, completed with heavy-duty steel grilles and IP-rated Powercon True1 TOP power connections.

Specifications

Product Model:
RCF SUB 15-AX
Speaker Type:
Professional Active DSP Subwoofer
Enclosure Architecture:
Bass-Reflex High-Efficiency Design
Amplifier Configuration:
Class D Digital Power Matrix
Total Power Output:
2200 Watts Peak, 1100 Watts RMS
Low-Frequency Transducer:
15-inch Woofer with a 3.0-inch Voice Coil
Frequency Response:
35 Hz to 120 Hz
Maximum Peak SPL:
133 dB (at 1 meter)
Audio Input Connectors:
2x Combo XLR / 1/4" TRS Balanced Jacks
Audio Output Connectors:
2x XLR Male Link Outputs, 2x XLR Male Crossover/High-Pass Outputs
Hardware Control Interface:
2.4-inch Color Touchscreen Panel with Rotary Push Encoder
Wireless Integration:
Bluetooth Remote Control via RCF LiveRemote App (iOS/Android)
Onboard DSP Capabilities:
8-Band Parametric EQ, Alignment Delay (Up to 45m / 134ms), 8 Recallable Snapshots, Cardioid Routing Layout, 2.1 System L/R Balance
Acoustic Transducer DSP:
Bass Motion Control (BMC) Excursion Management, Extension of FiRPHASE
Power Input/Output:
1x Powercon True1 TOP Input, 1x Powercon True1 TOP Output (Sealed AC)
Cabinet Enclosure Material:
Multi-Ply Birch Hardwood
Exterior Finish Coating:
Ultra-Durable Black Polyurea Paint
Mounting Hardware:
1x Top M20 Threaded Pole Mount Socket
Dimensions (H x W x D):
23.23" x 16.54" x 23.23" (590 mm x 420 mm x 590 mm)
Weight:
69.23 lbs (31.4 kg)
